Power supplies - Switching power supply units 230V AC

NG400501

NG400501
List price
50,70 €
amount price discount
1 50,70 € –
5 49,18 € 3% / 1,52 €
10 48,17 € 5% / 2,54 €
20 46,64 € 8% / 4,06 €
50 44,62 € 12% / 6,08 €
Available
DC power supply, 1-phase, 125x114x40mm, 24-28V, 5A, 90-264V AC 50Hz, 90-264V AC 60Hz, 127-370V DC, screw connection, IP20, aluminum, stabilized, pulsed output voltage

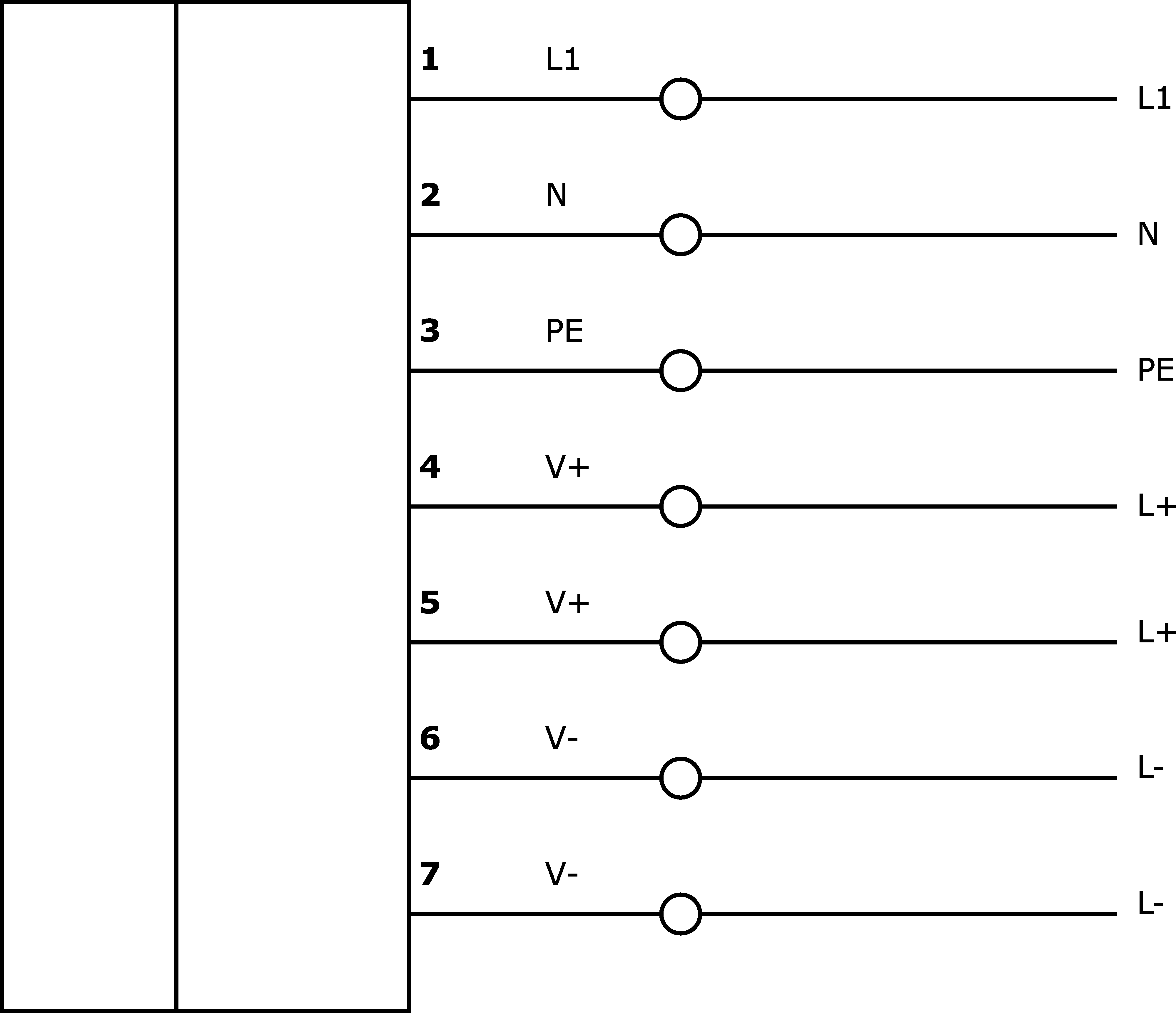

circuit diagram
dimensional drawing
3D model
Compare

Power supplies - Switching power supply units 230V AC

Pulsed power supply units are used to supply electrical systems or system parts with a stabilized DC voltage. Due to the lower copper losses, pulsed power supply units have a significantly higher efficiency than mains transformers in the lower power range. They can also be designed to be more compact and lighter than conventional linear regulated power supply units, which contain a heavy transformer with an iron core and cause additional losses in the linear regulator.

Electrical properties

Type of electrical connection
Clamped terminal connection
Output voltage
24 - 28V
Operating frequency
47 - 63Hz
Setting procedure
Potentiometer
Power
120W
Max. input current
1.3A
Residual ripple
1%
Ampacity
5A
Output functions
Switching point
Type of voltage stabilization
Clocked
Display
LED display

Mechanical properties

Width
40mm
Weight
600g
Height
125.2mm
Length
113.5mm
Storage temperature
-40 - 85°C
Mounting method
Top hat rail
Degree of protection (IP)
IP20
Housing material
Aluminum

Other properties

Relative air humidity (non-condensing)
10 - 95%
Ambient temperature
-20 - 70°C
Classification Class
eClass-7.0 27049002
eClass-7.1 27049002
eClass-8.0 27049002
eClass-9.0 27040701
eClass-9.1 27040701
ETIM-6.0 EC002540
ETIM-7.0 EC002540
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 400 power supply units
packaging dimensions 140 x 60 x 140mm
gross weight 587g
13,13kg CO₂e
Customs tariff number 85044083
WEEE number 40951076
