Power supplies - Switching power supply units 230V AC

NG530002

NG530002
List price
159,30 €
amount price discount
1 159,30 € –
5 154,52 € 3% / 4,78 €
10 151,34 € 5% / 7,97 €
20 146,56 € 8% / 12,74 €
50 140,18 € 12% / 19,12 €
Available
DC power supply, single-phase, 99x114x22mm, 24V, 0.1A, Number of relay outputs 2, 100-264V AC 50Hz, 100-264V AC 60Hz, Screw connection, IP20, Plastic, Stabilized, Output voltage, pulsed

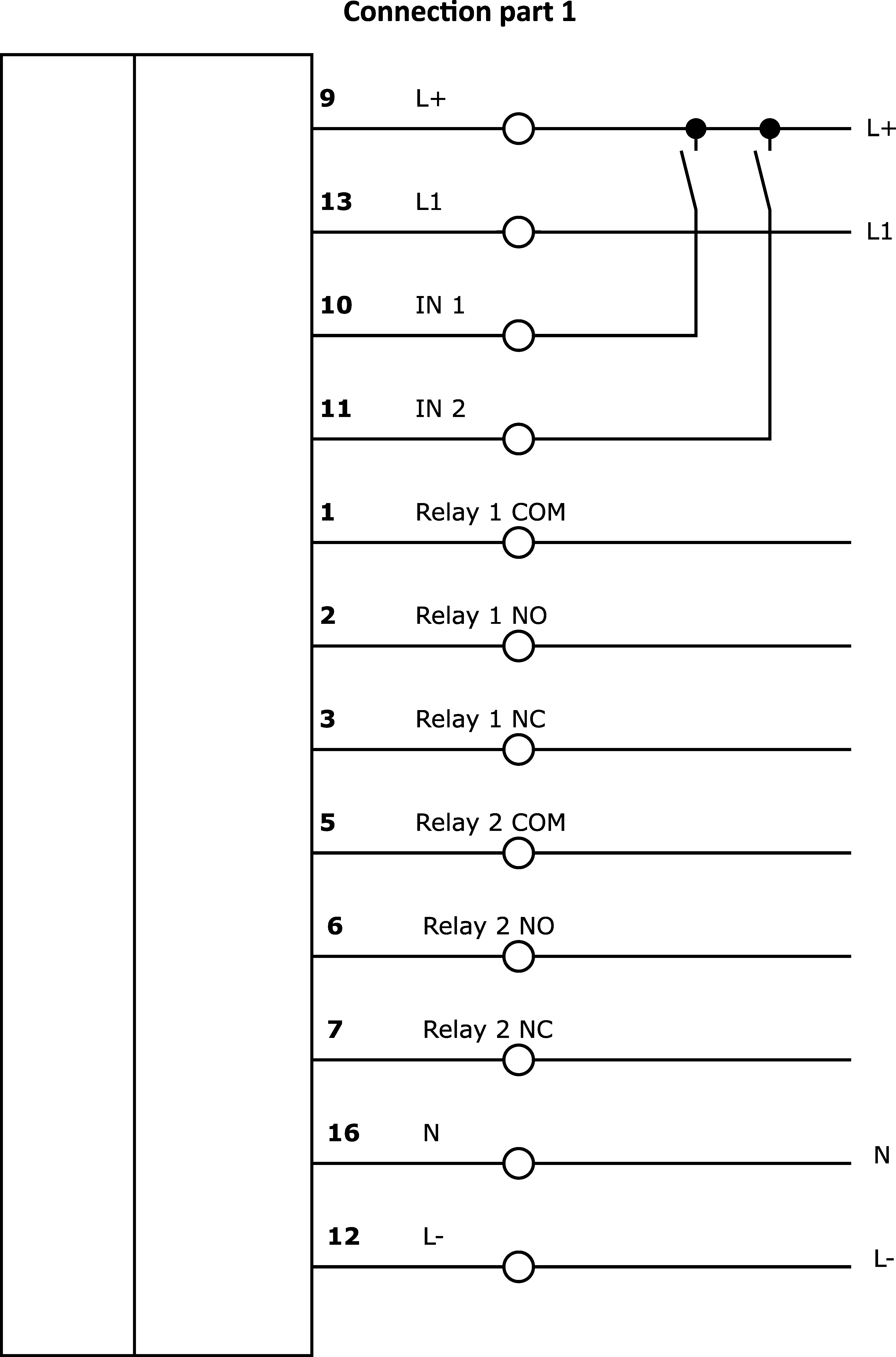

circuit diagram
dimensional drawing
3D model
Compare

Power supplies - Switching power supply units 230V AC

Pulsed power supplies are used to supply electrical systems or system parts with a stabilized DC voltage. Due to the lower copper losses, pulsed power supplies in the lower power range are considerably more efficient than power transformers. Furthermore, they are more compact and are lighter weight than conventional, linear regulated power supplies, which contain a heavy transformer with iron core and cause additional losses in the linear regulator.

Electrical properties

Number of relay outputs
2
Type of switching function
Change-over contact (NO/NC)
Type of electrical connection
Clamped terminal connection
Output voltage
24V
Rated switching current
6,000mA
Operating frequency
47 - 63Hz
Power
2.4W
Max. input current
0.05A
Residual ripple
1%
Ampacity
0.1A
Type of voltage stabilization
Clocked
Display
LED display

Mechanical properties

Width
22.5mm
Height
99mm
Length
114.5mm
Storage temperature
50°C
Mounting method
Top hat rail
Degree of protection (IP)
IP20
Housing material
Plastic

Other properties

Relative air humidity (non-condensing)
20 - 90%
Ambient temperature
50°C
Classification Class
eClass-7.0 27049002
eClass-7.1 27049002
eClass-8.0 27049002
eClass-9.0 27040701
eClass-9.1 27040701
ETIM-6.0 EC002540
ETIM-7.0 EC002540
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 400 power supply units
packaging dimensions 124 x 28 x 149mm
gross weight 175g
3,5kg CO₂e
Customs tariff number 85044083
WEEE number 40951076
