Measuring transducer - Current transformer
NZ80N010
| amount | price | discount |
|---|---|---|
| 1 | 281,10 € | – |
| 5 | 272,67 € | 3% / 8,43 € |
| 10 | 267,05 € | 5% / 14,06 € |
| 20 | 258,61 € | 8% / 22,49 € |
| 50 | 247,37 € | 12% / 33,73 € |
On demand
Current transformer, 80x118x50mm, primary 400A, 0-10V/0-20mA, terminals, IP40, plastic
including Fixing material
Compare
Measuring transducer - Current transformer
Current transformer with integrated measuring transformer. Output signal 0-10V or 0-20mA
Electrical properties
- Type of analog output
- 0 - 10V, 0 - 20mA
- Type of electrical connection
- Clamped terminal connection
- Operating frequency
- 50 - 60Hz
- Primary rated current In
- 400A
- Residual ripple
- 1%
- Measuring range current
- 60 - 480A

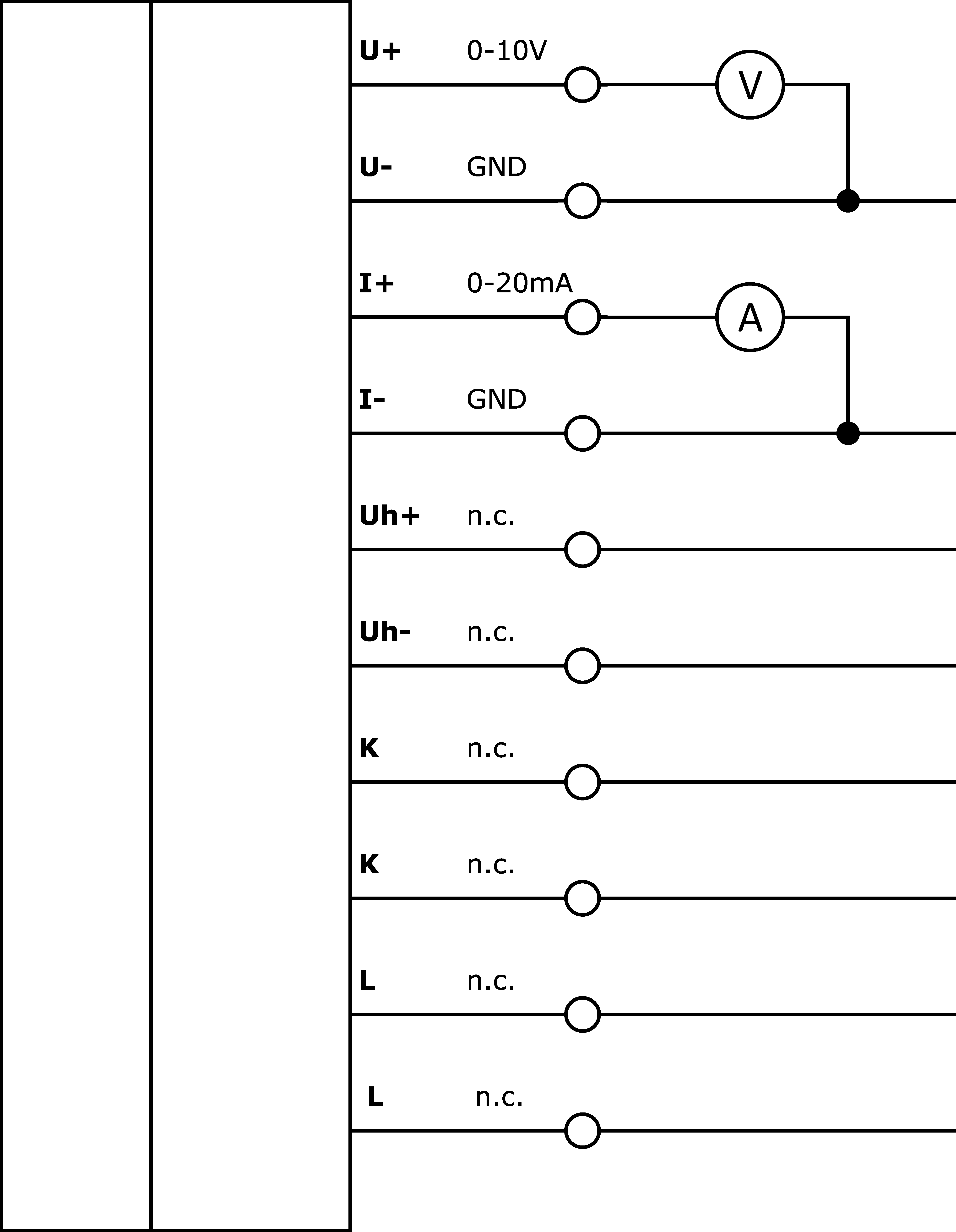

- Electrical connection
Mechanical properties
- Width
- 80mm
- Height
- 117.8mm
- Length
- 50mm
- Mounting method
- Top hat rail
- Degree of protection (IP)
- IP40
- Housing material
- Plastic
- dimensions
Other properties
- Ambient temperature
- -5 - 40°C
Datasheets
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 478 KB
-
pdfMaterial compliancePDF-file, 478 KB
-
pdfEU declaration of conformityPDF-file, 405 KB
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27210902 |
| eClass-7.1 | 27210902 |
| eClass-8.0 | 27210902 |
| eClass-9.0 | 27210902 |
| eClass-9.1 | 27210902 |
| ETIM-6.0 | EC002048 |
| ETIM-7.0 | EC002048 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 400 power supply units |
| packaging dimensions | |
| 2,72kg CO₂e | |
| Customs tariff number | 85043129 |
| WEEE number | 40951076 |
