OE110100
amount | price | discount |
---|---|---|
1 | 213,70 € | – |
5 | 207,29 € | 3% / 6,41 € |
10 | 203,02 € | 5% / 10,69 € |
20 | 196,60 € | 8% / 17,10 € |
50 | 188,06 € | 12% / 25,64 € |
We would be pleased to advise you!
Optical sensors - Through-beam sensors receivers
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 2.5ms
- Type of switching function
- Normally open contact (NO)
- Type of electrical connection
- Cable
- Type of switching output
- PNP
- Rated switching current
- 100mA
- Short-circuit protection
- Yes
- No-load current
- 24mA
- No-load current, receiver
- 24mA
- Number of pins
- 3
- Switching distance
- 0 - 2,500mm
- Switching frequency
- 200Hz
- Voltage drop
- 2V
- Scanning function
- Dark switching
- Reverse polarity protection
- Yes
- Decay time
- 2.5ms
- Operating voltage (DC)
- 10 - 30V
- Display
- LED display
Mechanical properties
- 0.25mm²
- Design
- Cuboid
- Width
- 8mm
- Height
- 58mm
- Cable length
- 2m
- Length
- 12mm
- Surface
- teflon coated
- Degree of protection (IP)
- IP65
- Active area material of sensor
- Plastic (PC)
- Housing material
- Aluminum
- Material of cable sheath
- Plastic (PVC)
Optical properties
- Light source
- Infrared light
- Light beam form
- Point
- Wavelength of the sensor
- 880nm
Other properties
- Scope of delivery
- Receiver
- Ambient temperature
- -25 - 65°C

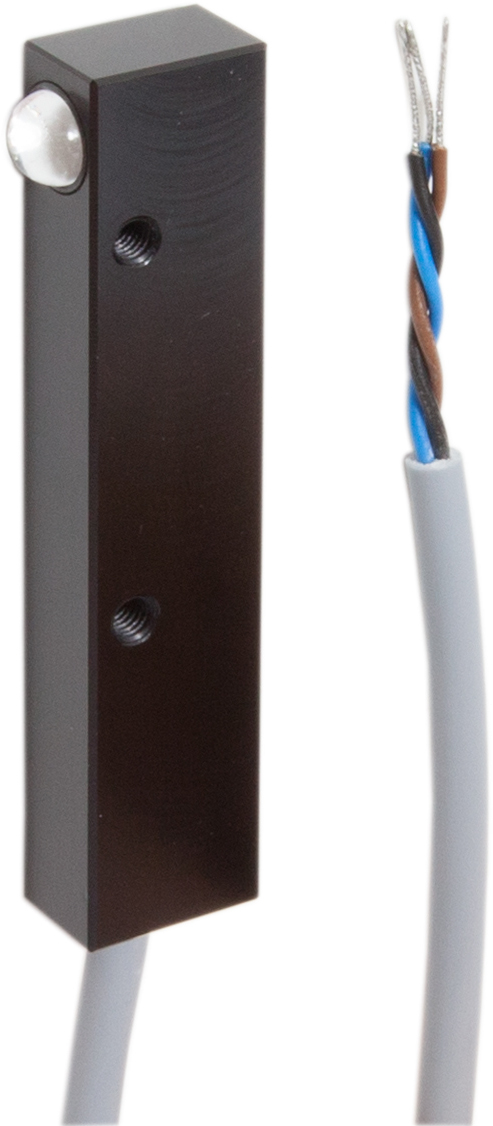

- Through-beam sensor receiver
Sheath
Mounting system for AY000119
Fixing material design 11
Accessories OE11
Cable connectors M8 3-pin field-attachable
Datasheets

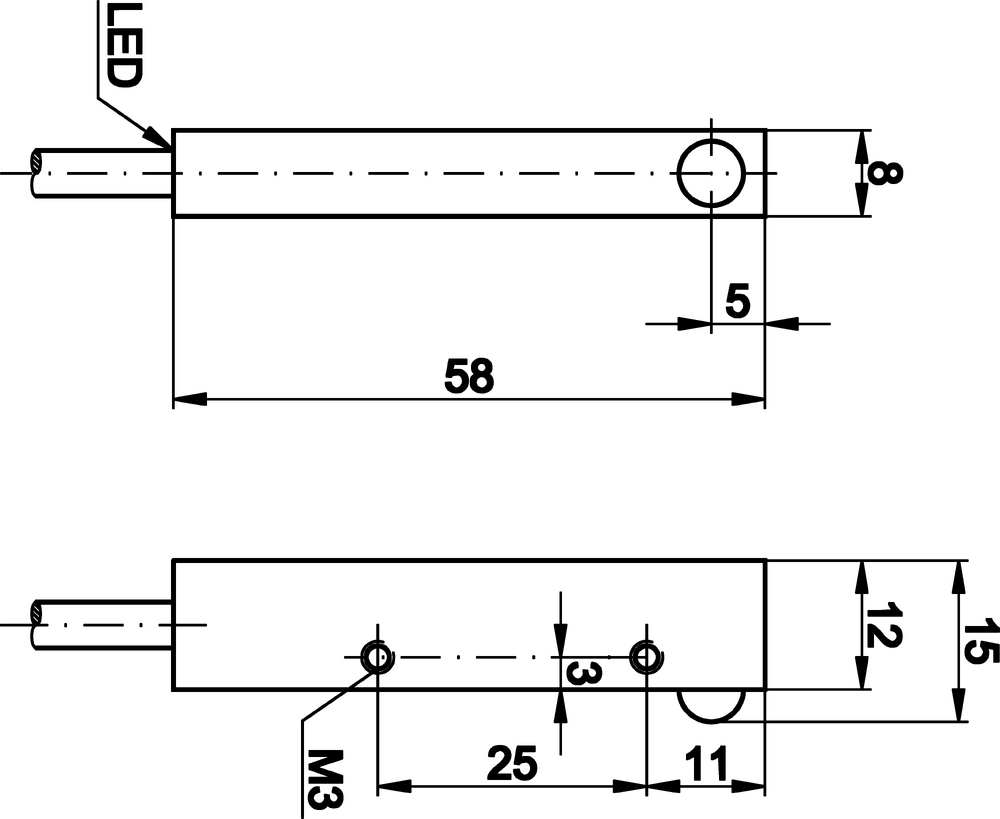

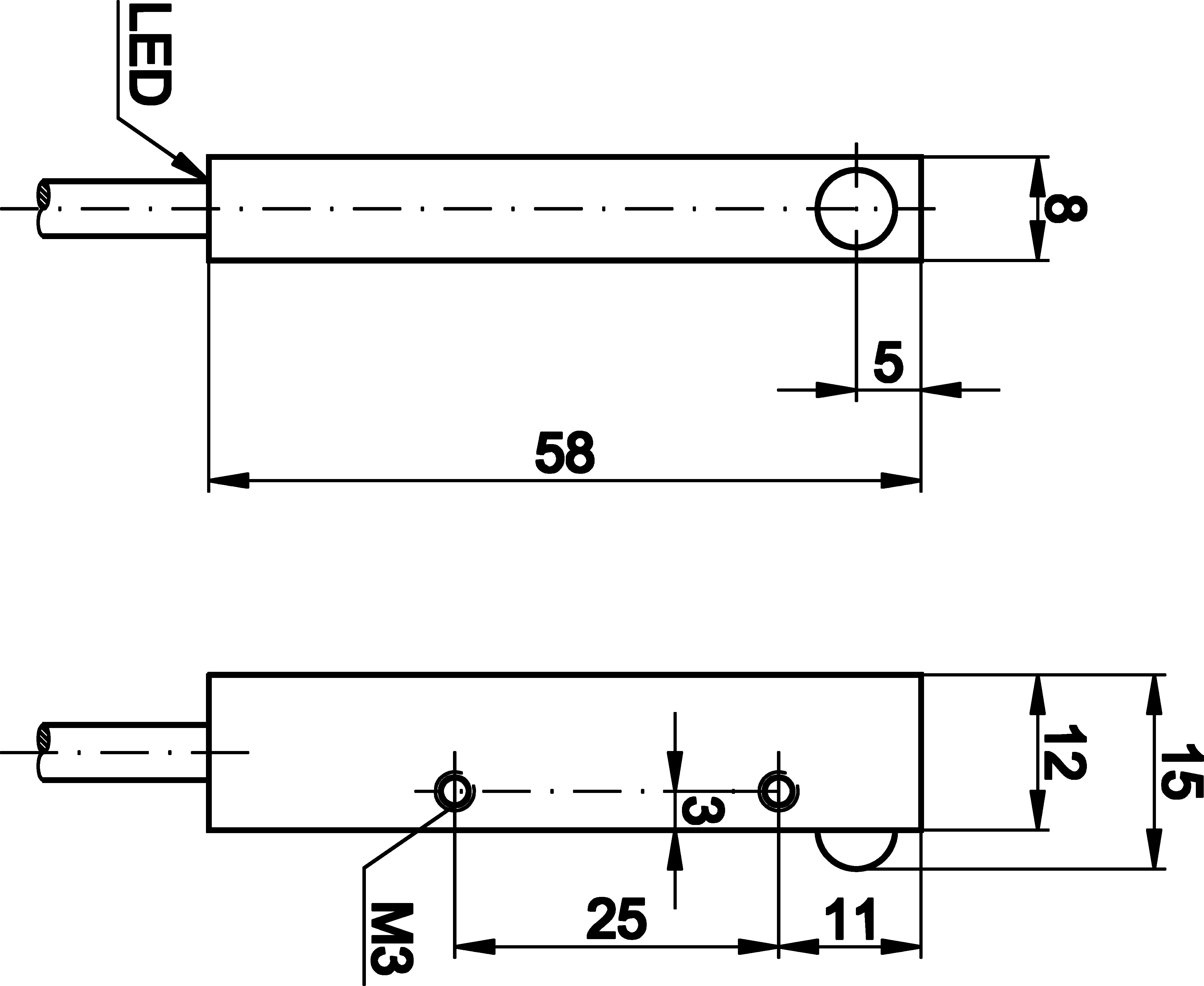

Drawings
-
jpgBlueprintJPG-file, 272 KB
-
dwg2DDWG-file, 70 KB
-
stp3DSTP-file, 16 KB
-
pngWiring diagram - internetPNG-file, 5.3 KB
Product Compliance
-
pdfUL declaration of conformityPDF-file, 98 KB
-
pdfUKCA declaration of conformityPDF-file, 474 KB
-
pdfMaterial compliancePDF-file, 412 KB
-
pdfCE declaration of conformityPDF-file, 255 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
Links
Classification | Class |
---|---|
eClass-7.0 | 27270901 |
eClass-7.1 | 27270901 |
eClass-8.0 | 27270901 |
eClass-9.0 | 27270901 |
eClass-9.1 | 27270901 |
ETIM-6.0 | EC002716 |
ETIM-7.0 | EC002716 |
Property | Value |
---|---|
RoHS‑compliant | Yes |
Reach-compliant | Yes |
OzDS-compliant | Yes |
POP-compliant | Yes |
IPF Product Group | 100 optical sensors |
packaging dimensions | 77 x 25 x 123mm |
gross weight | 50g |
Customs tariff number | 85365019 |
WEEE number | 40951076 |
