High performance light barriers - Receiver unamplified
OE126020
| amount | price | discount |
|---|---|---|
| 1 | 106,40 € | – |
| 5 | 103,21 € | 3% / 3,19 € |
| 10 | 101,08 € | 5% / 5,32 € |
| 20 | 97,89 € | 8% / 8,51 € |
| 50 | 93,63 € | 12% / 12,77 € |
Available
High-power photoelectric sensor receiver, M12x1 55 long, standard design, connection to amplifier, M12 plug connector, IP67, stainl. steel+plastic
including Nut
Compare
High performance light barriers - Receiver unamplified
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Type of switching function
- Type of electrical connection
- Connector M12
- Number of pins
- 3
- Switching distance
- 0 - 70,000mm
- Switching frequency
- 15Hz

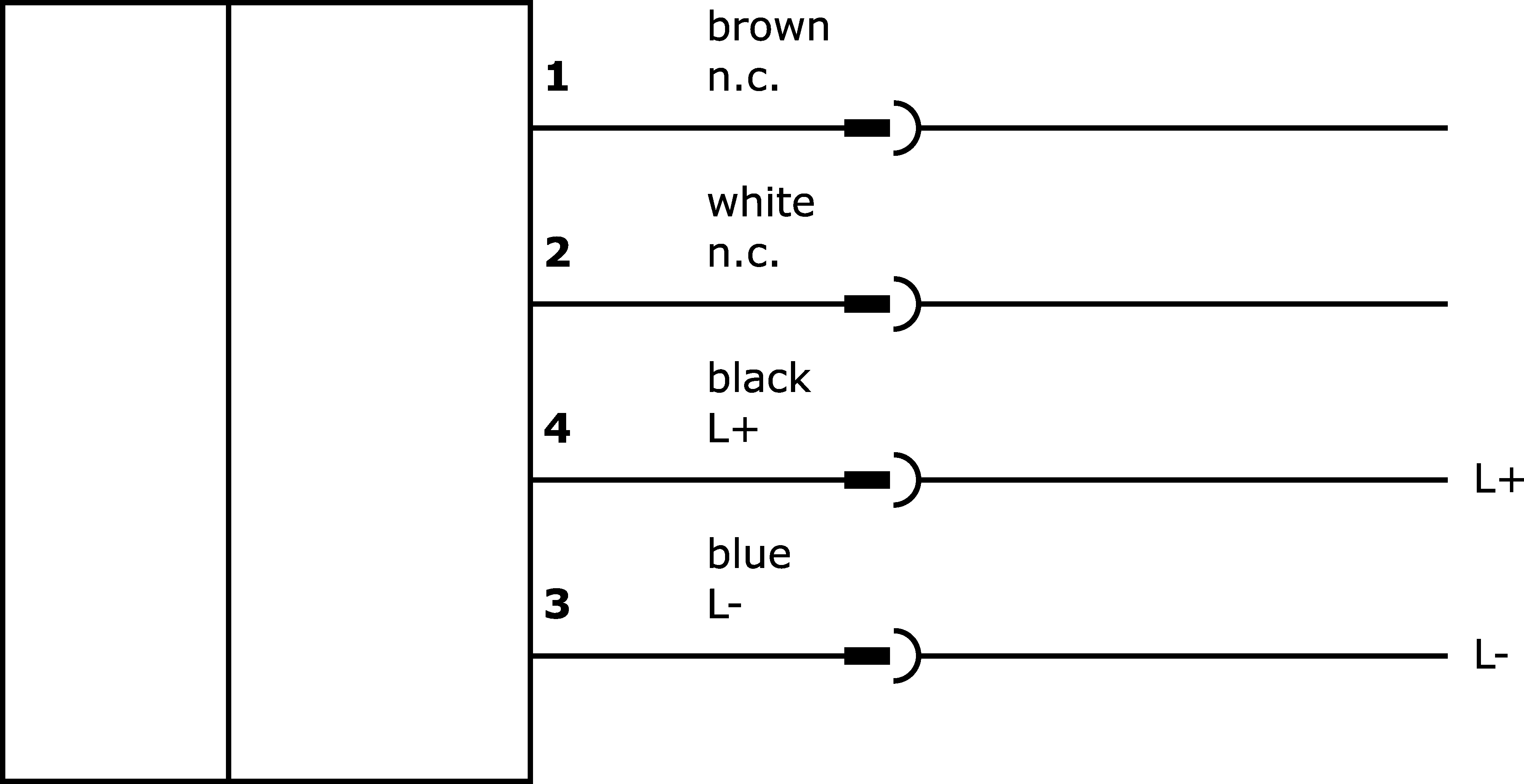

- Electrical connection
Mechanical properties
- Design
- Cylinder, screw-thread
- Thread length
- 36mm
- Thread pitch
- 1mm
- Length
- 55mm
- Storage temperature
- -40 - 80°C
- Shock resistance
- 30g
- Degree of protection (IP)
- IP67
- Vibration resistance
- 55Hz
- Active area material of sensor
- Plastic
- Housing material
- Stainless steel
- Thread dimension
- M12
- Receiver design
- Normal design
- dimensions
Optical properties
- Light source
- Infrared light
- Light beam form
- Point
- Angle of beam spread
- 25°
- Wavelength of the sensor
- 880nm
Other properties
- Ambient temperature
- -25 - 60°C
You can find accessories for OE126020
in these product groups:
Assembly
Fixing material design M12
Scarce
Available
Available
On demand
Mounting system for AY000115
Available
Mounting system, cylindrical, M12
Available
Attachments
Accessories OS126
Apertures for light barriers, design 12
On demand
Connection technology
Cable sockets M12 3-wire
Cable sockets M12 4-pin field attachable
Cable sockets M12 5-pin field attachable
Fiber optics
Glass fiber optic through-beam sensors M12
Transmitters / receivers
High performance light barriers, receiver OE12
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 478 KB
-
pdfEU declaration of conformityPDF-file, 252 KB
Product flyers
-
pdfFlyer high performance light barriersPDF-file, 3.4 MB
-
pdfProducts that inspirePDF-file, 8.5 MB
Whitepapers
-
pdfWhitepaper sensors for harsh enviromentsPDF-file, 1.6 MB
-
pdfWhat if it gets very special?PDF-file, 610 KB
Application examples
-
pdfWith light barriers on a speedy slidePDF-file, 811 KB
-
pdfA clear view even in a rough environmentPDF-file, 839 KB
-
pdfHigh response sensitivity and contamination compensationPDF-file, 369 KB
-
pdfWhat if it gets very special?PDF-file, 665 KB
-
pdfFASTER, MORE EFFICIENT, MORE ECONOMICALPDF-file, 1.0 MB
| Classification | Class |
|---|---|
| eClass-7.0 | 27270901 |
| eClass-7.1 | 27270901 |
| eClass-8.0 | 27270901 |
| eClass-9.0 | 27270901 |
| eClass-9.1 | 27270901 |
| ETIM-6.0 | EC002716 |
| ETIM-7.0 | EC002716 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 101 high performance through-beam sensors and amplifiers |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 40g |
| 0,18kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
