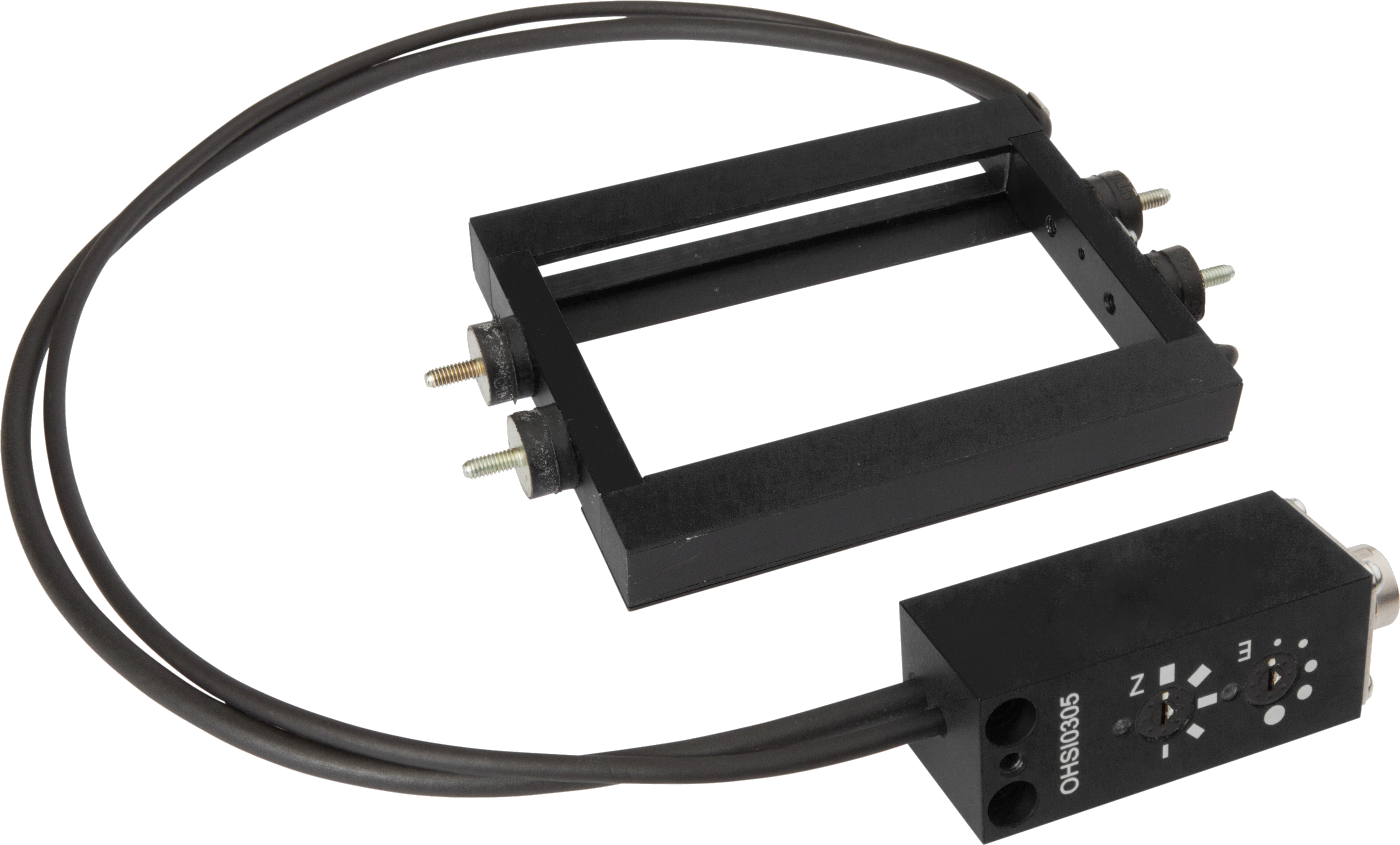

Frame and ring light barriers operate according to the principle of a through-beam sensor. Within the housing there is a variety of transmitter and receiver elements that form a light curtain and thus detect various objects. Application examples for these systems are ejection control of presses, presence monitoring or length measurements of wires or tubes.
| Classification | Class |
|---|---|
| eClass-7.0 | 27270911 |
| eClass-7.1 | 27270911 |
| eClass-8.0 | 27270911 |
| eClass-9.0 | 27270911 |
| eClass-9.1 | 27270911 |
| ETIM-6.0 | EC002721 |
| ETIM-7.0 | EC002721 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 705 special devices (SI) |
| packaging dimensions | 138 x 95 x 210mm |
| gross weight | 406g |
| 2,45kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
