Temperature sensors - contactless measurement (infrared)

OI12C758

List price

253,30 €

amount	price	discount
1	253,30 €	–
5	245,70 €	3% / 7,60 €
10	240,64 €	5% / 12,67 €
20	233,04 €	8% / 20,26 €
50	222,90 €	12% / 30,40 €

On demand

sensor optical, infrared, M12x1, -40-1030°C, 5-30V DC, PNP NO (NO), 0V … 5V / 0V … 10V, Clamp 1m, IP63, Cable length of measuring head 1m

including Nut

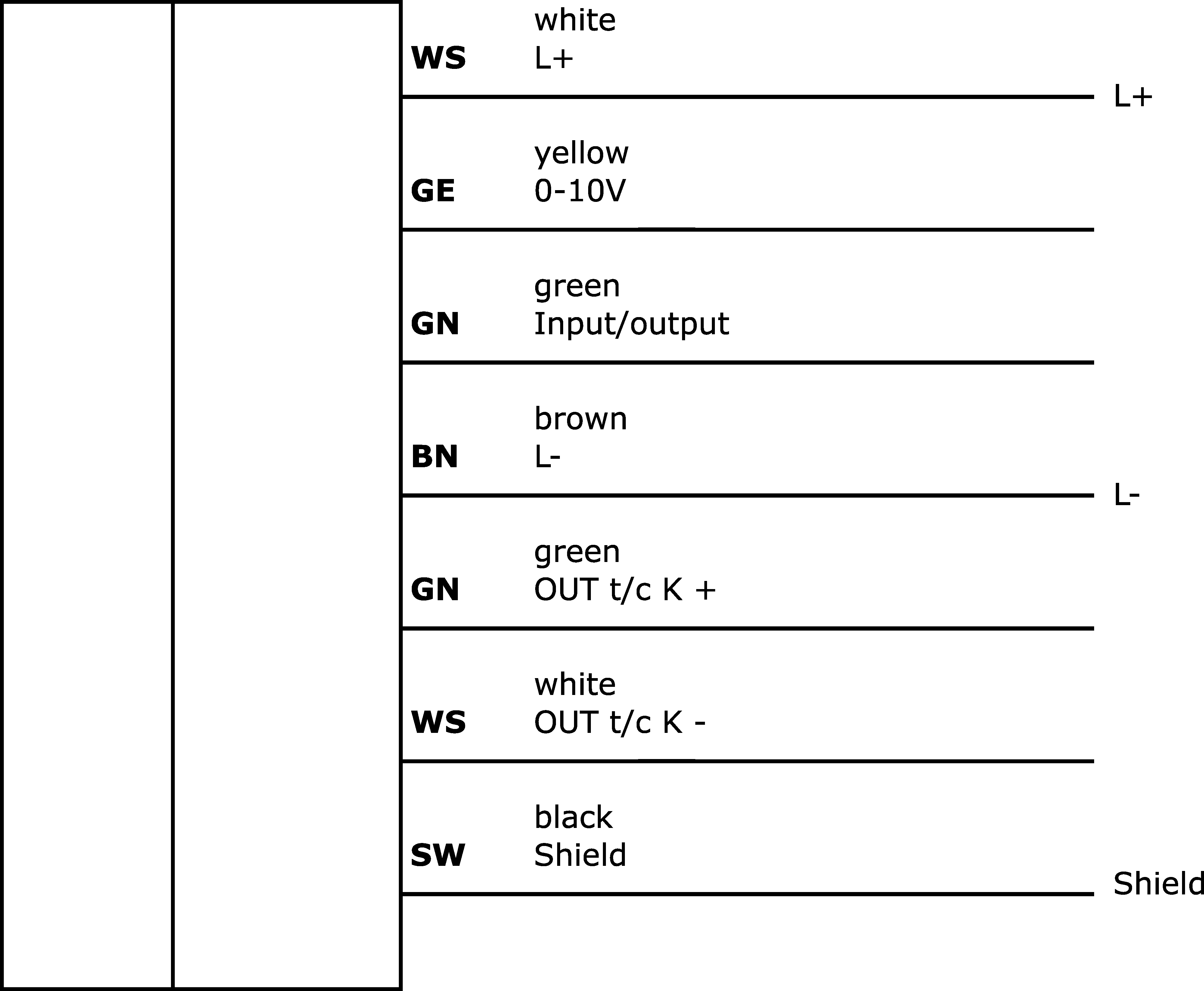

circuit diagram

dimensional drawing

3D model

Compare

Temperature sensors - contactless measurement (infrared)

Electrical properties

Type of switching function: Normally open contact (NO)

Type of analog output: 0 - 10V, 0 - 5V

Type of electrical connection: Clamped terminal connection

Type of switching output: PNP

Setting procedure: Application software, Parameterization

No-load current: 10mA

Measuring range, temperature: -40 - 1,030°C

Supported communication interface

Output functions: Switching point

Display: LED display

Operating voltage

Electrical connection

Mechanical properties

Design: Cylinder, screw-thread

Thread length: 26mm

Thread pitch: 1mm

Cable length: 1m

Cable length of measuring head: 1m

Length: 87mm

Degree of protection (IP): IP63

Thread dimension: M12

dimensions

Optical properties

Spectral sensitivity: 8 - 14µm

Ratio (D:S): 15:1

Other properties

Ambient temperature: 80°C

You can find accessories for OI12C758 in these product groups:

Accessories and fastening elements

Assembly

Fixing material design M12

AY000025

accessories, Hexagon nut, M12x1, Wrench size 17mm, Brass Nickel-plated

2,60 €
Your price

Available

AY000032

accessories sensor, Ø12mm, Aluminum, For sensor 12mm, for Wall mounting, Screw mounting

14,50 €
Your price

Available

AY000037

accessories, Hexagon nut, M12x1, Wrench size 17mm, Stainless steel

5,00 €
Your price

Available

AY000049

accessories sensor, Ø12mm, Plastic, For sensor 12mm, for Wall mounting, Screw mounting

5,80 €
Your price

Available

AY000050

accessories sensor, Ø12mm, Plastic, For sensor 12mm, for Wall mounting, Screw mounting, With positive stop

5,80 €
Your price

Available

AY000053

accessories sensor, Fixture kit, Plastic

4,20 €
Your price

Scarce

AY000054

accessories sensor, Mounting angle bracket, 61x30x40mm, Mounting material for holder, Plastic, 90°

5,10 €
Your price

Available

AY000099

accessories sensor, Mounting angle bracket, 32x23x36mm, Toothed washer for sensor, bracket, Stainless steel

7,30 €
Your price

Available

AY000115

accessories sensor, Fixture kit, Metal, ball joint

32,20 €
Your price

Available

AY000169

Accessories Sensor, mounting bracket, 36x36x30mm, V2A

5,30 €
Your price

Available

AY98C074

accessories sensor, Mounting angle bracket, Angle

92,20 €
Your price

On demand

AY98C075

accessories sensor, Mounting angle bracket, M12x1 14long, Angle

103,60 €
Your price

On demand

AY98C739

accessories sensor, Mounting angle bracket, 30x24x20mm, Angle

45,70 €
Your price

On demand

Mounting system, cylindrical, M12

AY000159

Accessories sensor, mounting tube, Ø12mm 200long, aluminum anodized/anodized

7,10 €
Your price

Available

AY000160

Accessories sensor, mounting tube, Ø12mm 500long, aluminum anodized/anodized

9,90 €
Your price

Scarce

AY000161

Accessories Sensor, foot clamp holder, Ø38mm 25 high, aluminum

21,80 €
Your price

Available

AY000162

Accessories, magnetic, Ø43mm, neodymium-iron-boron, inside thread M5, rubber

16,70 €
Your price

Available

AY000163

Accessories Sensor, clamp holder, 16x38x16mm, aluminum

9,60 €
Your price

Available

AY000164

Sensor accessories, surface-mounted terminal holder, 16x32x16mm, inside thread 6, aluminum

10,30 €
Your price

Available

AY000165

Accessories Sensor, parallel clamp holder, 16x45x16mm, aluminum

16,90 €
Your price

Available

AY000166

Accessories Sensor, cross clamp holder, 16x48x16mm, aluminum

13,50 €
Your price

Scarce

AY000167

Accessories Sensor, adjustable cross clamp holder, 20x72x20mm, aluminum

29,00 €
Your price

Available

AY000169

Accessories Sensor, mounting bracket, 36x36x30mm, V2A

5,30 €
Your price

Available

Attachments

Specific accessories

AO98C638

Accessories Optical, attachment optics, metal, glass, M12x1

85,40 €
Your price

On demand

Connection technology

Programming cable OI12C758

AO98C760

PC cable, 0.8m, Free conductor end 4pin, USB-A Male (connector) 4pin Straight

78,10 €
Your price

Scarce

Sheath

AY000141

Plastic sheath, Ø17mm, Inner diameter 10mm, -40-250°C, Glass fiber with silicone rubber, Short-term resistance to weld…

39,30 €
Your price

Available

Datasheets

pdf

Individual data sheet

PDF-file, 766 KB

Drawings

Software

zip

Software

ZIP-file, 158 MB

Product Compliance

Whitepapers

pdf

Whitepaper temperature sensors

PDF-file, 401 KB

Application examples

Classification	Class
eClass-7.0	27200211
eClass-7.1	27200211
eClass-8.0	27200211
eClass-9.0	27200211
eClass-9.1	27200211
ETIM-6.0	EC000601
ETIM-7.0	EC000601

Property	Value
RoHS‑compliant	Yes
Reach-compliant	Yes
TSCA-compliant	Yes
IPF Product Group	310 temperature sensors
packaging dimensions	124 x 28 x 149mm
gross weight	600g
	1,23kg CO₂e
Customs tariff number	90251900
WEEE number	40951076
