Temperature sensors - contactless measurement (infrared)

OI98A920

OI98A920
List price
428,50 €
On demand
sensor optical, infrared, -40-900°C, 22:1, 8-36V DC, NO (NO), 0 / 4 … 20 mA, 0 … 5 / 10 V, Clamp, IP65, V4A, Cable length of measuring head 1m

Temperature sensors - contactless measurement (infrared)

8-36VDC,ana,Opt22:1,Sensor/Verst,1m Kbl

Electrical features

Operating voltage
8 - 36V
Voltage type
DC
Switching function of the alarm output
Normally open contact (NO)
Setting procedure
Parameterization
Type of thermocouple
Simulated (J or K)
Type of alarm output
PNP
Type of switching function
Normally open contact (NO)
Temperature drift
0,05%
No-load current
100mA
Response time
150ms
Programmable via software
yes
Type of analog output
0 / 4 … 20 mA, 0 … 5 / 10 V
Interface possible
yes
Infrared measurement
yes
Data logging possible
yes

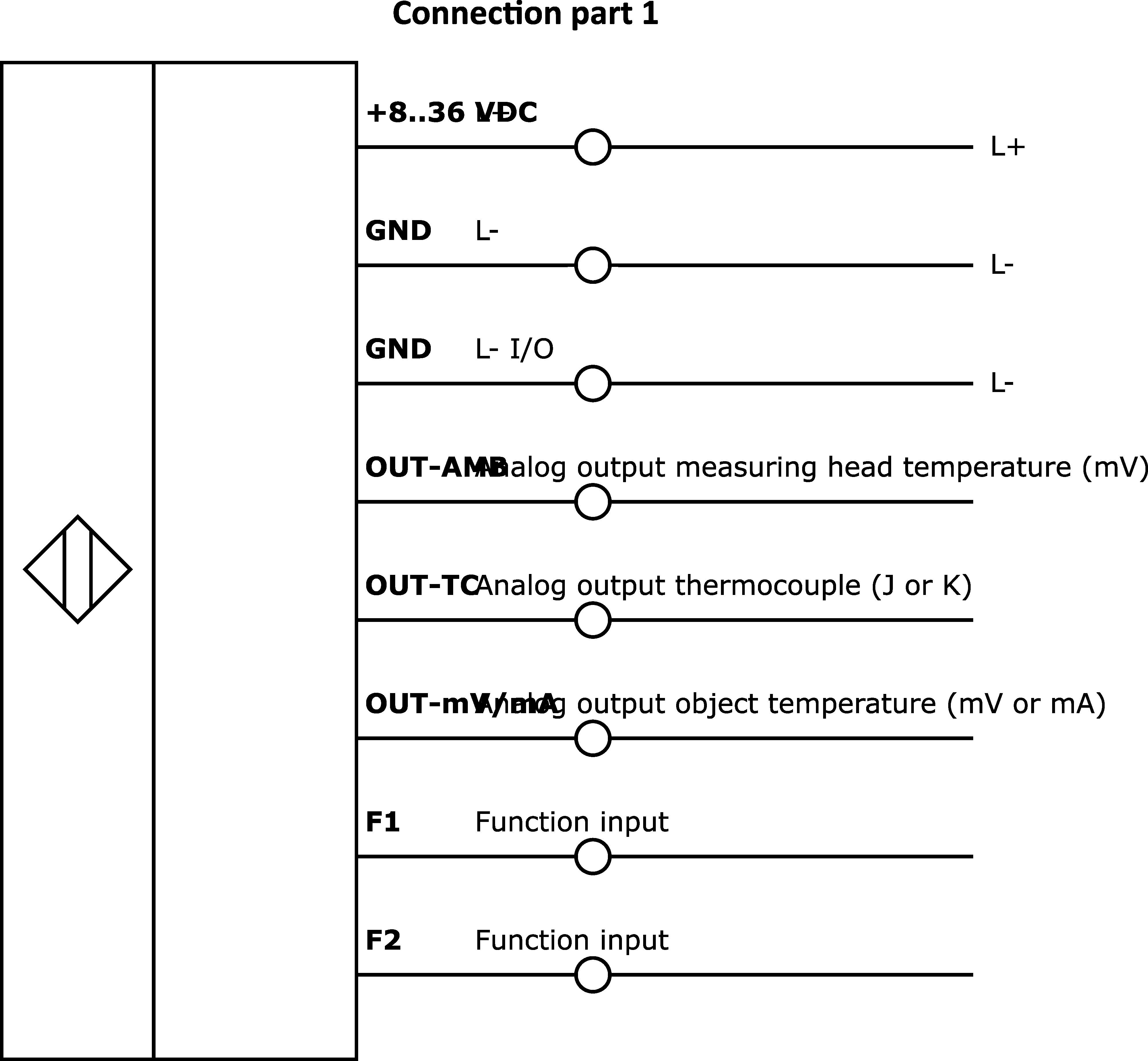

Type of electrical connection
Clamp
Measuring range
-40 - 900°C
Display
Digital
Relative repeat accuracy
0,5%
Rated switching current
50mA
Response/decay time
100ms

Mechanical features

Operating temperature of the measuring head
-20 - 180°C
Cable length of measuring head
1m
Degree of protection (IP)
IP65
Ambient temperature
65°C
Design
Cuboid
Housing material
Stainless steel 1.4571

Optical features

Spectral sensitivity
8 - 14µm
Ratio (D:S)
22:1
ClassificationClass
eClass 7.027201120
eClass 7.127201120
eClass 8.027201120
eClass 9.027201120
eClass 9.127201120
ETIM-6.0EC000601
ETIM-7.0EC000601
PropertyValue
customs tariff number90251900
IPF Product Group700 special devices
packaging dimensions145 x 75 x 215mm
OzDS-compliantyes
POP-compliantyes
