NEW IN THE PROGRAM

OI98F003

OI98F003
List price
1.208,40 €
amount price discount
1 1.208,40 € –
5 1.172,15 € 3% / 36,25 €
10 1.147,98 € 5% / 60,42 €
20 1.111,73 € 8% / 96,67 €
50 1.063,39 € 12% / 145,01 €
On demand
Sensor Optical, infrared, 150-1000°C, 300:1, 8-36V DC, NO, 0/4-20mA, 0/5-10V, terminal, IP65, V4A, cable length of sensor head 3m

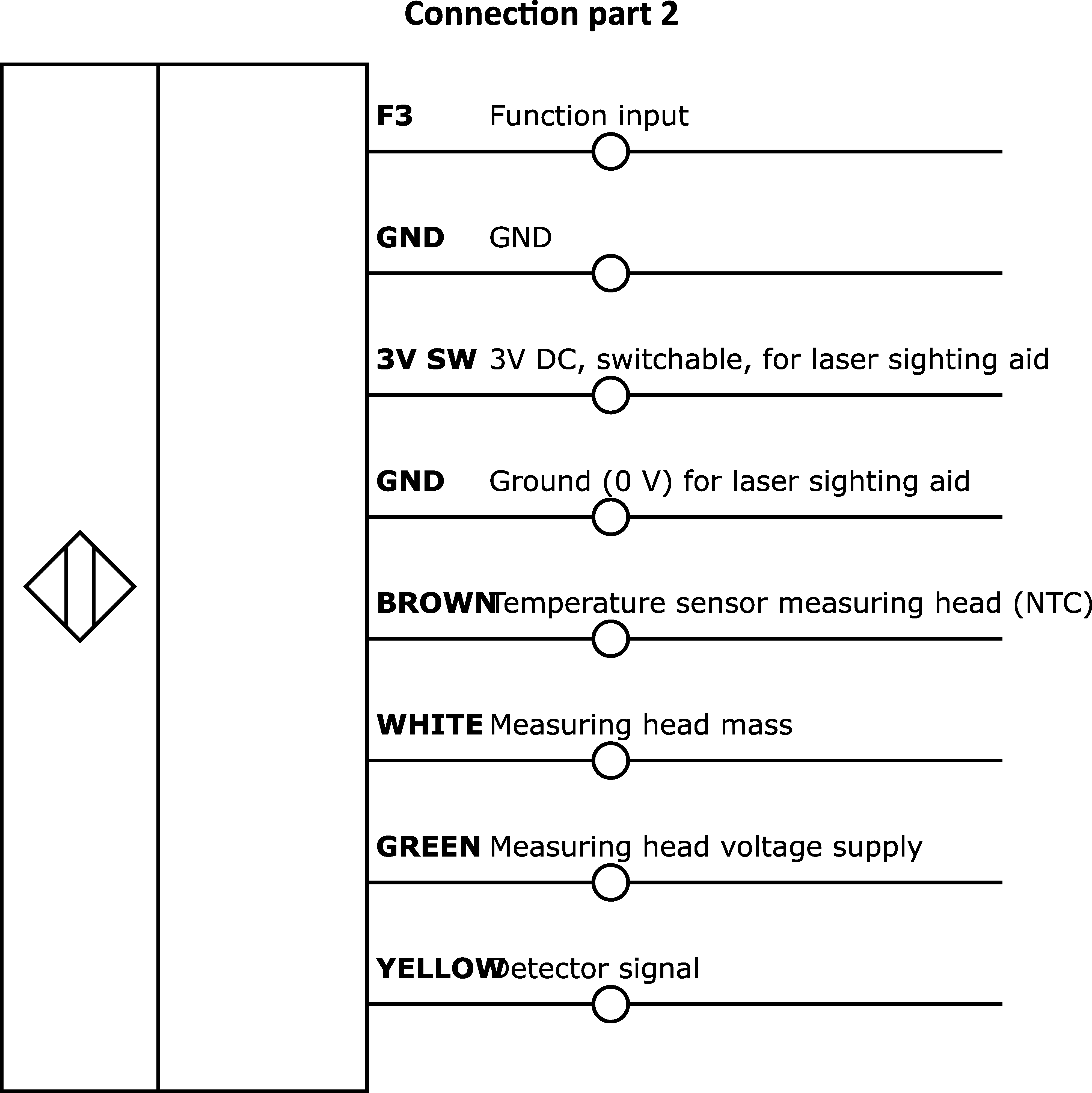

circuit diagram
dimensional drawing
Compare

Temperature sensors - contactless measurement (infrared)

Electrical properties

Response/decay time
1ms
Type of alarm output
PNP
Type of analog output
0 - 10V, 0 - 20mA, 0 - 5V, 4 - 20mA
Type of electrical connection
Clamped terminal connection
Type of thermocouple
Rated switching current
50mA
Setting procedure
Application software, Parameterization
No-load current
160mA
Measuring range, temperature
150 - 1,000°C
Supported communication interface
Output functions
Switching point
Display
LCD display, LED display
Accuracy
0.1 - 1.1
0.1 - 1.1
Operating voltage
8-36VDC
Electrical connection
Terminal connection

Mechanical properties

Line diameter
5mm
Design
Cuboid
Operating temperature of the measuring head
-20 - 85°C
Thread length
30mm
Thread pitch
1.5mm
Cable length of measuring head
3m
Length
100mm
Degree of protection (IP)
IP65
Housing material
Zinc die-cast
Sensing element material
Stainless steel
Height of the amplifier
30mm
Width of the amplifier
70mm
Thread dimension
M48
Diameter
50mm
dimensions
M48x1.5, 100mm long

Optical properties

Spectral sensitivity
2.3µm
Ratio (D:S)
300:1

Other properties

Relative air humidity (non-condensing)
10 - 95%
Ambient temperature
-20 - 85°C

Technical data

Lenght of the amplifier
120mm
Classification Class
eClass-7.0 27200211
eClass-7.1 27200211
eClass-8.0 27200211
eClass-9.0 27200211
eClass-9.1 27200211
ETIM-6.0 EC000601
ETIM-7.0 EC000601
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 310 temperature sensors
packaging dimensions 170 x 70 x 270mm
gross weight 1,392g
Customs tariff number 90251900
WEEE number 40951076
