OI98F004

OI98F004
List price
1.210,00 €
amount price discount
1 1.210,00 € –
5 1.173,70 € 3% / 36,30 €
10 1.149,50 € 5% / 60,50 €
20 1.113,20 € 8% / 96,80 €
50 1.064,80 € 12% / 145,20 €
On demand
Sensor Optical, infrared, -50-975°C, 50:1, 8-36V DC, NO, 0/4-20mA, 0/5-10V, terminal, IP65, V4A, cable length of sensor head 8m

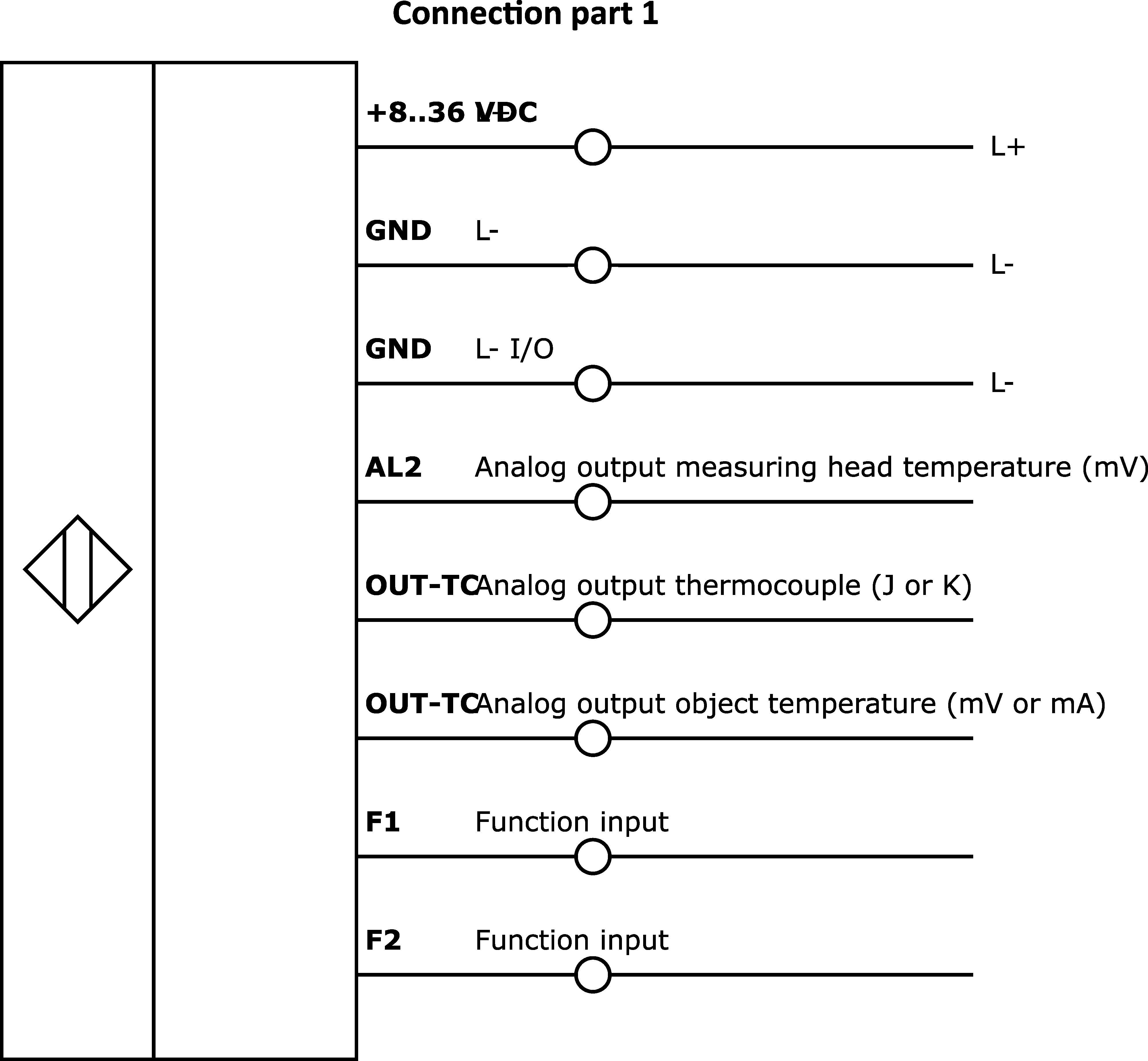

circuit diagram
3D model
Compare

Temperature sensors - contactless measurement (infrared)

Electrical properties

Response/decay time
1ms
Type of alarm output
PNP
Type of analog output
0 - 10V, 0 - 20mA, 0 - 5V, 4 - 20mA
Type of electrical connection
Clamped terminal connection
Type of thermocouple
Rated switching current
50mA
Setting procedure
Application software, Parameterization
No-load current
160mA
Measuring range, temperature
-50 - 975°C
Supported communication interface
Output functions
Switching point
Display
LCD display, LED display
Accuracy
0.1 - 1.1
0.1 - 1.1
Operating voltage
Electrical connection

Mechanical properties

Line diameter
5mm
Design
Cuboid
Operating temperature of the measuring head
-20 - 85°C
Thread length
30mm
Thread pitch
1.5mm
Cable length of measuring head
8m
Length
100mm
Degree of protection (IP)
IP65
Housing material
Zinc die-cast
Sensing element material
Stainless steel
Height of the amplifier
30mm
Width of the amplifier
70mm
Thread dimension
M48
Diameter
50mm
dimensions

Optical properties

Spectral sensitivity
8 - 14µm
Ratio (D:S)

Other properties

Relative air humidity (non-condensing)
10 - 95%
Ambient temperature
-20 - 85°C

Technical data

Lenght of the amplifier
120mm
Classification Class
eClass-7.0 27200211
eClass-7.1 27200211
eClass-8.0 27200211
eClass-9.0 27200211
eClass-9.1 27200211
ETIM-6.0 EC000601
ETIM-7.0 EC000601
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 310 temperature sensors
packaging dimensions 160 x 225 x 230mm
gross weight 1,869g
Customs tariff number 90251900
WEEE number 40951076
