Fiber optic sensors - Amplifiers fiber optic fiberglass

OL400321

OL400321
List price
177,40 €
amount price discount
1 177,40 €
5 172,08 € 3% / 5,32 €
10 168,53 € 5% / 8,87 €
20 163,21 € 8% / 14,19 €
50 156,11 € 12% / 21,29 €
Available
fiber optic-amplifier, 42x84x40mm, 10-35V DC, 1x PNP/NPN NC/NO, Connector M12 4pin, IP65, Aluminum, Infrared light
including
Compare

Fiber optic sensors - Amplifiers fiber optic fiberglass

Fiber optics in combination with the appropriate fiber optic amplifier function as contactless and wear-free position switches that can also be used in harsh environmental conditions. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). Because the ends and heads of the fiber optics have small dimensions and the fiber optics are flexible, very elegant solutions can be created for detecting objects in places that are difficult to access. Fiber optics can be used without special precautions in potentially explosive areas and in zones with electrical and/or magnetic fields (high-voltage installations, electrical welding equipment) as their function is not thereby affected. Fiber optics are available in versions for implementing the function as through-beam sensor or diffuse reflection sensor.

Electrical properties

Response/decay time
1ms
Number of switching outputs
1
Type of switching function
Normally closed contact/normally open contact

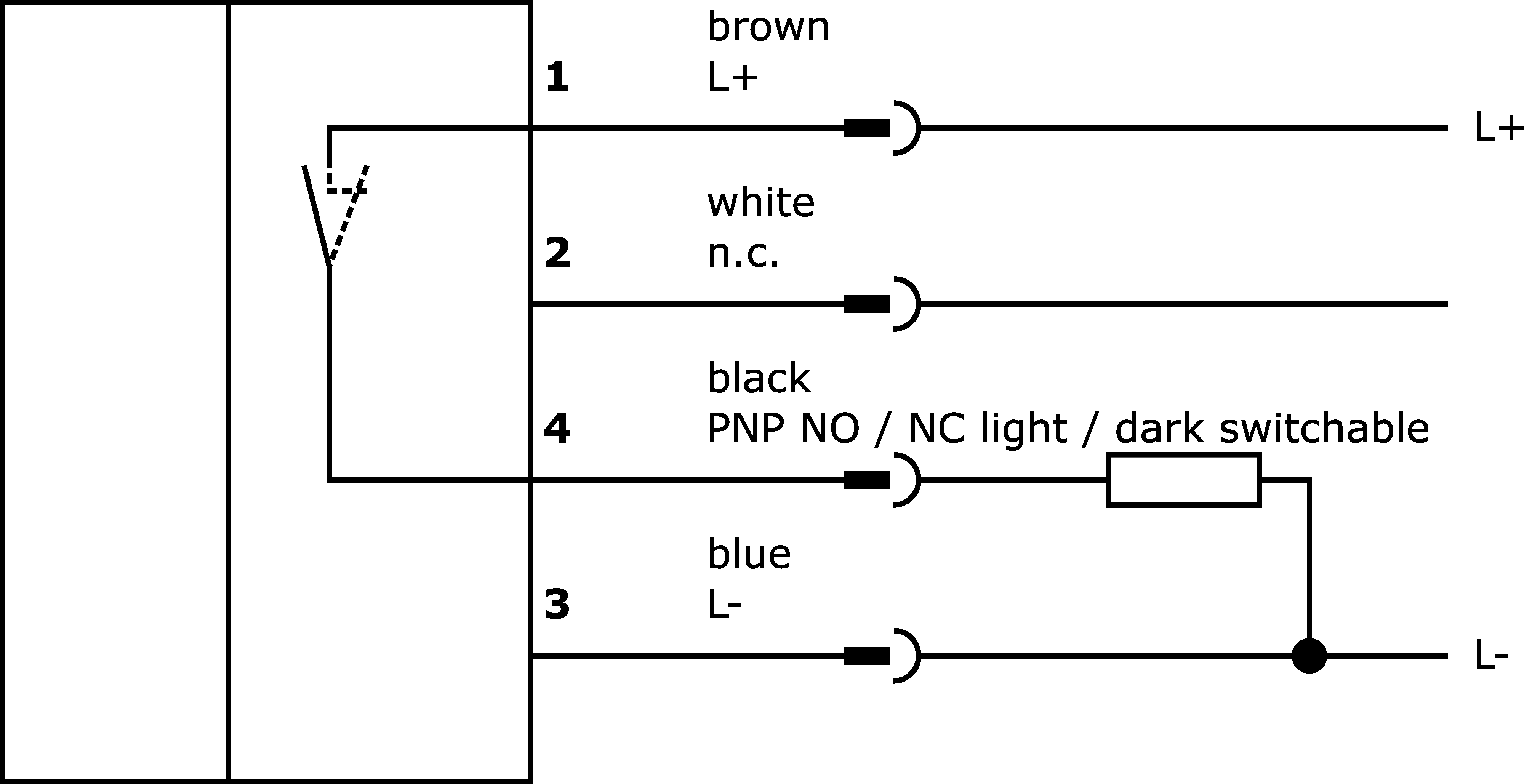

Type of electrical connection
Connector M12
Type of switching output
PNP/NPN
Rated switching current
400mA
Setting procedure
Potentiometer
Relative hysteresis
15%
Short-circuit protection
Yes
No-load current
30mA
Number of pins
4
Switching frequency
500Hz
Voltage drop
2V
Scanning function
Light-/dark-on mode
Reverse polarity protection
Yes
Operating voltage (DC)
10 - 35V
Output functions
Switching point
Display
LED display

Mechanical properties

Design
Cuboid
Width
40mm
Height
42mm
Length
83.5mm
Degree of protection (IP)
IP65
Housing material
Aluminum
Design of the fiber optic connection
screw fitting M18

Optical properties

Light source
Infrared light
Wavelength of the sensor
880nm

Other properties

Ambient temperature
-10 - 60°C
You can find accessories for OL400321 in these product groups:

Cable sockets M12 4-wire

Glass fiber optic diffuse reflection sensors

Cable sockets M12-socket M8-connector 3-wire

Cable sockets M12-socket M12-connector 4-wire

Adapter M12 socket 3-pin / M8 connector 3-pin

Adapter M12 socket 4-pin / M8 connector 4-pin

Cable connectors M12 4-pin field-attachable

Glass fiber optic through-beam sensors M18

307,10 €
Your price
Scarce

Cable sockets M12 4-wire shielded

Cable sockets M12 5-pin field attachable

Cable sockets M12 3-wire

Protection cap, teflon M18

Cable sockets M12 4-pin field attachable

Classification Class
eClass-7.0 27270905
eClass-7.1 27270905
eClass-8.0 27270905
eClass-9.0 27270905
eClass-9.1 27270905
ETIM-6.0 EC002651
ETIM-7.0 EC002651
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 152 fiber optic amplifiers
packaging dimensions 43 x 43 x 105mm
gross weight 200g
Customs tariff number 85365019
WEEE number 40951076
