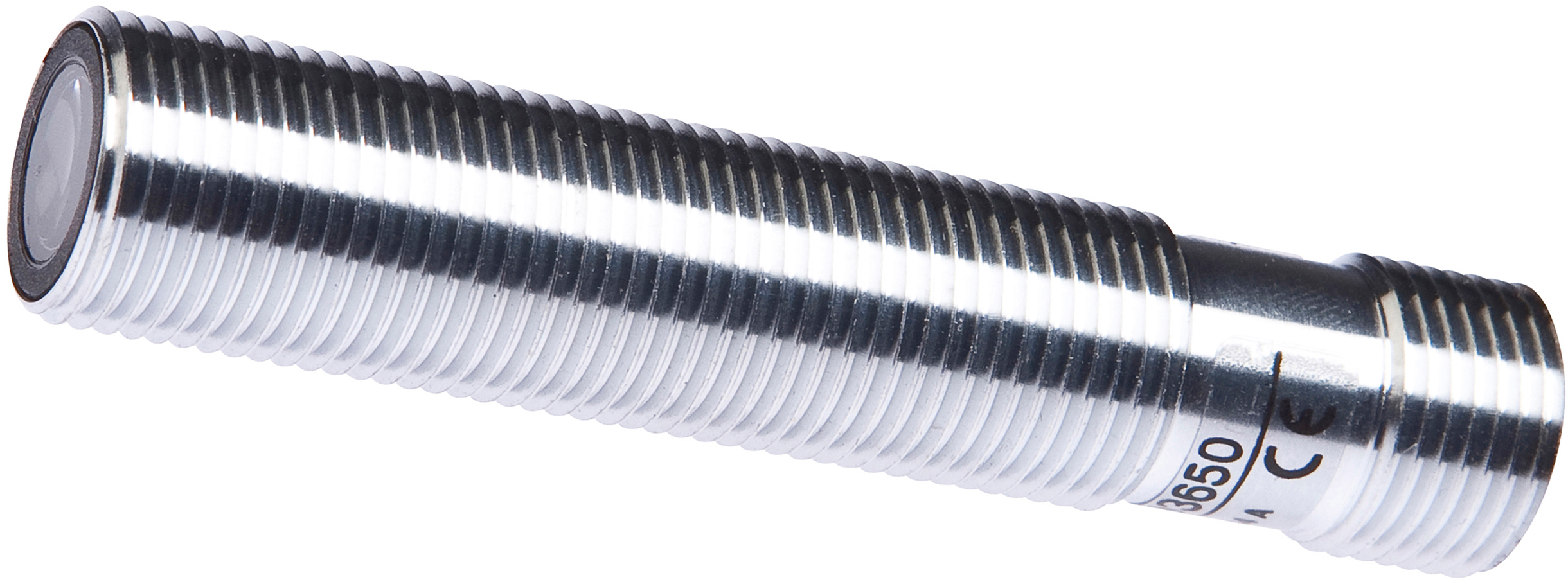

Optical Sensor, Through-Beam Sensor, M12x1, 60 mm long, Sn: 10 m, 10–35 V DC, 3-pin M12 connector, IP67, chrome-plated brass + glass, unpolarized red light
including Nut, Toothed washer
Compare
Optical sensors - Through-beam sensors transmitters
Optical sensors operate contactless. They detect objects regardless of their characteristics (e.g., shape, color, surface texture, material). Their basic operating principle is based on the transmission and reception of light. There are three versions: 1. The through-beam sensor consists of two separate devices—a transmitter and a receiver—that are aligned with each other. When the light beam between the two devices is interrupted, the switching output integrated into the receiver changes its status. 2. In a reflective light barrier, the transmitter and receiver are housed in a single device. The transmitted light beam is reflected toward the receiver by a reflector mounted opposite it. As soon as the light beam is interrupted, the switching output integrated into the device changes its status. 3. In a diffuse reflection sensor, the transmitter and receiver are housed in a single device. The emitted light beam is reflected by the object to be detected. As soon as the receiver detects the reflected light, the switching output integrated into the device changes its status.
Electrical properties
- Type of electrical connection
- Connector M12
- Readiness delay
- 20ms
- No-load current
- 15mA
- No-load current, transmitter
- 15mA
- Number of pins
- 3
- Residual ripple
- 20%
- Switching distance
- 0 - 10,000mm
- Clock frequency of the transmitter
- 15kHz
- protection functions
- reverse polarity protection

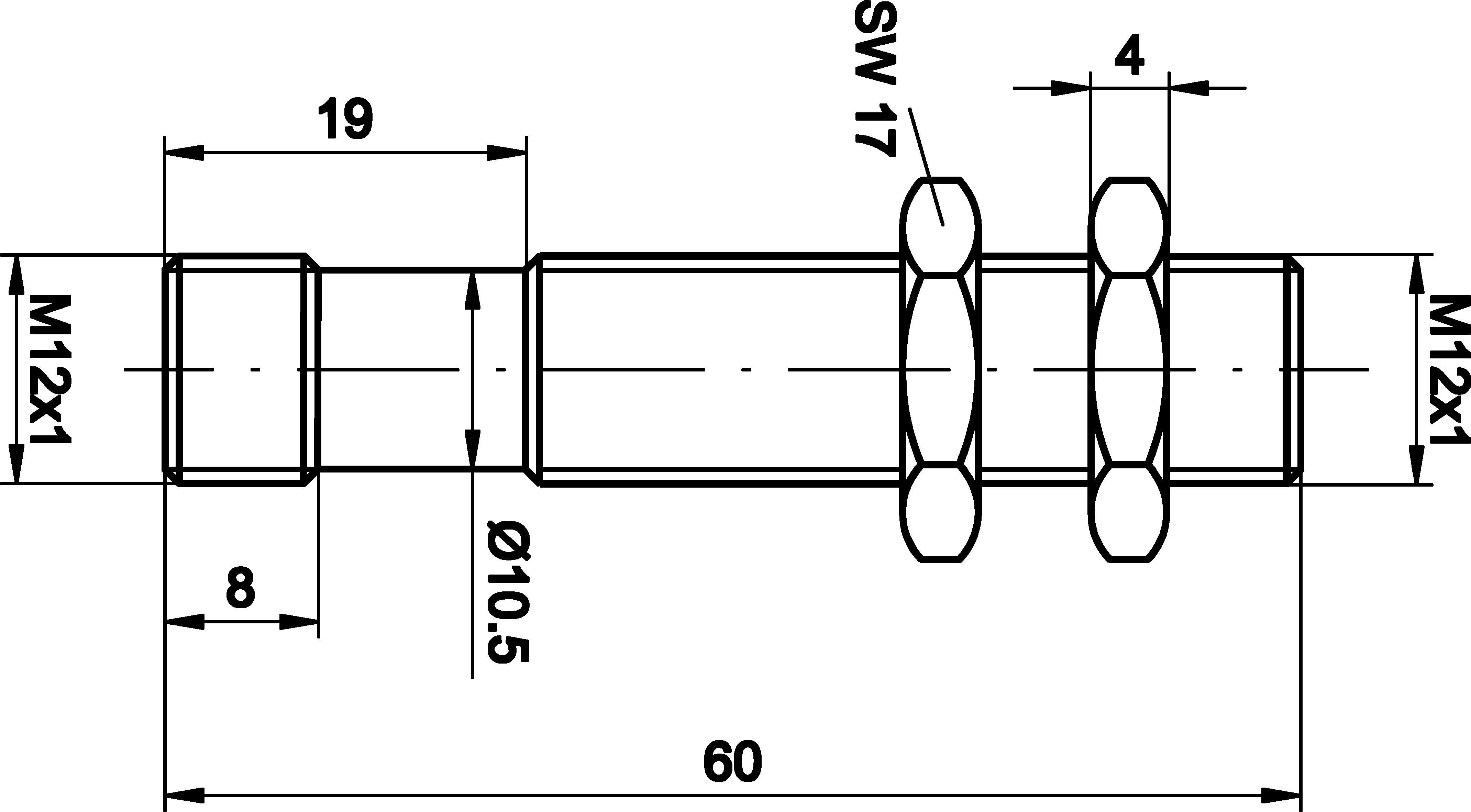

mechanical properties
- Design
- Cylinder, screw-thread
- Thread length
- 41mm
- Thread pitch
- 1mm
- Length
- 60mm
- Maximum tightening torque
- 10Nm
- Surface
- Chrome-plated
- Degree of protection (IP)
- IP67
- Active area material of sensor
- glass
- Housing material
- brass
- Thread dimension
- M12
optical properties
- Light source
- Polarity free red light
- Light beam form
- Point
- Wavelength of the sensor
- 660nm
other properties
- Features
- with test input
- Ambient temperature
- -25 - 55°C
