Optical sensors - Through-beam sensors transmitters
OS12A253
| amount | price | discount |
|---|---|---|
| 1 | 110,80 € | – |
| 5 | 107,48 € | 3% / 3,32 € |
| 10 | 105,26 € | 5% / 5,54 € |
| 20 | 101,94 € | 8% / 8,86 € |
| 50 | 97,50 € | 12% / 13,30 € |
Scarce
Sensor Optical, through-beam sensor Transmitter, M12x1 66lang, Sn: 6m, 15-30V DC, M12 plug-in connector 3-pin, IP67, nickel-plated (n-pltd) brass+plastic, infrared light
including Nut
Compare
Optical sensors - Through-beam sensors transmitters
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Type of electrical connection
- Connector M12
- Setting procedure
- other
- No-load current
- 30mA
- No-load current, transmitter
- 30mA
- Number of pins
- 3
- Switching distance
- 0 - 6,000mm
- Clock frequency of the transmitter
- 11.7kHz
- Reverse polarity protection
Mechanical properties
- Design
- Cylinder, screw-thread
- Thread length
- 40mm
- Thread pitch
- 1mm
- Length
- 66mm
- Surface
- nickel-plated
- Shock resistance
- 30g
- Degree of protection (IP)
- IP67
- Vibration resistance
- 55Hz
- Active area material of sensor
- Plastic
- Housing material
- Brass
- Thread dimension
- M12
Optical properties
- Light source
- Infrared light
- Light beam form
- Point
- Angle of beam spread
- 20°
- Wavelength of the sensor
- 880nm
Other properties
- Features

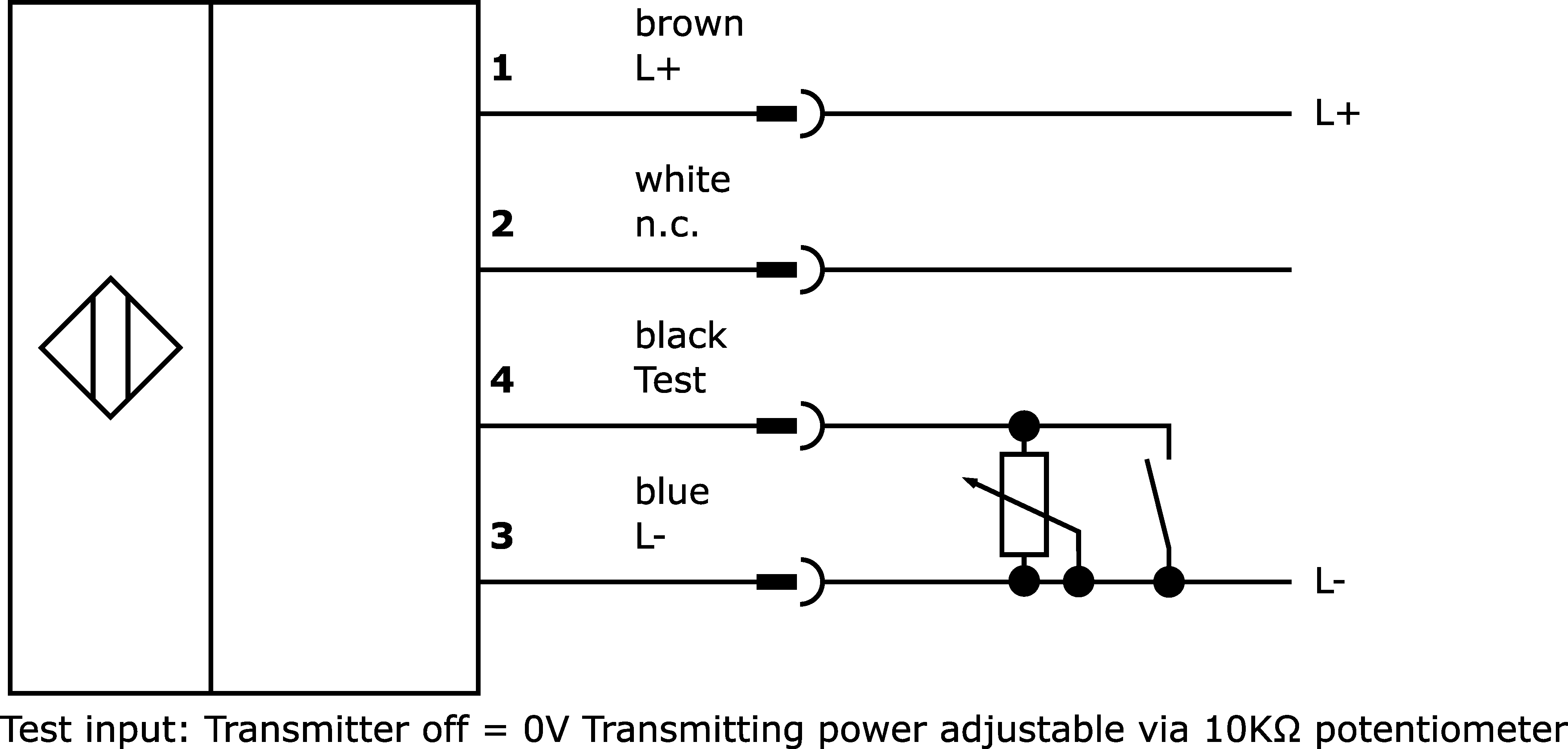

- with test input
- Ambient temperature
- -25 - 60°C
You can find accessories for OS12A253
in these product groups:
Assembly
Fixing material design M12
Scarce
Available
Available
On demand
Mounting system for AY000115
Available
Mounting system, cylindrical, M12
Available
Attachments
Accessories OS126
Connection technology
Adapter M12 socket 3-pin / M8 connector 3-pin
Adapter M12 socket 4-pin / M8 connector 4-pin
Cable sockets M12 3-wire
Cable sockets M12 4-pin field attachable
Cable sockets M12 5-pin field attachable
Tool
Infrared detector
Transmitters / receivers
Receiver for OS 12A253
Datasheets
Manuals
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 479 KB
-
pdfEU declaration of conformityPDF-file, 252 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270901 |
| eClass-7.1 | 27270901 |
| eClass-8.0 | 27270901 |
| eClass-9.0 | 27270901 |
| eClass-9.1 | 27270901 |
| ETIM-6.0 | EC002716 |
| ETIM-7.0 | EC002716 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 101 high performance through-beam sensors and amplifiers |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 51g |
| 0,15kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
