Optical sensors - Diffuse reflection sensors with intensity differentiation
OT189420
| amount | price | discount |
|---|---|---|
| 1 | 69,00 € | – |
| 5 | 66,93 € | 3% / 2,07 € |
| 10 | 65,55 € | 5% / 3,45 € |
| 20 | 63,48 € | 8% / 5,52 € |
| 50 | 60,72 € | 12% / 8,28 € |
Available
Optical sensor, diffuse reflection sensor, M18x1, 37 long, Sn: 5–1000, 10–30 V DC, PNP exclusive-OR, 4-pin M12-connector, IP67, stainless steel + PMMA, 1.5 kHz, unpolarized red light, spot, manual setting
including Nut, Toothed washer
Compare
Optical sensors - Diffuse reflection sensors with intensity differentiation
Optical sensors operate contactless. They detect objects regardless of their characteristics (e.g., shape, color, surface texture, material). Their basic operating principle is based on the transmission and reception of light. There are three versions: 1. The through-beam sensor consists of two separate devices—a transmitter and a receiver—that are aligned with each other. When the light beam between the two devices is interrupted, the switching output integrated into the receiver changes its status. 2. In a reflective light barrier, the transmitter and receiver are housed in a single device. The transmitted light beam is reflected toward the receiver by a reflector mounted opposite it. As soon as the light beam is interrupted, the switching output integrated into the device changes its status. 3. In a diffuse reflection sensor, the transmitter and receiver are housed in a single device. The emitted light beam is reflected by the object to be detected. As soon as the receiver detects the reflected light, the switching output integrated into the device changes its status.
Electrical properties
- Response/decay time
- 0.3ms
- Number of switching outputs
- 2
- Type of switching function
- Exclusive-OR

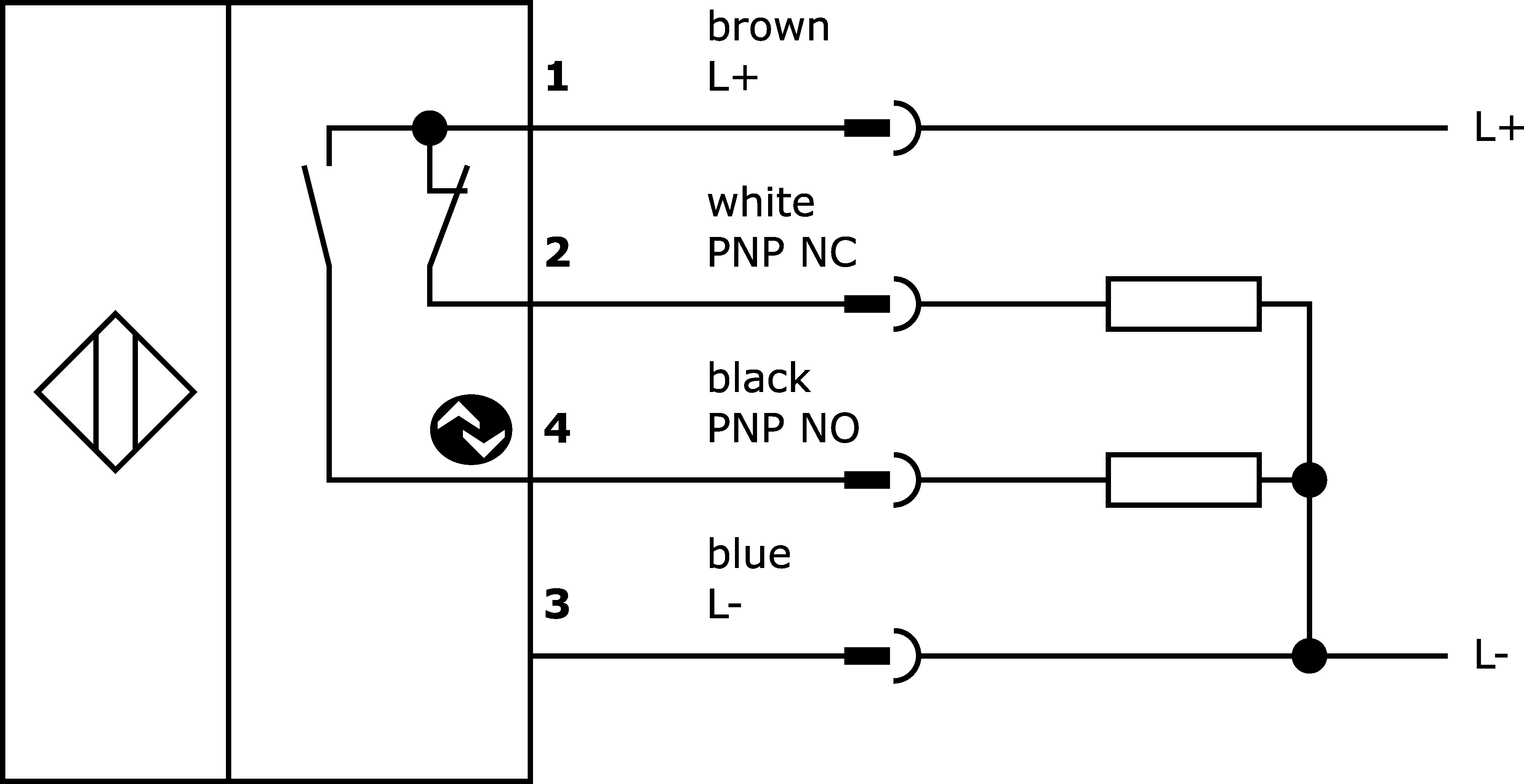

- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 200mA
- Setting procedure
- Manual adjustment
- Operating principle
- intensity differentiation
- Relative hysteresis
- 10%
- No-load current
- 15mA
- Number of pins
- 4
- Reaction time
- 0.3ms
- Residual ripple
- 10%
- Switching distance
- 5 - 1,000mm
- Switching frequency
- 1,500Hz
- Voltage drop
- 2V
- Scanning function
- Light-/dark-on mode
- Decay time
- 0.3ms
- supported communication interface
- IO-Link
- Display
- LED display
- protection functions
- short circuit protection, reverse polarity protection
mechanical properties
- Design
- Cylinder, screw-thread
- Thread length
- 24mm
- Thread pitch
- 1mm
- Length
- 37mm
- Maximum tightening torque
- 20Nm
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- stainless steel 1.4301
- Thread dimension
- M18
optical properties
- Light source
- Polarity free red light
- Light exit
- axial
- Light beam form
- Point
- Wavelength of the sensor
- 630nm
- Light spot diameter at focal point
- 10.5mm
other properties
- Ambient temperature
- -25 - 65°C
- Reference medium / object
- Material with 90% reflectivity
- IO-Link version
- V1.0.1
You can find accessories for OT189420
in these product groups:
Assembly
Adapter sleeve M18 to Ø20
Fixing material ball-head holder
Available
Fixing material design M18
Scarce
Available
Available
Mounting system for AY000117
Available
Mounting system, cylindrical, M18
Available
Nut M18x1.5
Attachments
Attachment optics for OR189420/OT189420
Attachment optics for OT1894xx
Cleaning air nozzle M18
On demand
Heat-protection glass M18
Connection technology
Adapter M12 socket 4-pin / M8 connector 4-pin
Cable sockets M12 4-pin field attachable
Cable sockets M12 4-wire
Cable sockets M12 4-wire shielded
Cable sockets M12 4-wire with LED
Cable sockets M12 5-pin field attachable
Cable sockets M12-socket M12-connector 4-wire
Cable sockets M12-socket with LED M12-connector 4-wire
Logic modules M12
Timer stages M12
Other sensors
Power supply 24V DC / 100mA switching amplifier
Protection cap, teflon M12
Tool
Sensor tester
Datasheets
Manuals
Drawings
Interfaces
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 480 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Links
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270903 |
| eClass-7.1 | 27270903 |
| eClass-8.0 | 27270903 |
| eClass-9.0 | 27270903 |
| eClass-9.1 | 27270903 |
| ETIM-6.0 | EC001821 |
| ETIM-7.0 | EC001821 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| MTTF value | 652Jahr(e) |
| IPF Product Group | 100 optical sensors |
| packaging dimensions | 185 x 20 x 210mm |
| gross weight | 43g |
| Carbon footprint | 0,7kg CO₂e |
| customs tariff number | 85365019 |
| WEEE number | 40951076 |
