Optical sensors - Diffuse reflection sensors with background suppression
OT450520
| amount | price | discount |
|---|---|---|
| 1 | 154,20 € | – |
| 5 | 149,57 € | 3% / 4,63 € |
| 10 | 146,49 € | 5% / 7,71 € |
| 20 | 141,86 € | 8% / 12,34 € |
| 50 | 135,70 € | 12% / 18,50 € |
Available
sensor optical, diffuse-reflection sensor, 56x32x18mm, Sn: 30-600, 10-30V DC, 1x PNP/NPN Push-pull, IO-Link, Connector M12 3pin, IP67, Plastic ASA+PMMA, 1kHz, Polarity free red light, Point, Teach-In
Compare
Optical sensors - Diffuse reflection sensors with background suppression
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 0.49ms
- Number of switching outputs
- 1
- Type of switching function
- Normally closed (n.o. for PNP) Normally closed (n.c. for NPN) - Adjustable

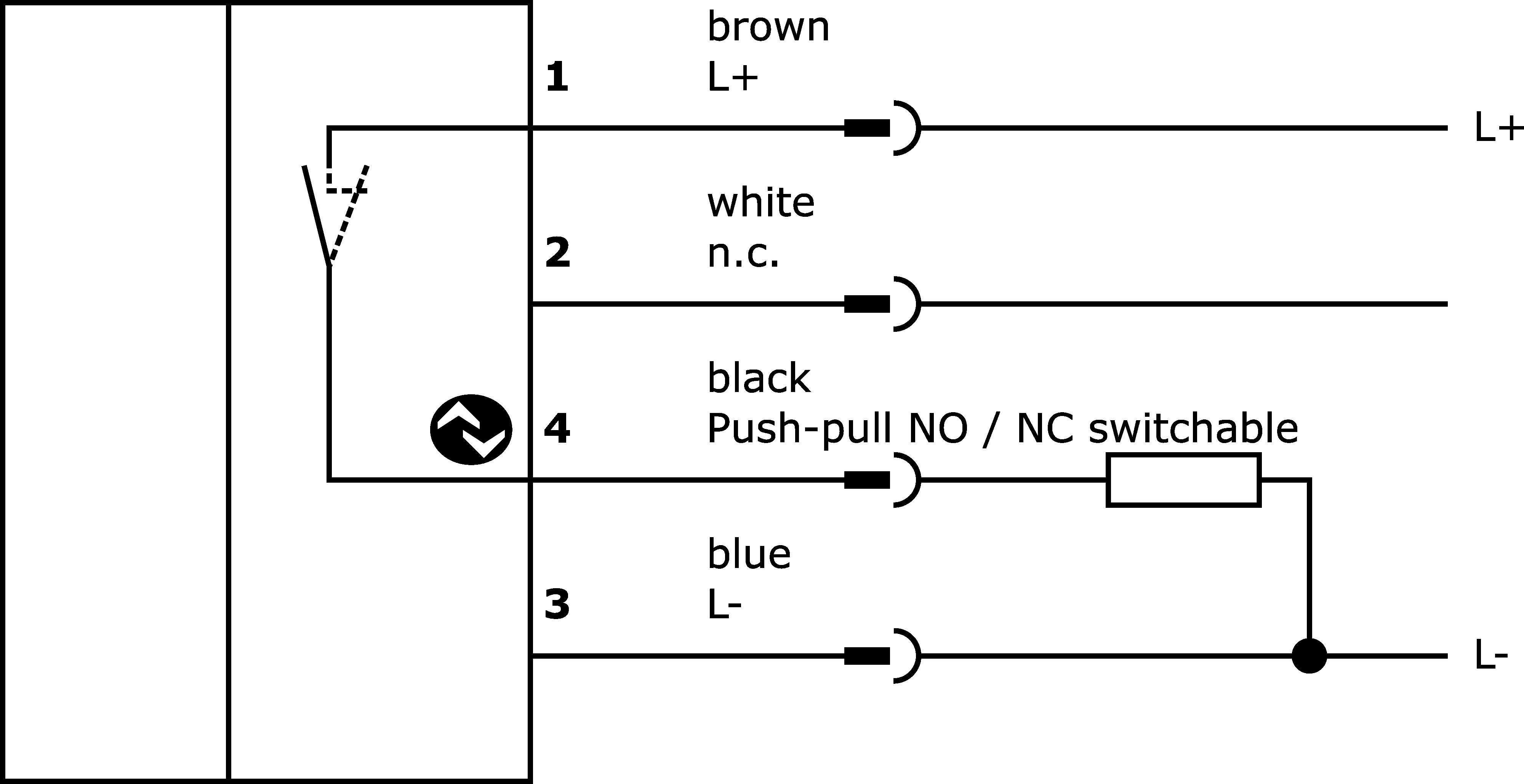

- Type of electrical connection
- Connector M12
- Type of switching output
- Push-pull
- Rated switching current
- 100mA
- Setting procedure
- Teach-In
- No-load current
- 30mA
- Number of pins
- 3
- Switching distance
- 60 - 550mm
- Switching frequency
- 1,000Hz
- Voltage drop
- 3V
- Scanning function
- Light-/dark-on mode
- Decay time
- 0.49ms
- Supported communication interface
- IO-Link
- Dead zone
- 0 - 30
- Display
- LED display
- Short circuit protection, Reverse polarity protection
Mechanical properties
- Design
- Cuboid
- Width
- 18mm
- Height
- 56.2mm
- Length
- 32.2mm
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- Plastic ASA
Optical properties
- Light source
- Polarity free red light
- Light beam form
- Point
- Wavelength of the sensor
- 630nm
Other properties
- Range of functions
- Ambient temperature
- -25 - 60°C
- Reference medium / object
- Material with 90% reflectivity
- IO-Link version
- V1.1
You can find accessories for OT450520
in these product groups:
Assembly
Accessories design 45
Mounting system for AY000138
Connection technology
Adapter M12 socket 3-pin / M8 connector 3-pin
Adapter M12 socket 4-pin / M8 connector 4-pin
Cable sockets M12 3-wire
Cable sockets M12 3-wire with LED
Cable sockets M12 4-pin field attachable
Cable sockets M12 5-pin field attachable
Cable sockets M12-socket M12-connector 4-wire
Cable sockets M12-socket M8-connector 3-wire
Cable sockets M12-socket with LED M12-connector 4-wire
Cable sockets M12-socket with LED M8-connector 3-wire
Logic modules M12
Timer stages M12
Other sensors
Power supply 24V DC / 100mA switching amplifier
Protection cap, teflon M12
Programming / parameterization
IO-Link master
Tool
Sensor tester
Datasheets
Manuals
Drawings
Interfaces
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 474 KB
-
pdfMaterial compliancePDF-file, 483 KB
-
pdfEU declaration of conformityPDF-file, 404 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
-
pdfFlyer IO-LinkPDF-file, 8.2 MB
-
pdfFlyer food and beveragePDF-file, 1.7 MB
-
pdfSensor solutions for the foil industryPDF-file, 2.7 MB
-
pdfProducts that inspirePDF-file, 8.5 MB
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270904 |
| eClass-7.1 | 27270904 |
| eClass-8.0 | 27270904 |
| eClass-9.0 | 27270904 |
| eClass-9.1 | 27270904 |
| ETIM-6.0 | EC002719 |
| ETIM-7.0 | EC002719 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 100 optical sensors |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 40g |
| 0,55kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
