OY320133
Scarce

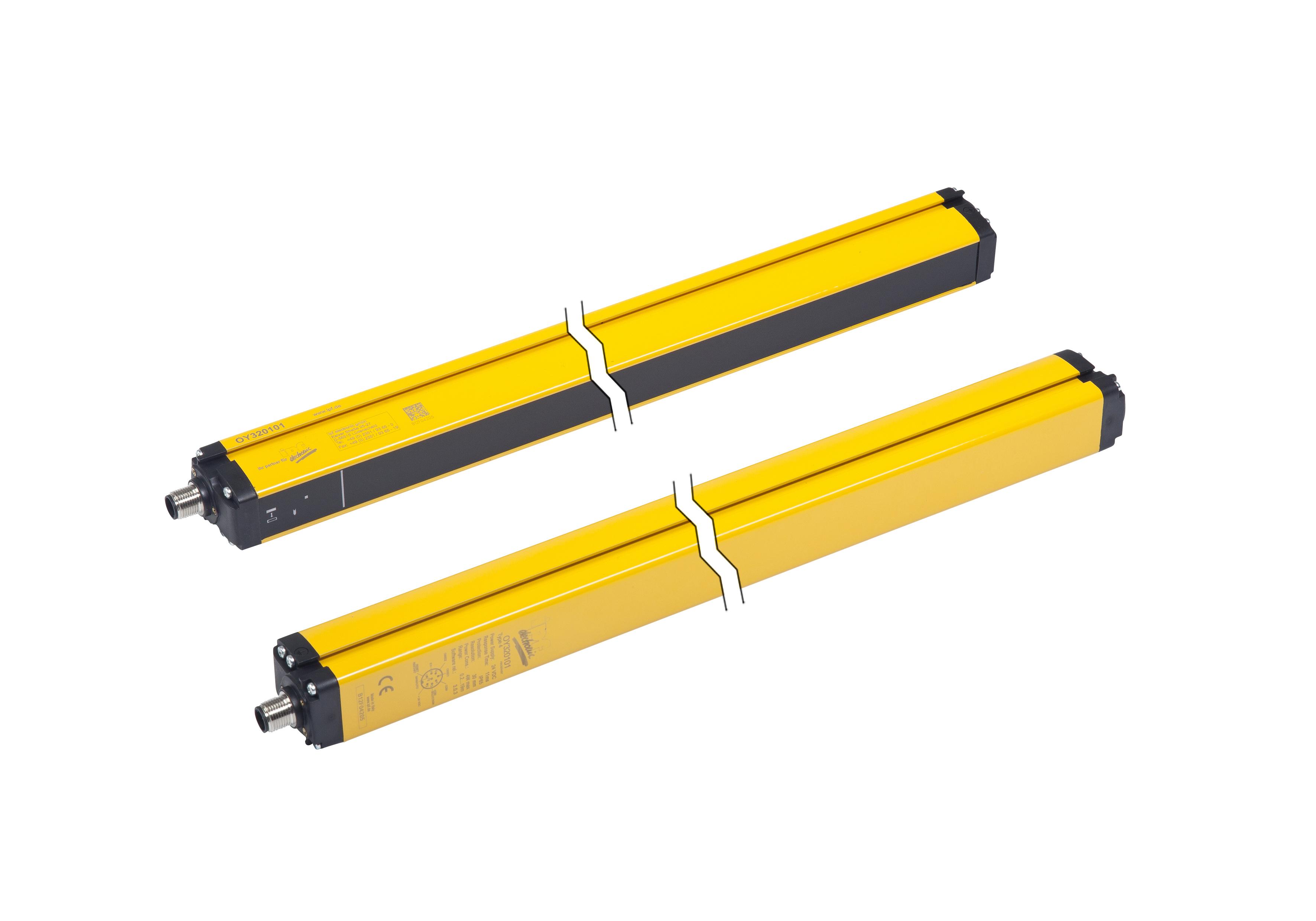

Light curtain, 37x683x32mm, field height 600, resolution 14mm, Sn: 0.3-6m, 24V diagnostic coverage, PNP NO, 500mA, M12 connector 8pin/4pin, IP65, aluminum painted+PMMA, safety
including 1x Test bar AO000138, 4x Soporte de montaje AO000106
Compare
Safety systems - Light curtains - finger protection
safety light curtains are suitable for the protection of hazardous areas on machines according to the applicable standards. there are three groups of devices: body protection (2, 3 and 4 rays), hand protection (resolution 30mm) and finger protection (resolution 14mm). each group has deivices with different protection field heights. Often these systems are used in conveyors, welding robots as wll as cutting and bending machines
Electrical properties
- Number of safe semiconductor outputs
- 2
- Resolution
- 14mm
- Type of switching function
- Normally open contact (NO)
- Type of electrical connection
- Connector M12
- Type of switching output
- OSSD, dual channel
- Rated switching current
- 500mA
- Short-circuit protection
- Yes
- No-load current, receiver
- 150mA
- No-load current, transmitter
- 105mA
- Number of pins, receiver
- 8
- Number of pins, transmitter
- 4
- Reaction time
- 22ms
- Switching distance
- 300 - 6,000mm
- Protection class
- III
- Reverse polarity protection
- Yes
- Operating voltage (DC)
- 24V
- Display
- LED display
- Suitable for safety functions
- Yes
- With restart lock
- Yes
- With monitoring function of downstream devices
- Yes
Mechanical properties
- Width
- 32.3mm
- Field height
- 600mm
- Height
- 36.9mm
- Length
- 683.2mm
- Surface
- Varnished
- Degree of protection (IP)
- IP65
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- Aluminum
Optical properties
- Number of beams
- 64
- Wavelength of the sensor
- 950nm
Other properties
- Scope of delivery
- Transmitter and receiver
- Relative air humidity (non-condensing)
- 15 - 95%
- Safety category
- Category 4
- Safety type in acc. with IEC 61496-1
- 4
- Ambient temperature
- 0 - 55°C
- With beam coding
- Yes
