Optical sensors - Light curtains

OY410521

OY410521
List price
826,00 €
amount price discount
1 826,00 € –
5 801,22 € 3% / 24,78 €
10 784,70 € 5% / 41,30 €
20 759,92 € 8% / 66,08 €
50 726,88 € 12% / 99,12 €
On demand
light curtain, 180x20x40mm, field height 155, resolution 1mm, Sn: 0.15-0.4m, 22-26V DC, PNP/NPN Anticoincidence, Connector M12 4pin/4pin, IP65, Aluminum+PMMA
including Transmitter and receiver

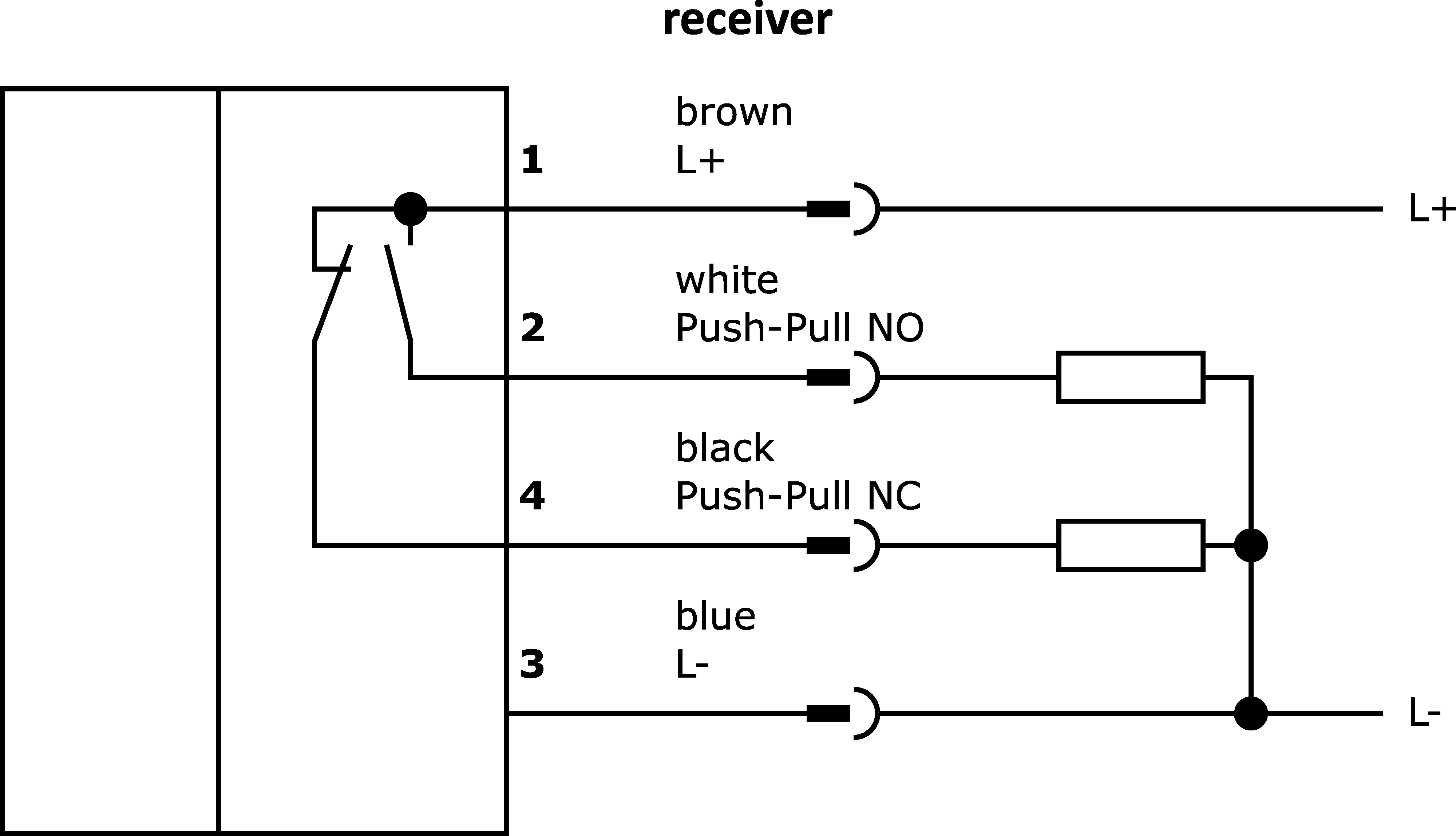

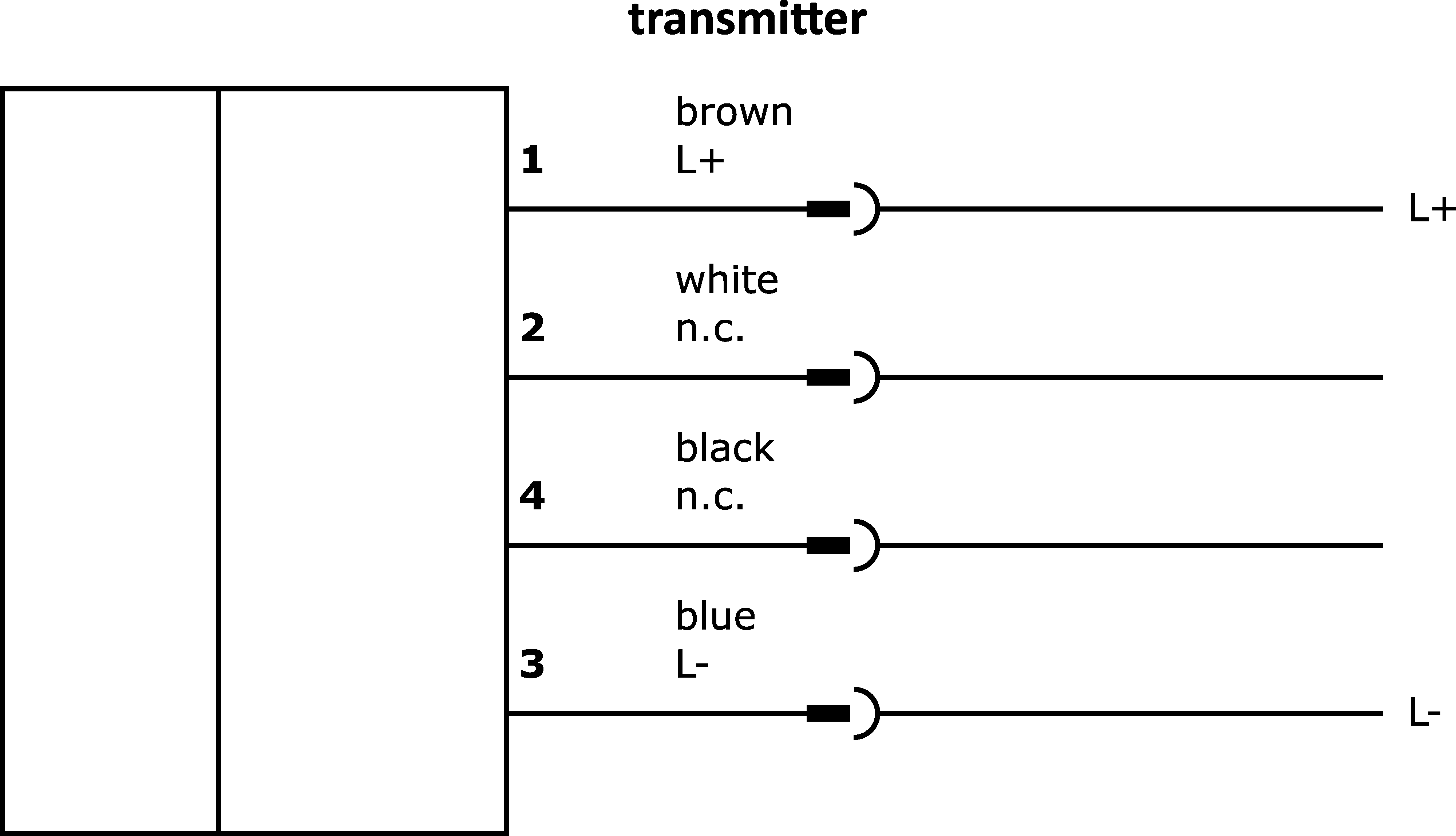

circuit diagram
dimensional drawing
3D model
Compare

Optical sensors - Light curtains

The multi-function light barriers are through-beam sensors where multiple beams are integrated. In case of interruption of only one beam, the switching output of the receiver changes its state. The devices are used where standard through-beam sensors with only one beam are not sufficient. There are devices with beam spacing of 20, 40, 60 or 120mm and different heights available. An integrated fuzzy logic controls the transmitting power automatically.

Electrical properties

Resolution
1mm
Type of switching function
Exclusive-OR
Type of electrical connection
Connector M12
Type of switching output
Push-pull
Rated switching current
80mA
No-load current, receiver
60mA
No-load current, transmitter
60mA
Number of pins, receiver
4
Number of pins, transmitter
4
Reaction time
1.9ms
Switching distance
150 - 400mm
Short circuit protection, Reverse polarity protection

Mechanical properties

Width
40mm
Field height
155mm
Height
180mm
Length
20.5mm
Degree of protection (IP)
IP65
Active area material of sensor
Plastic (PMMA)
Housing material
Aluminum

Other properties

Ambient temperature
-5 - 50°C
