Optical sensors - Through-beam sensors transmitters

OYSI0222

OYSI0222
List price
747,50 €
On demand
Optical sensor, light barrier, 11x5x43 mm, Sn: 0.05 m, connection to amplifier, 8-pin cable, 1 m, IP67, anodized aluminum, infrared light

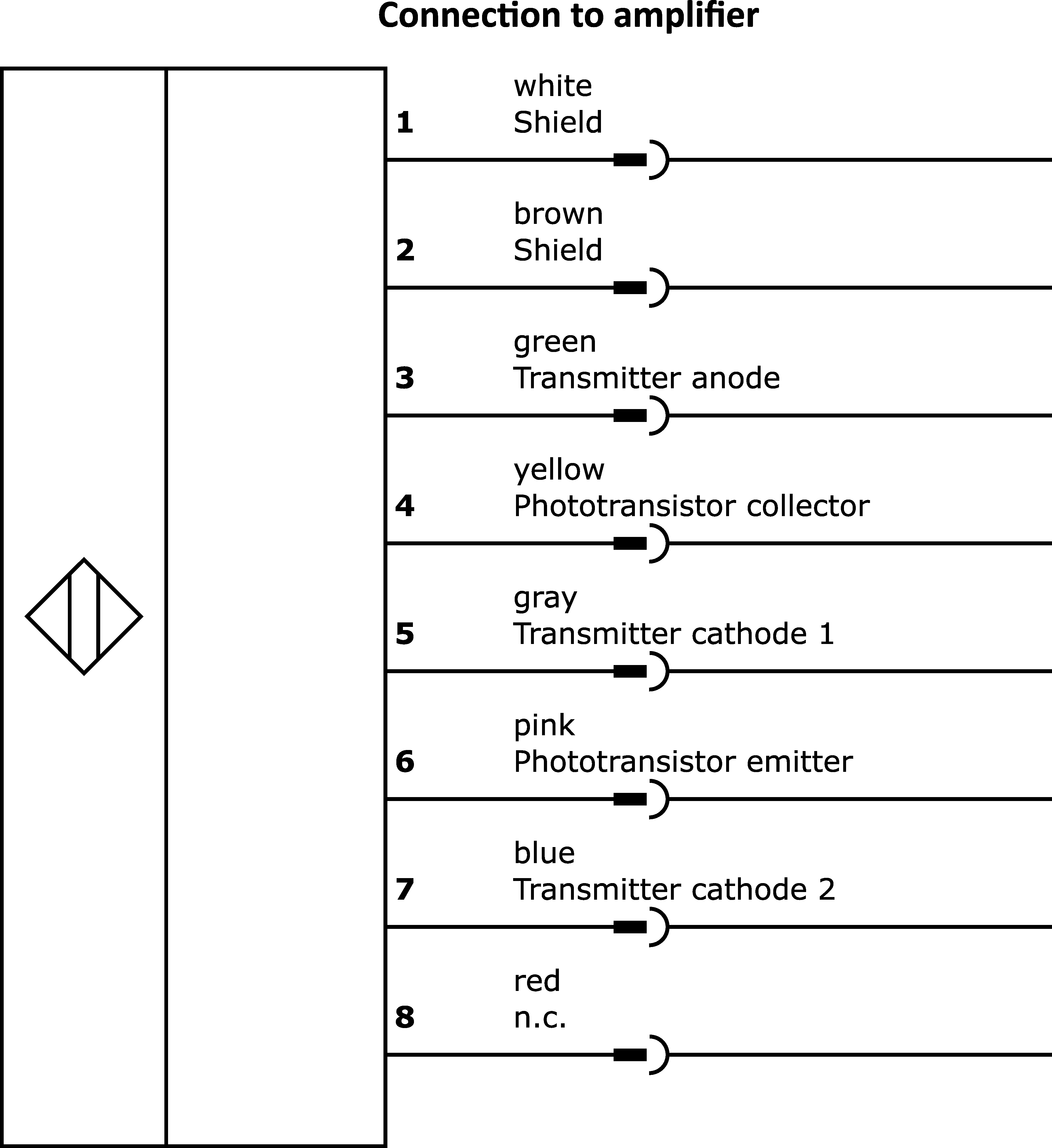

circuit diagram
dimensional drawing
3D model
Compare

Optical sensors - Through-beam sensors transmitters

Optoelectronics frame light barriers and ring sensors operate on the principle of a through-beam light barrier. The housing contains a large number of transmitters and receivers that form a light curtain, enabling them to detect and sense a wide variety of objects. Application examples for these systems include ejection monitoring on presses, presence detection, and length measurement of wires or tubes.

Electrical properties

Type of switching function
external amplifier
Type of electrical connection
Cable
Number of pins
8
Switching distance
0 - 50mm

mechanical properties

Line diameter
3mm
Number of cores
8
Design
Cuboid
Width
43mm
Height
11mm
Cable length
1m
Length
5mm
Storage temperature
-20 - 85°C
Surface
teflon coated
Degree of protection (IP)
IP67
Housing material
aluminum

optical properties

Light source
Infrared light
Light beam form
Line
Wavelength of the sensor
880nm

other properties

Ambient temperature
-20 - 60°C
Version
Light barrier
Classification Class
eClass-7.0 27270901
eClass-7.1 27270901
eClass-8.0 27270901
eClass-9.0 27270901
eClass-9.1 27270901
ETIM-6.0 EC002716
ETIM-7.0 EC002716
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 705 special devices (SI)
packaging dimensions 77 x 25 x 123mm
gross weight 70g
Carbon footprint 0,64kg CO₂e
customs tariff number 85365019
WEEE number 40951076
