Laser sensors - Diffuse reflection sensors with background suppression
PT120320
| amount | price | discount |
|---|---|---|
| 1 | 165,10 € | – |
| 5 | 160,15 € | 3% / 4,95 € |
| 10 | 156,85 € | 5% / 8,26 € |
| 20 | 151,89 € | 8% / 13,21 € |
| 50 | 145,29 € | 12% / 19,81 € |
Scarce
Laser Sensor, Diffuse Reflection Sensor, M12x1 72 long, Sn: 20-150, 10–30 V DC, 1x PNP+NPN NC/NO, 4-pin M12-connector, IP65, VA+PMMA, 0.025 kHz, laser diode, infrared light, spot, teach-in
including Nut
Compare
Laser sensors - Diffuse reflection sensors with background suppression
The PT120320 is a sensor based on the operation of a laser diode as a light source. The laser light emitted by the laser diode is detected by a receiver and, due to its special features, is suitable for applications that require high resolution.
The sensor is designed as a diffuse reflection sensor and measures the direct reflection from surfaces at a preset distance. Various solutions are available to ensure that the sensor operates independently of background reflections and colors.
The cylindrical PT120320 operates within a distance range of 20 to 150 mm and is therefore suitable for a wide variety of applications requiring precise measurements.
Electrical properties
- Response/decay time
- 20ms
- Number of switching outputs
- 1
- Type of switching function
- Normally closed contact/normally open contact

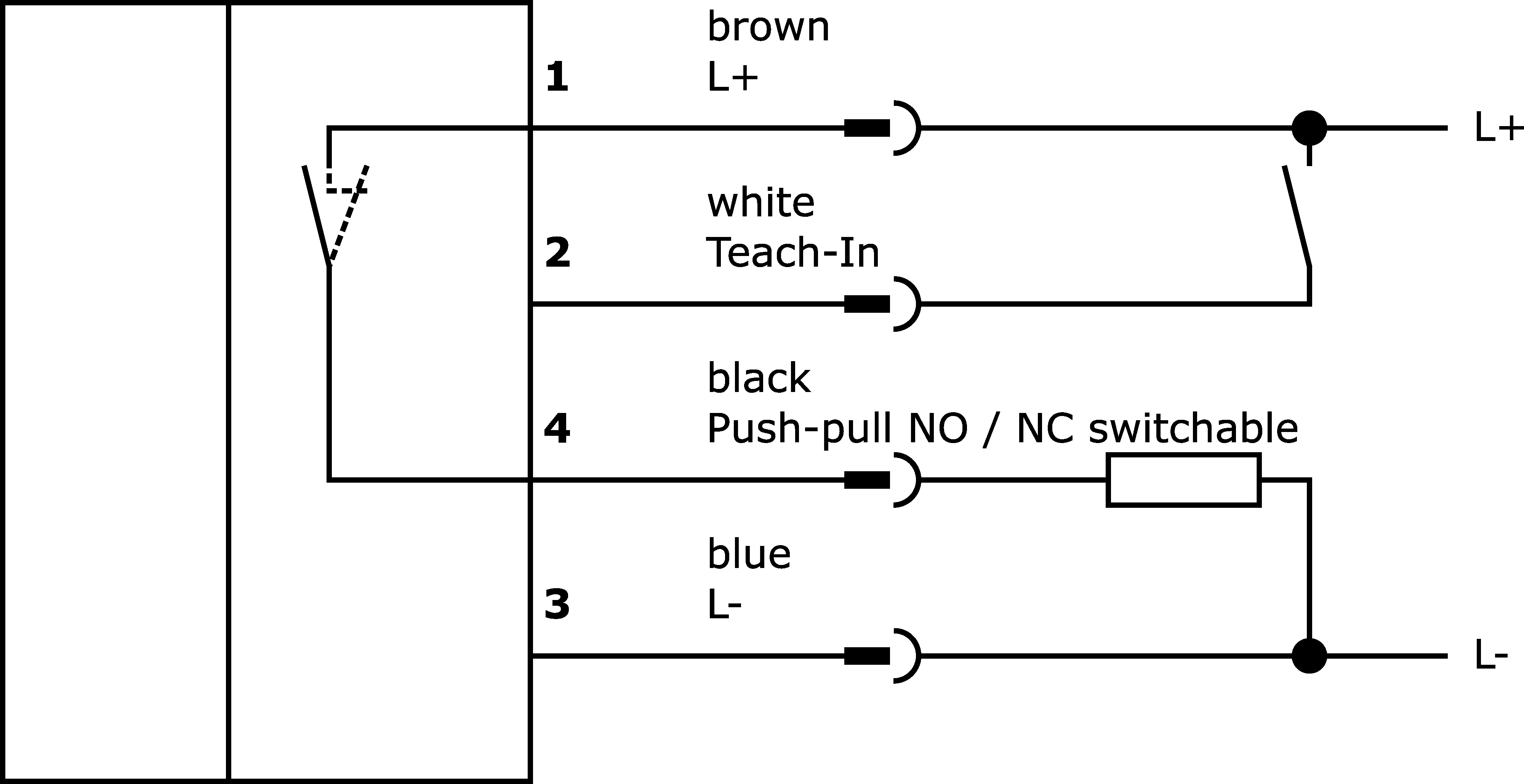

- Type of electrical connection
- Connector M12
- Type of switching output
- PNP/NPN
- Rated switching current
- 100mA
- Setting procedure
- Teach-In
- Operating principle
- Time-of-flight measurement
- Number of pins
- 4
- Switching distance
- 20 - 150mm
- Switching frequency
- 25Hz
- Voltage drop
- 2V
- Scanning function
- Light-/dark-on mode
- Display
- LED display
- protection functions
- short circuit protection, reverse polarity protection
mechanical properties
- Design
- Cylinder, screw-thread
- Thread length
- 45mm
- Thread pitch
- 1mm
- Length
- 72mm
- Storage temperature
- -10 - 60°C
- Degree of protection (IP)
- IP65
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- stainless steel
- Thread dimension
- M12
optical properties
- Laser class
- Class 1
- Light source
- Laser diode, infrared light
- Light beam form
- Point
- Wavelength of the sensor
- 880nm
other properties
- Ambient temperature
- -10 - 60°C
- Reference medium / object
- Material with 90% reflectivity
You can find accessories for PT120320
in these product groups:
Assembly
Fixing material design M12
Scarce
Available
Available
On demand
Mounting system for AY000115
Available
Mounting system, cylindrical, M12
Available
Attachments
Accessories OS126
Connection technology
Cable sockets M12 4-pin Field-attachable with LED
Cable sockets M12 4-wire shielded
Logic modules M12
Timer stages M12
Other sensors
Power supply 24V DC / 2 – 10A
Programming / parameterization
Teach adapter AV000114
Tool
Sensor tester
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 479 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27270904 |
| eClass-7.1 | 27270904 |
| eClass-8.0 | 27270904 |
| eClass-9.0 | 27270904 |
| eClass-9.1 | 27270904 |
| ETIM-6.0 | EC002719 |
| ETIM-7.0 | EC002719 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 160 laser sensor |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 58g |
| Carbon footprint | 0,34kg CO₂e |
| customs tariff number | 85365019 |
| WEEE number | 40951076 |
