Laser sensors - Switching amplifiers

PV98A840

PV98A840
List price
505,70 €
amount price discount
1 505,70 € –
5 490,53 € 3% / 15,17 €
10 480,42 € 5% / 25,29 €
20 465,24 € 8% / 40,46 €
50 445,02 € 12% / 60,68 €
Scarce

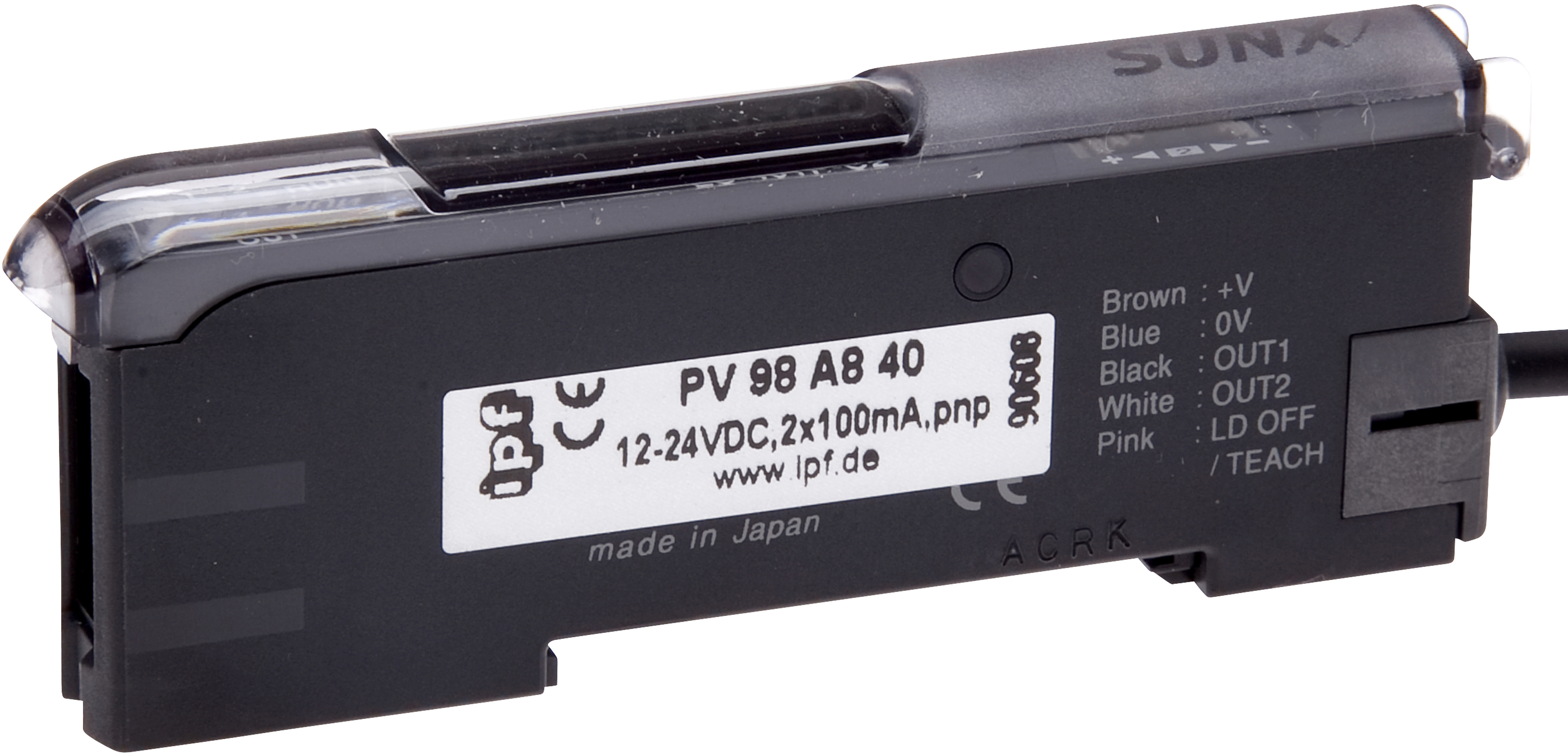

amplifier laser, 30x10x75mm, 12-24V DC, PNP Normally open/normally closed, 0-10V, Cable 2m, Plastic, With LED display

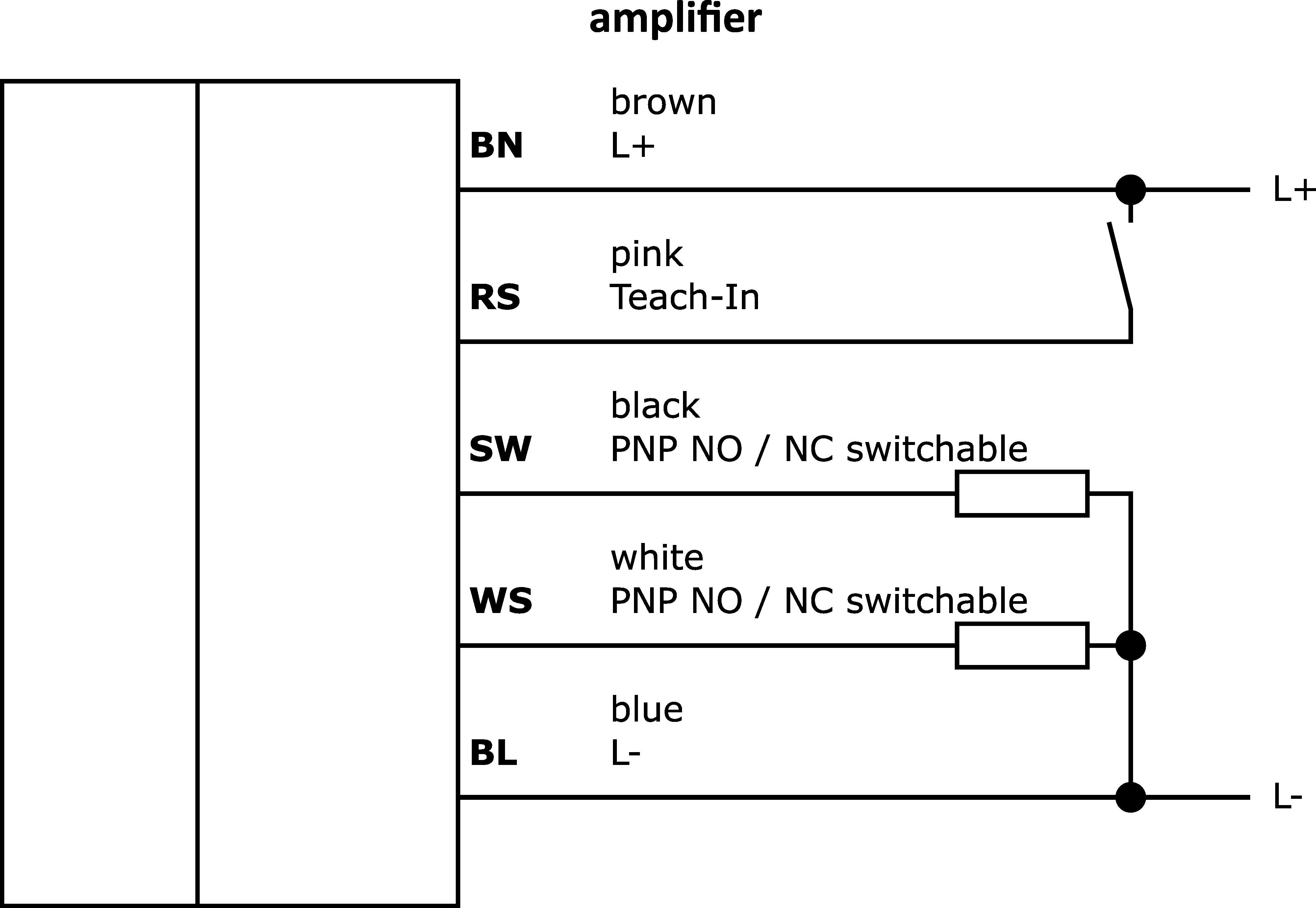

circuit diagram
3D model
Compare

Laser sensors - Switching amplifiers

Electrical properties

Number of channels
1
Type of switching function
Normally closed contact/normally open contact
Type of analog output
0 - 10V
Type of electrical connection
Cable
Type of switching output
PNP
Turn-off delay
0.001 - 9.9s
Rated switching current
100mA
Turn-on delay
0 - 10s
No-load current
40mA
Power consumption
0.94VA
Switching capacity
4.8VA
Switching voltage
24V
Switching voltage DC
24V
Display
LED display
Short circuit protection

Mechanical properties

Line diameter
1.45mm
Design
Cuboid
Width
75mm
Height
30mm
Cable length
2m
Length
10mm
Mounting method
Floor fastening
Housing material
Plastic

Other properties

Ambient temperature
-20 - 70°C
Classification Class
eClass-7.0 27210121
eClass-7.1 27210121
eClass-8.0 27210121
eClass-9.0 27210121
eClass-9.1 27210121
ETIM-6.0 EC001485
ETIM-7.0 EC001485
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 160 laser sensor
packaging dimensions 124 x 28 x 149mm
gross weight 140g
2,76kg CO₂e
Customs tariff number 85365019
WEEE number 40951076
