Laser sensors - Through-beam sensors

PYSI0335

PYSI0335
List price
1.690,00 €
On demand
Sensor laser, barrier, 68x12x17mm, connection to amplifier, 2m cable tail, M9 connector, IP67, aluminum+glass, red light, parameterization

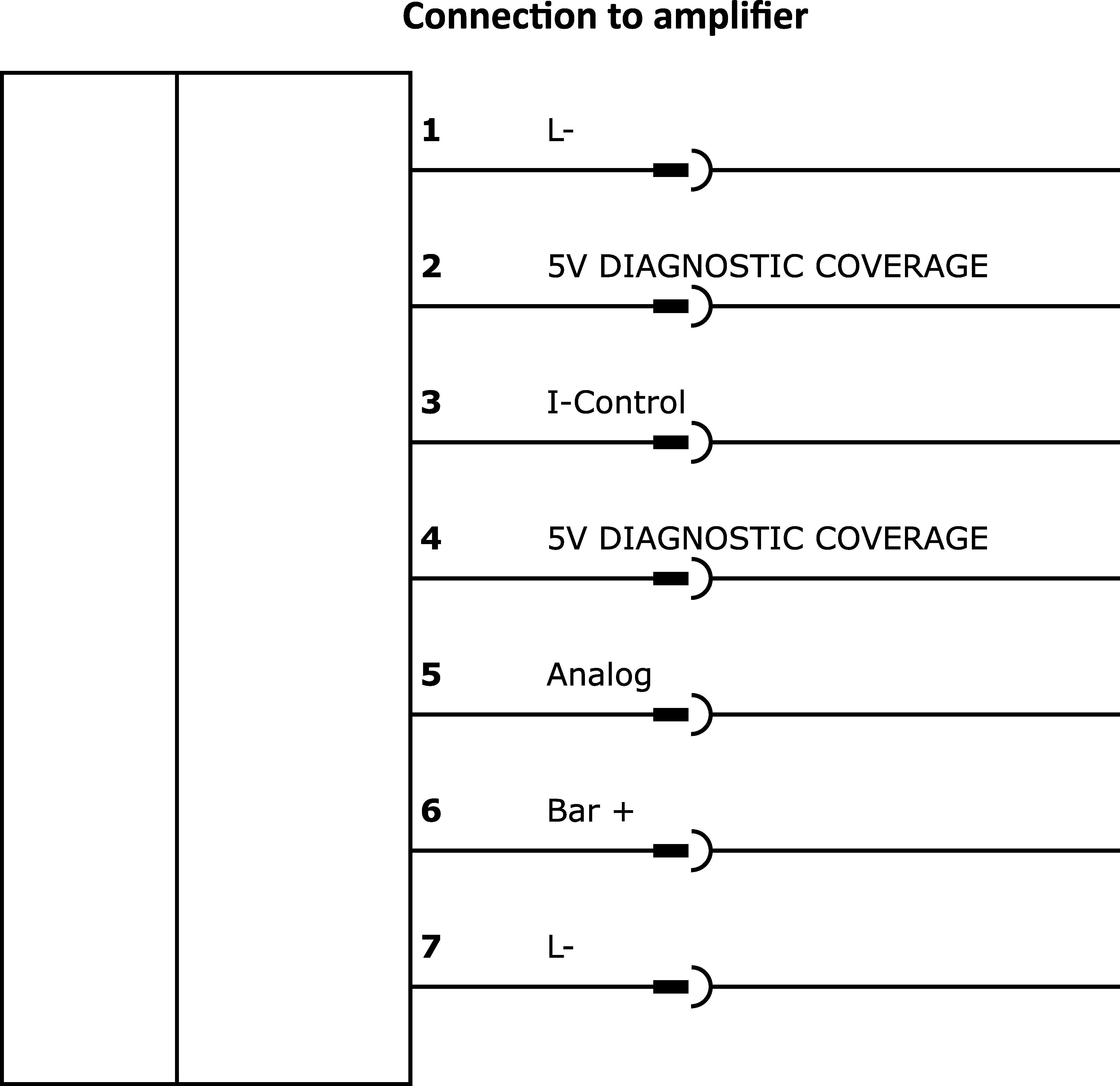

circuit diagram
dimensional drawing
3D model
Compare

Laser sensors - Through-beam sensors

Electrical properties

Type of switching function
Type of electrical connection
Cable connector Binder712
No-load current, receiver
20mA
No-load current, transmitter
50mA
Number of pins
7
Repeatability +/-
60µm

mechanical properties

Design
Cuboid
Width
12mm
Height
64mm
Cable length
2m
Length
17mm
Degree of protection (IP)
IP67
Active area material of sensor
glass
Housing material
Aluminum

optical properties

Aperture width
0.8mm
Aperture length
6.5mm
Laser class
Class 1
Light source
red light
Light beam form
Line
Min. object size
0.8mm
Wavelength of the sensor
670nm

other properties

Ambient temperature
0 - 50°C
Classification Class
eClass-7.0 27270901
eClass-7.1 27270901
eClass-8.0 27270901
eClass-9.0 27270901
eClass-9.1 27270901
ETIM-6.0 EC002716
ETIM-7.0 EC002716
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 705 special devices (SI)
packaging dimensions 124 x 28 x 149mm
gross weight 169g
Carbon footprint 1,31kg CO₂e
customs tariff number 85365019
WEEE number 40951076
