Flow sensors - Consumption measurement for compressed air

SL900021

SL900021
List price
898,20 €
On demand

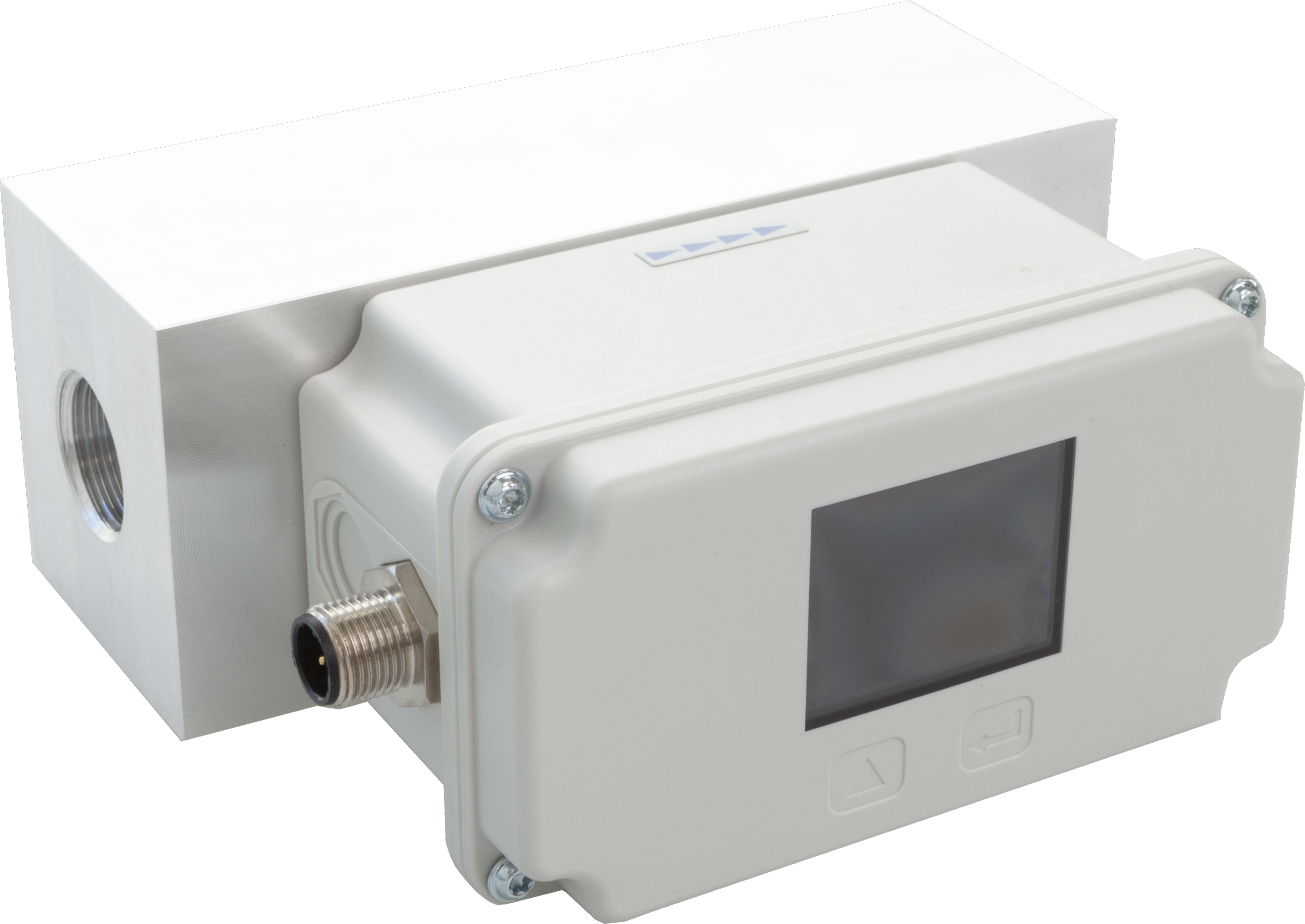

Sensor flow, air, calorimetric, 109x55x135mm, G 1/2", 12-36V DC, 1x relay contact NO, 4-20mA, M12 plug connector 5-pin, plastic PC, pressure resistance 16bar, with display, parameterization

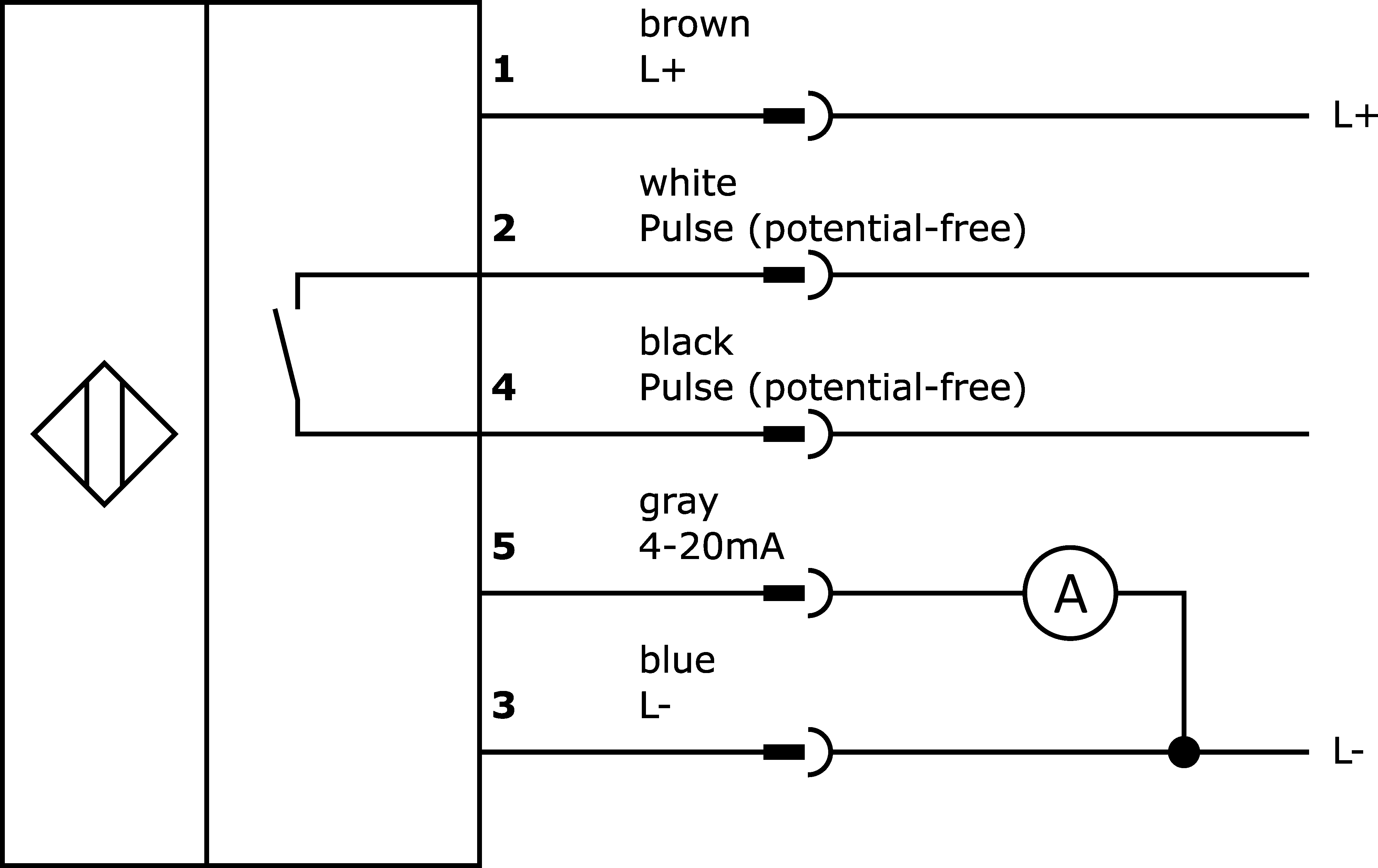

circuit diagram

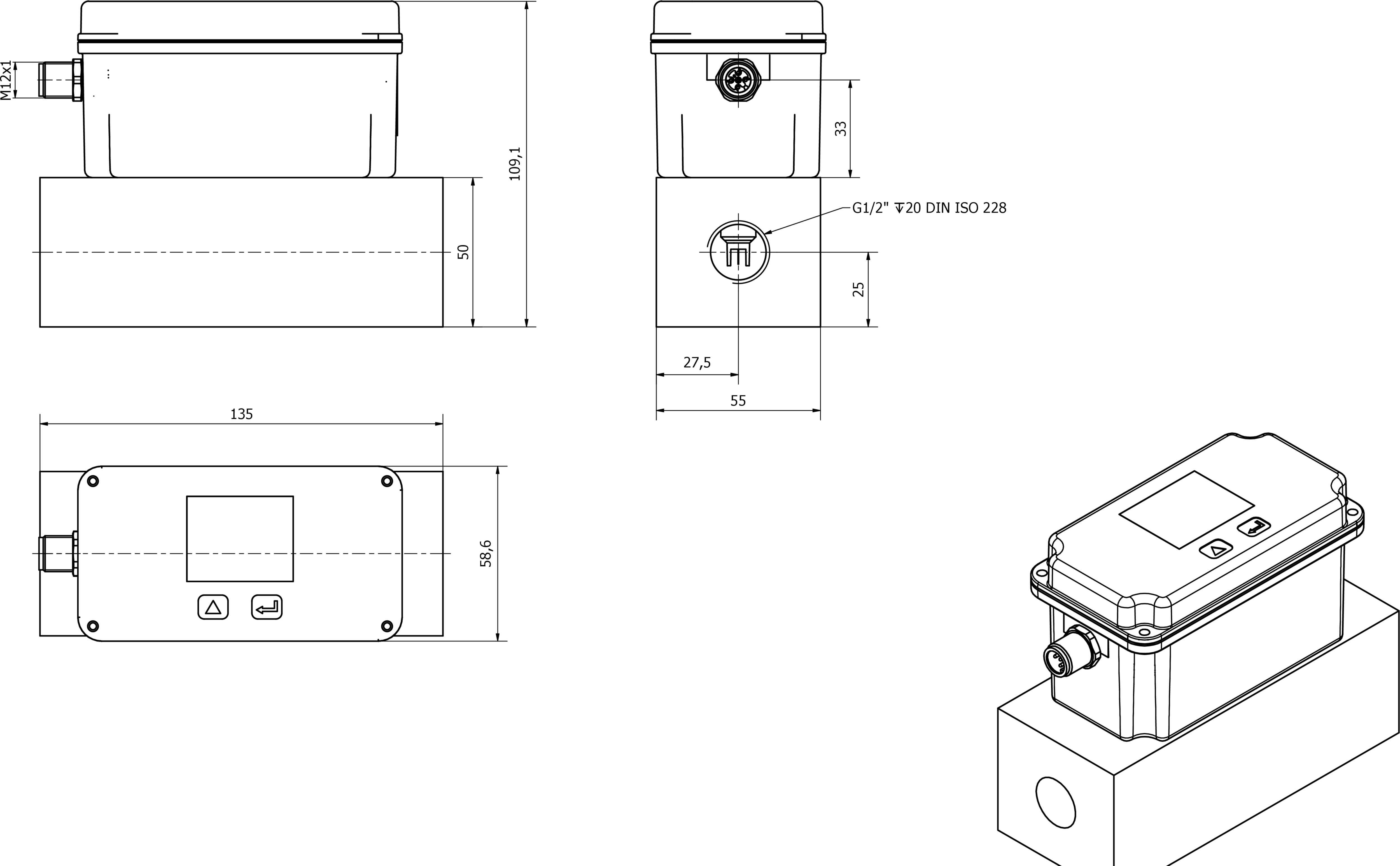

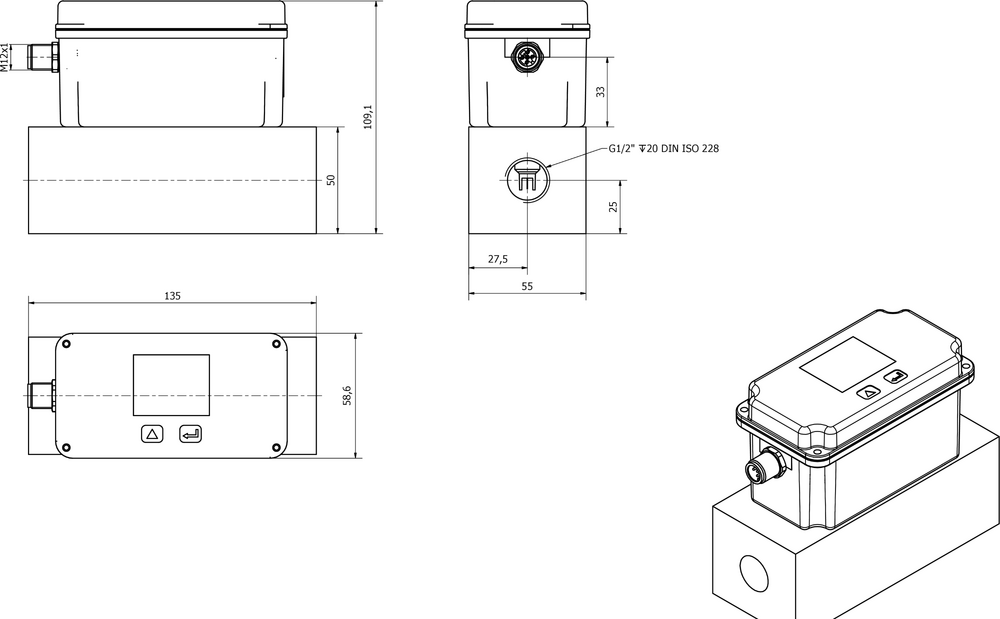

dimensional drawing
3D model
Compare

Flow sensors - Consumption measurement for compressed air

The function of the flow sensor is based on the calorimetric principle. The sensor is heated by a few degrees Celsius from the inside compared to the flow medium into which it protrudes. If the medium flows, the heat generated in the sensor is dissipated by the medium. The temperature generated in the sensor is measured and compared with the temperature of the medium, which is also measured. The flow state for each medium can be derived from the temperature difference obtained. Applications for these sensors include compressed air consumption measuring devices.

Electrical properties

Number of switching outputs
1
Type of switching function
Normally open contact (NO)
Type of analog output
4 - 20mA
Type of electrical connection
Connector M12
Type of switching output
Relay contact
Rated switching current
150mA
Setting procedure
Parameterization
No-load current
140mA
Number of pins
5
Switching voltage
48V
Measurement principle
calorimetric
Measuring range flow volume
0 - 1,500l/min
Measuring range flow velocity
0.18 - 185m/s
Display
TFT display
protection functions
Short circuit protection, Reverse polarity protection

mechanical properties

Type of process connection
G1/2 inch
Design
Cuboid, compact
Width
135mm
Pressure resistance
16bar
Height
109.1mm
Length
55mm
Medium temperature
-20 - 60°C
Degree of protection (IP)
IP65
Housing material
Plastic PC
Sensing element material
Aluminum

other properties

Range of functions
Flow rectification
Ambient temperature
-20 - 70°C
Measuring accuracy
± 1.5 % of measuring range ± 0.3 % of measuring range end
Reference medium / object
Air
Applications
Pneumatic applications
