SY87F009

SY87F009
List price
2.980,00 €
On demand

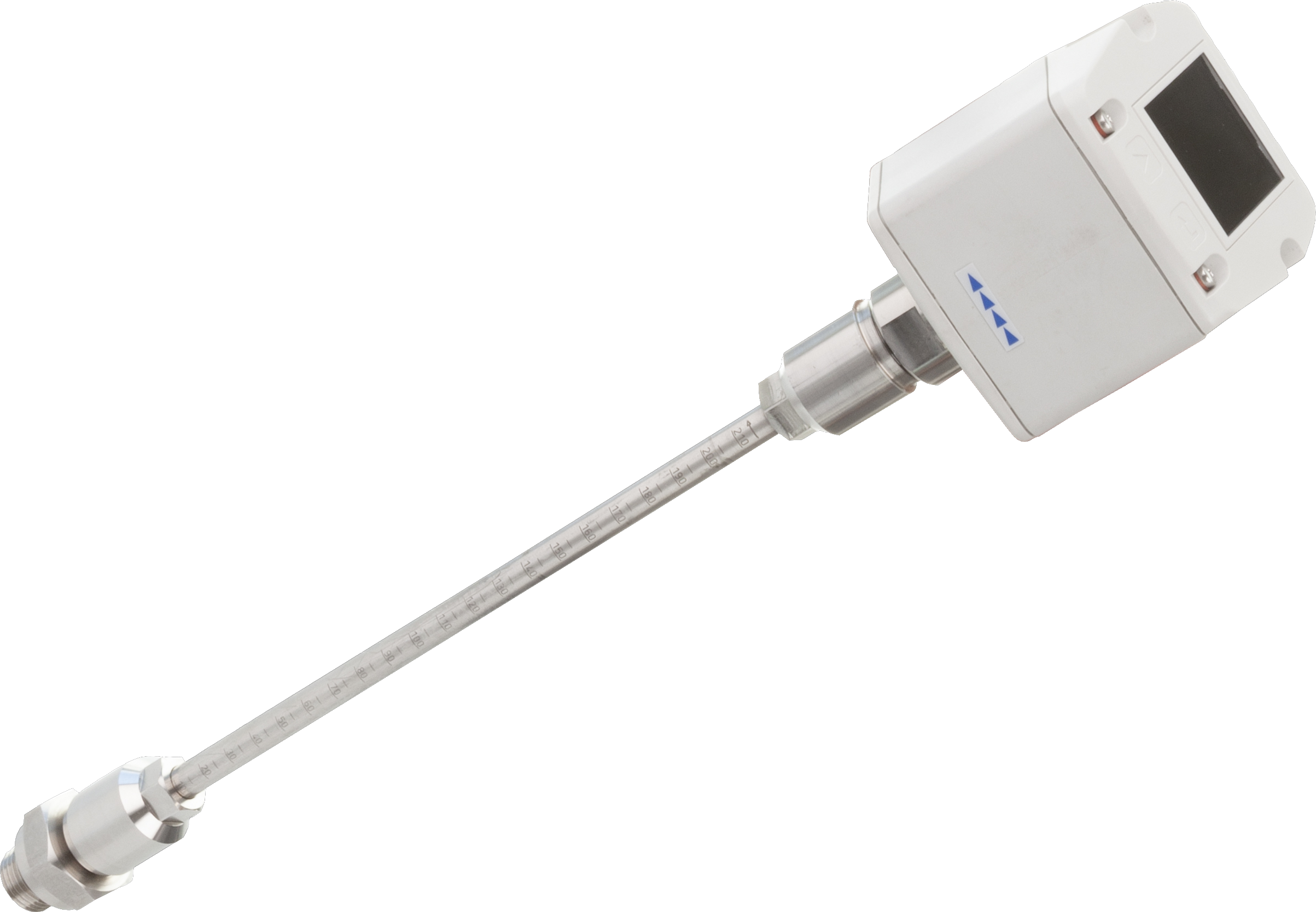

Flow sensor and oxygen sensor, calorimetric, G 1/2", 18–36 V DC, 4–20 mA, 5-pin M12 connector, PC plastic, with display, parameterization, RS-485
circuit diagram
3D model
Compare

Flow sensors - Consumption measurement for various gases

The function of the flow sensor involves the calorimetric principle. The sensor is heated from the inside by a few degrees Celsius relative to the flowing medium into which it extends. When the medium flows, the heat generated in the sensor is dissipated through the medium. The temperature within the sensor is measured and compared with the medium temperature, which is also measured. The flow condition for each medium can be determined from the resulting temperature difference. The application of these sensors includes use as compressed air consumption meters.

Electrical properties

Number of switching outputs
1
Type of switching function
Normally open contact (NO)
Type of analog output
4 - 20mA
Type of electrical connection
Connector M12
Type of switching output
Relay contact
Type of interface connection
Plug-in connection M12
Rated switching current
150mA
Setting procedure
Parameterization
Coding of interface connection
A
Load resistance (current output)
500kOhm
No-load current
140mA
Switching voltage
48V
Measurement principle
calorimetric
Number of pins of interface connection
5
Supported communication interface
Modbus RTU
Measuring range flow velocity
0.18 - 50m/s
Display
TFT display
Short circuit protection, Reverse polarity protection
5
A
Operating voltage
Electrical connection

Mechanical properties

Type of process connection
G1/2 inch
Design
Cuboid
Width
76.5mm
Pressure resistance
50bar
Height
75mm
Length
416mm
Probe length
220mm
Medium temperature
-30 - 110°C
Degree of protection (IP)
IP65
Housing material
Plastic PC
Sensing element material
Stainless steel 1.4301
dimensions

Other properties

Relative air humidity (non-condensing)
95%
Ambient temperature
-20 - 70°C
Measuring accuracy
± 1.5 % of measuring range ± 0.3 % of measuring range end
Important note
For pressure > 10 bar - order high-pressure safety device additionally
Reference medium / object
Oxygen
Version
Insertion sensor
You can find accessories for SY87F009 in these product groups:

Assembly

High pressure protection

AS000018
AS000018
Accessories, high pressure safety device for insertion sensor, sensor length 220mm, max. 50bar
379,10 €
Your price
On demand

Connection technology

Cable sockets M12 5-wire shielded

VK205621
VK205621
Connection cable, 2m, M12 socket 5-pin angular, free cable end, 5x0.34mm², PUR (polyurethane), Ø6mm, 60V, -25-90°C,…
24,00 €
Your price
Available
VK205625
VK205625
Connection cable, 2m, M12 socket 5-pin straight, free cable end, 5x0.34mm², PUR (polyurethane), Ø6mm, 60V, -25-90°C,…
24,00 €
Your price
Scarce
VK505621
VK505621
Connection cable, 5m, M12 socket 5-pin angular, free cable end, 5x0.34mm², PUR (polyurethane), Ø6mm, 60V, -25-90°C,…
29,80 €
Your price
Available
VK505625
VK505625
Connection cable, 5m, M12 socket 5-pin straight, free cable end, 5x0.34mm², PUR (polyurethane), Ø6mm, 60V, -25-90°C,…
29,80 €
Your price
Available
VKA05621
VKA05621
Connection cable, 10m, M12 socket 5-pin angular, free cable end, 5x0.34mm², PUR (polyurethane), Ø6mm, 60V, -25-90°C,…
42,20 €
Your price
Available
VKA05625
VKA05625
Connection cable, 10m, M12 socket 5-pin straight, free cable end, 5x0.34mm², PUR (polyurethane), Ø6mm, 60V, -25-90°C,…
42,20 €
Your price
Available
VKAE5625
VKAE5625
Connection cable, 15m, M12 socket 5-pin straight, free cable end, 5x0.34mm², PUR (polyurethane), Ø6mm, 60V, -25-90°C,…
51,90 €
Your price
Available
VKB05621
VKB05621
Connection cable, 20m, M12 socket 5-pin angular, free cable end, 5x0.34mm², PUR (polyurethane), Ø5.6mm, 60V, -25-90°C,…
62,80 €
Your price
Available
VKB05625
VKB05625
Connection cable, 20m, M12 socket 5-pin straight, free cable end, 5x0.34mm², PUR (polyurethane), Ø5.6mm, 60V, -25-90°C,…
62,00 €
Your price
Available

Gateway

Process data acquisition

BY000002
BY000002
IIoT Gateway, Master Module, 25x139x110 mm, RS485, CAN, 6x DI/DO, 4x 0-10 V / 4-20 mA, USB, terminal blocks, IP20
968,00 €
Your price
Available
Classification Class
eClass-7.0 27371815
eClass-7.1 27371815
eClass-8.0 27371815
eClass-9.0 27371815
eClass-9.1 27371815
ETIM-6.0 EC002580
ETIM-7.0 EC002580
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 725 compressed air and leakage measurement
packaging dimensions
Customs tariff number 90268020
WEEE number 40951076
