Encoder - parameterizable

VD589821

VD589821
List price
342,90 €
amount price discount
1 342,90 €
5 332,61 € 3% / 10,29 €
10 325,76 € 5% / 17,15 €
20 315,47 € 8% / 27,43 €
50 301,75 € 12% / 41,15 €
Scarce
Encoder, programmable, Ø58mm 68long, solid shaft 10mm, 65536 pulses, 5-30V diagnostic coverage, M12 connector 8-pin, IP65, aluminum
Compare

Encoder - parameterizable

A rotary encoder is a device that converts a rotary motion into a digital output signal, which can be processed on a subsequent evaluation electronics. All of our encoders operate according to the principle of optical scanning. Inside the device there is a pulse disc on which is – depending on the encoder - a unique (absolute) or repetitive (incremental) line graduation, which is scanned by an optical system. The turning of the encoder shaft causes rotation of the pulse disc, which results in a corresponding sampling signal of the optical system. This is finally implemented by an integrated electronics in encoder-specific output signals (e.g. multi-turn, RS422 etc.). For professional installation in many applications, shaft couplings or resilient bases for mounting brackets or flanges are used. In addition, the encoder shaft can be equipped with measuring wheels or pinions in various designs and sizes.Typical applications include the angle measurement on bending machines, length measuring of belt systems or speed measurement on winding systems.

Electrical properties

Type of electrical connection

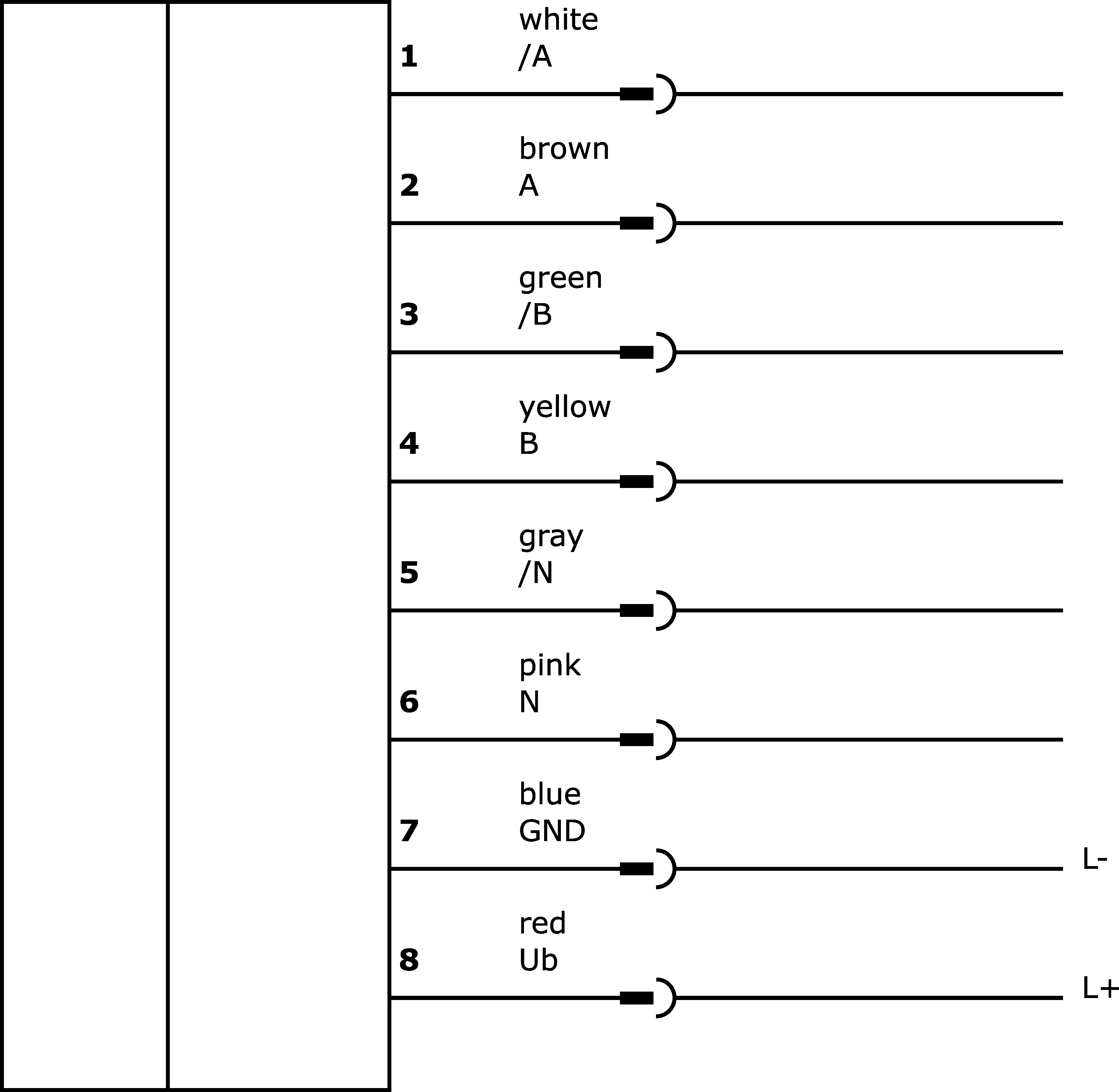

Connector M12
Rated switching current
20mA
Setting procedure
Application software
Increments per revolution
65,536
Short-circuit protection
Yes
Shaft length
10
No-load current
45mA
Number of pins
8
Switching frequency
900,000Hz
Signal outputs
A+B+0(+inverted)
Reverse polarity protection
No
Measurement principle
Optical
Supported communication interface
USB
Operating voltage (DC)
5 - 30V
Adjustable increments
Yes

Mechanical properties

Type of encoder shaft
Full shaft
Axial load capacity of shaft
40N
Encoder size
58
Torque
0.01Nm
Shaft diameter
10mm
Cable infeed
radial
Length
68.5mm
Max. rotation speed
6,000UpM
Radial load capacity of the shaft
40N
Shock resistance, acceleration
100g
Shock resistance, pulse time
6ms
Degree of protection (IP)
IP65
Moment of inertia
30gcm²
Vibration resistance, acceleration
10g
Housing material
Aluminum
Shaft bearing
Ball bearing
Bearing life
10,000,000,000Umdrehungen
Vibration resistance Frequency
16 - 2,000Hz
Diameter
58mm

Other properties

Ambient temperature
-20 - 80°C
Version
Incremental encoder
You can find accessories for VD589821 in these product groups:

Adapter M12 socket 8-pin / M23 connector 12-pin

Cable sockets M12 8-wire shielded

Fixing material, encoder VD58982x

Cable sockets M12 8-wire non-shielded

Connection cable USB2.0

Accessories for VD589821

Classification Class
eClass-7.0 27270590
eClass-7.1 27270590
eClass-8.0 27270590
eClass-9.0 27270590
eClass-9.1 27270590
ETIM-6.0 EC001486
ETIM-7.0 EC001486
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 520 encoders
packaging dimensions 130 x 110 x 140mm
gross weight 410g
Customs tariff number 90318020
WEEE number 40951076
