DISCONTINUED PRODUCT

VK000027

VK000027
List price
74,00 €
Successor model?
We would be pleased to advise you!
Scarce

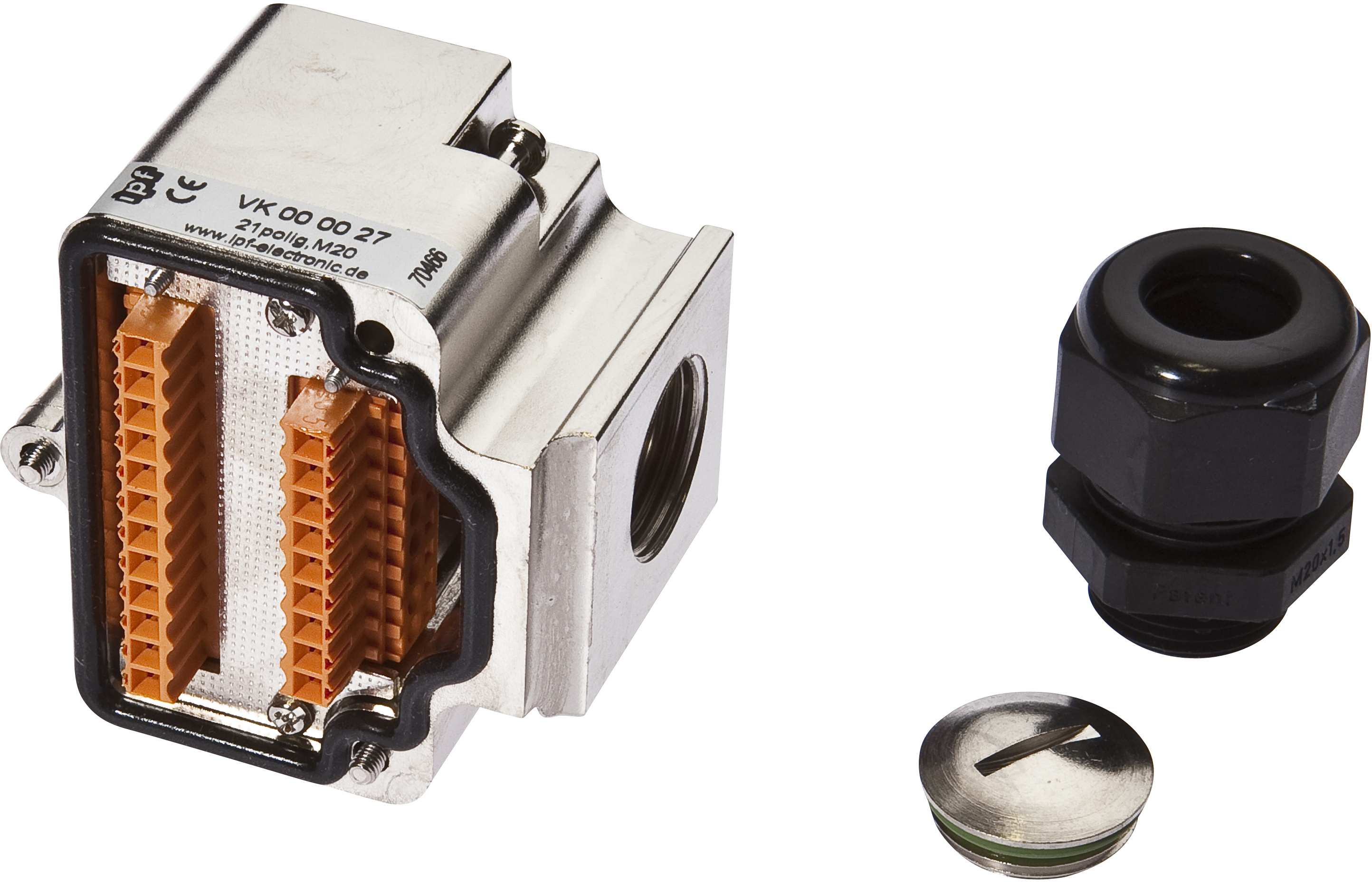

Coupler, Angular, Suitable for self-assembly, Screw connection, M20 x 1.5, Ø10-14mm, 2A, 30V, -20-90°C, Flange connector Female (socket) 21pin, Zinc die-cast
3D model
Compare

Connection technology - Cable sockets / connectors for self-assembly

The wiring of sensors and actors is considerably more comfortable with our sensor distribution box. The individual devices are connected with the distrubutor via an M8 or M12 cable that is pre-assembled on both sides. By means of the trunk line the effort for laying and wiring the cables can be reduced significantly. The operating mode display provides information about the sensors operating mode (operatig voltage, switching state). Thus, troubleshooting is simpler, as an overview about the functioning of the connected periphery is directly given.

Electrical properties

Type of plug-in contact, A connection
Female (socket)
Type of A electrical connection
Flange connector
Type of B electrical connection
Screw connection
Number of pins of A connection
21
Ampacity
2A

Mechanical properties

Type of cable gland
M20 x 1.5
Wire cross section
0.08 - 1.5mm²
Cable infeed
angular
Housing material
Zinc die-cast
Contact body material
Plastic (PBT)
Permitted cable diameter
10 - 14mm
Contact material
CuZn

Other properties

Ambient temperature
-20 - 90°C
Classification Class
eClass-7.0 27440102
eClass-7.1 27440102
eClass-8.0 27440102
eClass-9.0 27440102
eClass-9.1 27440102
ETIM-6.0 EC002062
ETIM-7.0 EC002062
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 855 cable sockets / connectors (distributor, accessories, diverse)
packaging dimensions 76 x 50 x 121mm
gross weight 390g
1,03kg CO₂e
Customs tariff number 85369010
WEEE number 40951076
