Connection technology - Connection adapters

VK000036

VK000036
List price
14,10 €
Available
Adaption, M8 Female (socket) 3pin Straight, M12 Male (connector) 3pin Straight, 24V, -25-85°C, IP67, Oil and cooling lubricants, Welding area

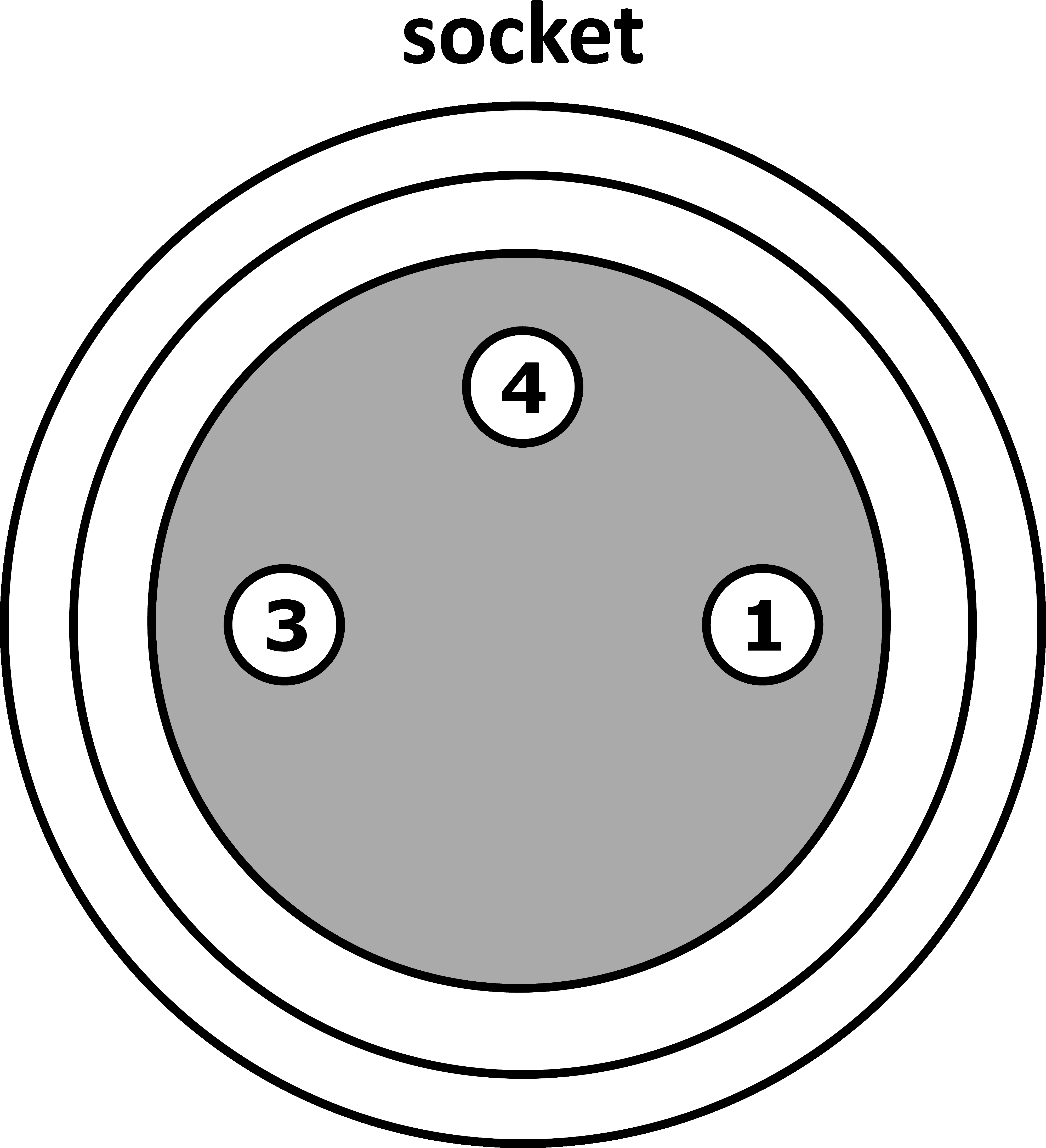

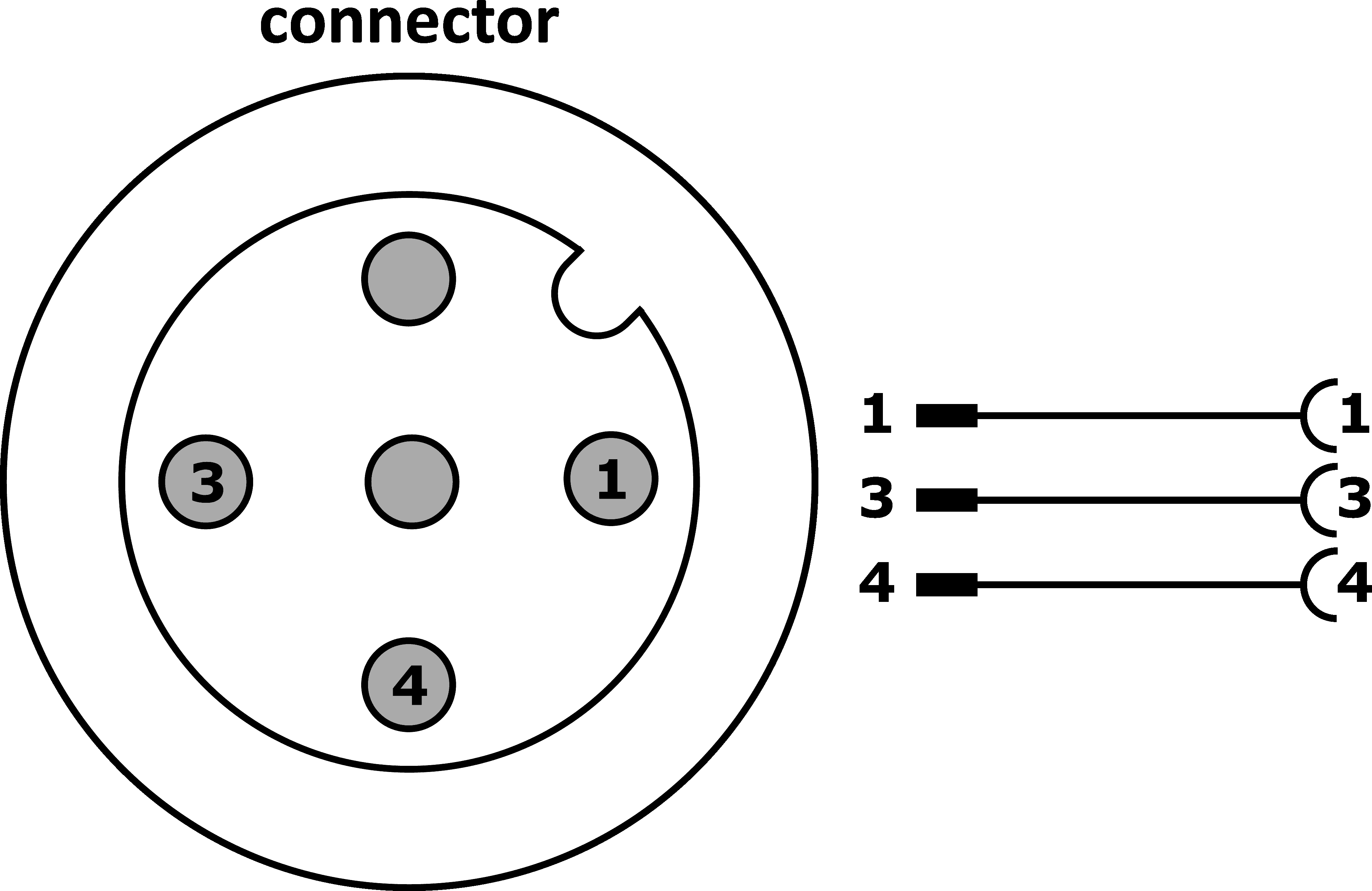

circuit diagram
3D model
Compare

Connection technology - Connection adapters

With this connection adapter, existing electronic plug connections can be adapted in just a few simple steps. This eliminates the need for laborious line replacement.

The VK000036 adapts an existing 3-pin M8 junction box to a 3-pin M12 junction box.

.

Electrical properties

Type of plug-in contact, A connection
Female (socket)
Type of plug-in contact, B connection
Male (connector)
Type of A electrical connection
M8
Type of B electrical connection
M12
Number of pins of A connection
3
Number of pins of B connection
3
Ampacity
4A
Coding of connection A
A
Coding of connection B
A

Mechanical properties

Cable infeed of A connection
straight
Cable infeed of B connection
straight
Maximum tightening torque of connection A
0.4Nm
Maximum tightening torque of connection B
0.6Nm
Degree of protection (IP)
IP67
Housing material
PUR (Polyurethane)
Material of the screw fitting
Zinc diecast, nickel-plated (n-pltd)

Other properties

Flame retardant
No
Ambient temperature
-25 - 85°C
