Connection technology - Cable socket / connector Y-connection cable

VK000048

VK000048
List price
39,50 €
Available
Distribution terminal, 2x M8 3-pin, M8 4-pin

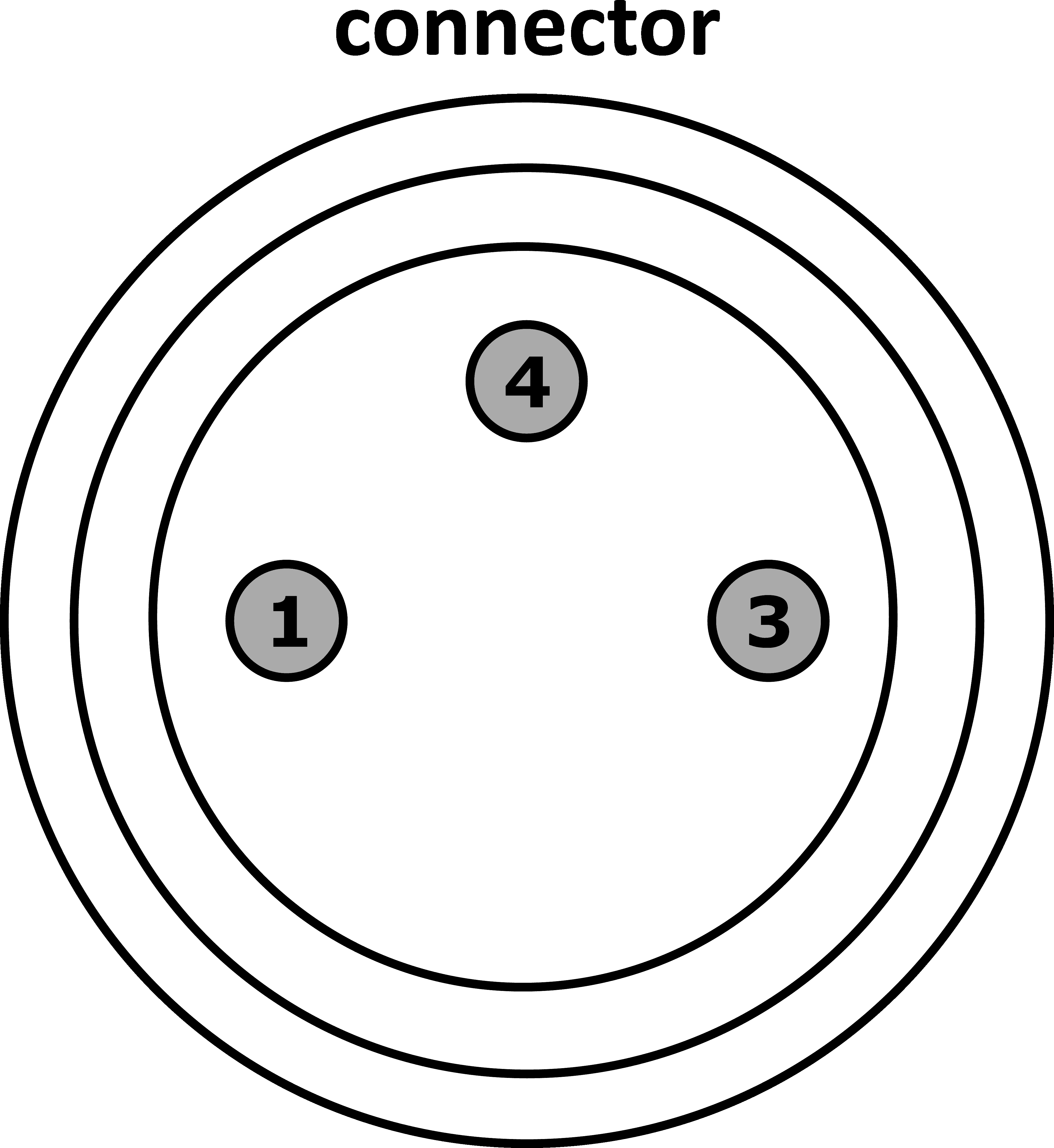

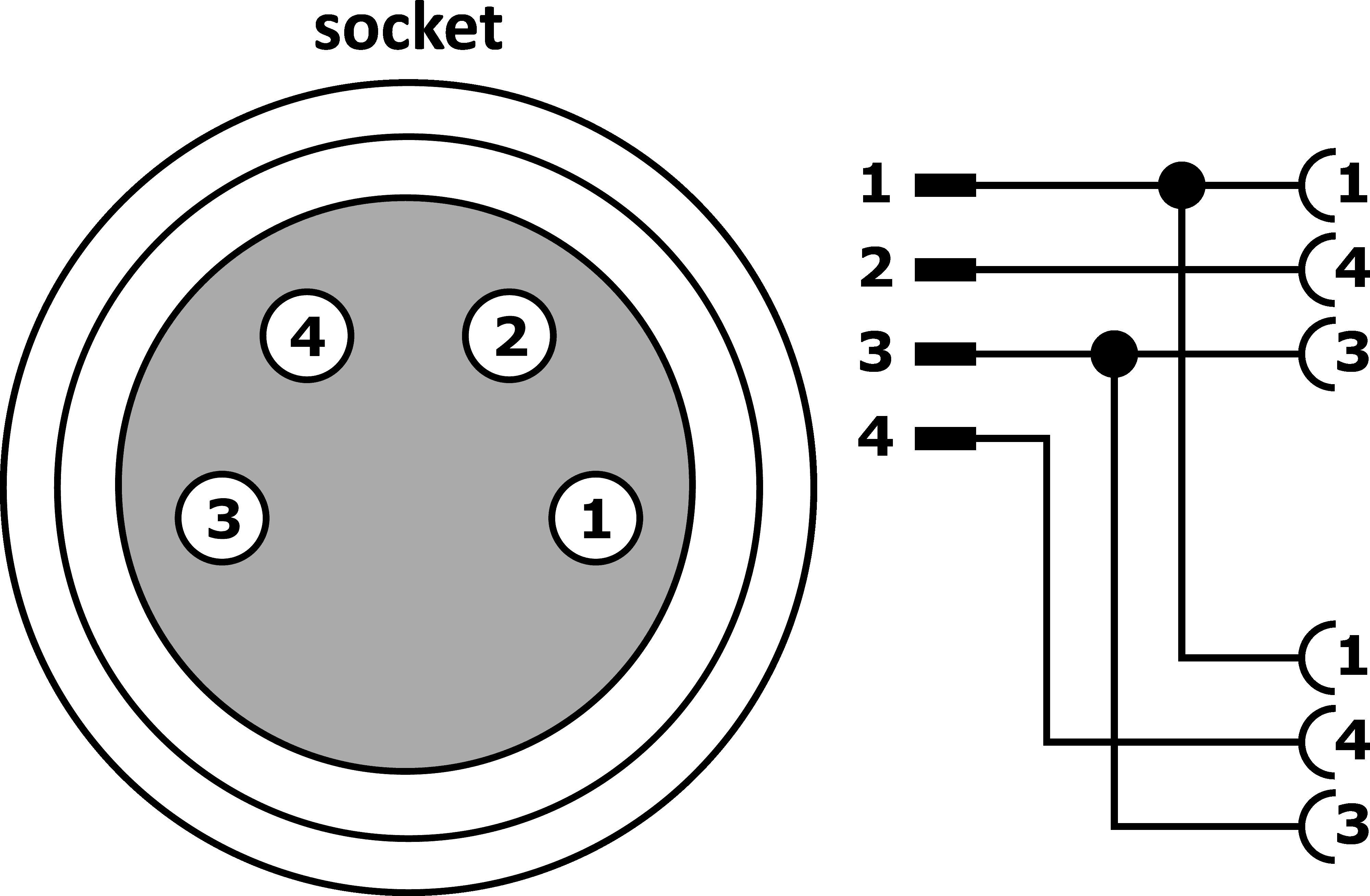

circuit diagram
3D model
Compare

Connection technology - Cable socket / connector Y-connection cable

The wiring of sensors and actors is considerably more comfortable with our sensor distribution box. The individual devices are connected with the distrubutor via an M8 or M12 cable that is pre-assembled on both sides. By means of the trunk line the effort for laying and wiring the cables can be reduced significantly. The operating mode display provides information about the sensors operating mode (operatig voltage, switching state). Thus, troubleshooting is simpler, as an overview about the functioning of the connected periphery is directly given.

Electrical properties

Number of electrical connections, A connection
2
Number of electrical connections, B connection
1
Type of A electrical connection
M8
Type of B electrical connection
M8
Number of pins of A connection
4
Number of pins of B connection
3
Number of pins of trunk line
4

Mechanical properties

Line diameter
4mm
Number of cores
4
Cable length
0.3m
bending cycles
5 million cycles
Torsion cycles
+/-360°/m, ≥ 2 million cycles
Classification Class
eClass-7.0 27279218
eClass-7.1 27279218
eClass-8.0 27279218
eClass-9.0 27060313
eClass-9.1 27060313
ETIM-6.0 EC002585
ETIM-7.0 EC002585
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
SCIP number 75306673-9420-443e-bfcb-5ff45cd82f01
IPF Product Group 855 cable sockets / connectors (distributor, accessories, diverse)
packaging dimensions 120 x 20 x 170mm
gross weight 40g
0,68kg CO₂e
Customs tariff number 85444290
WEEE number 40951076
