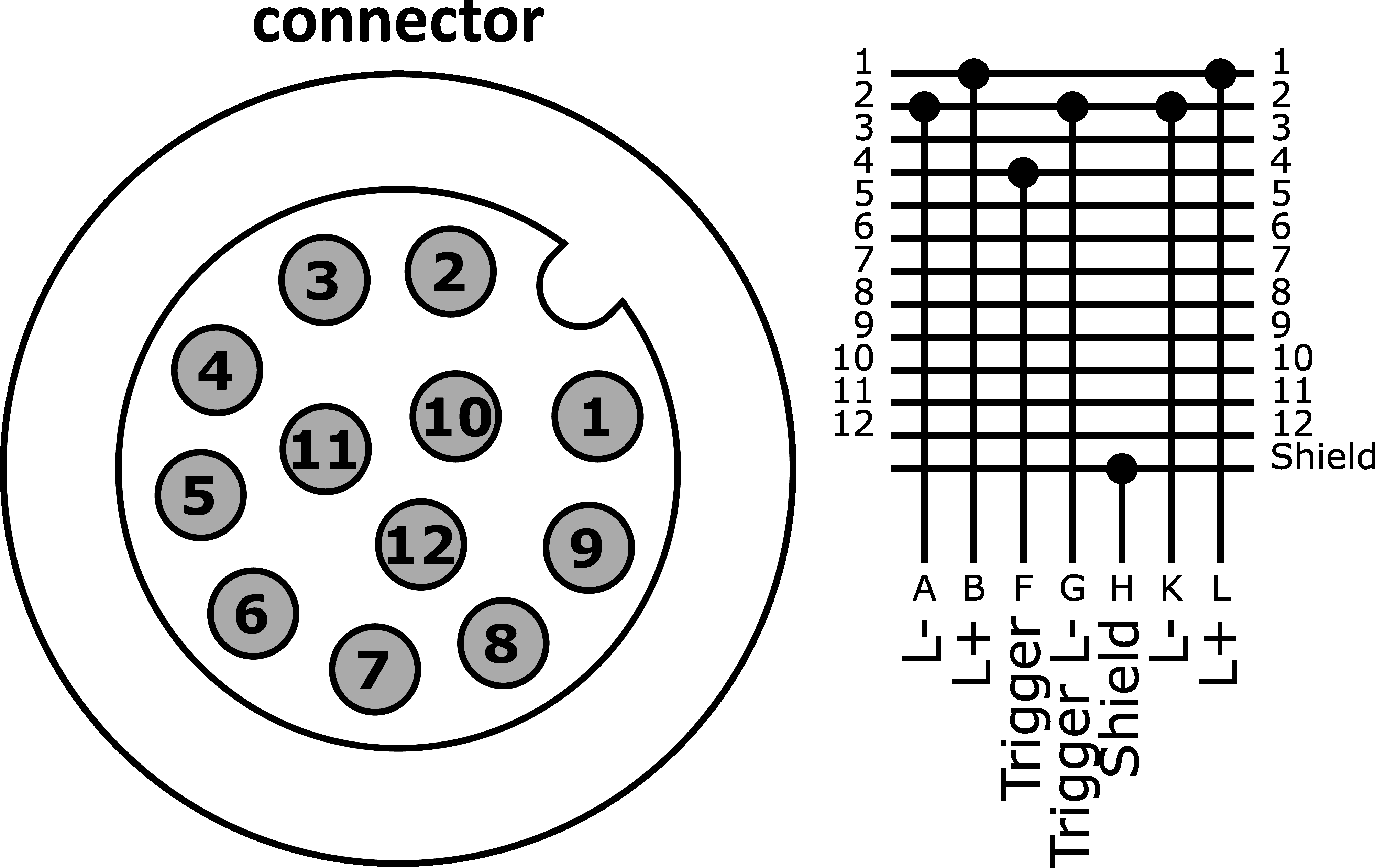

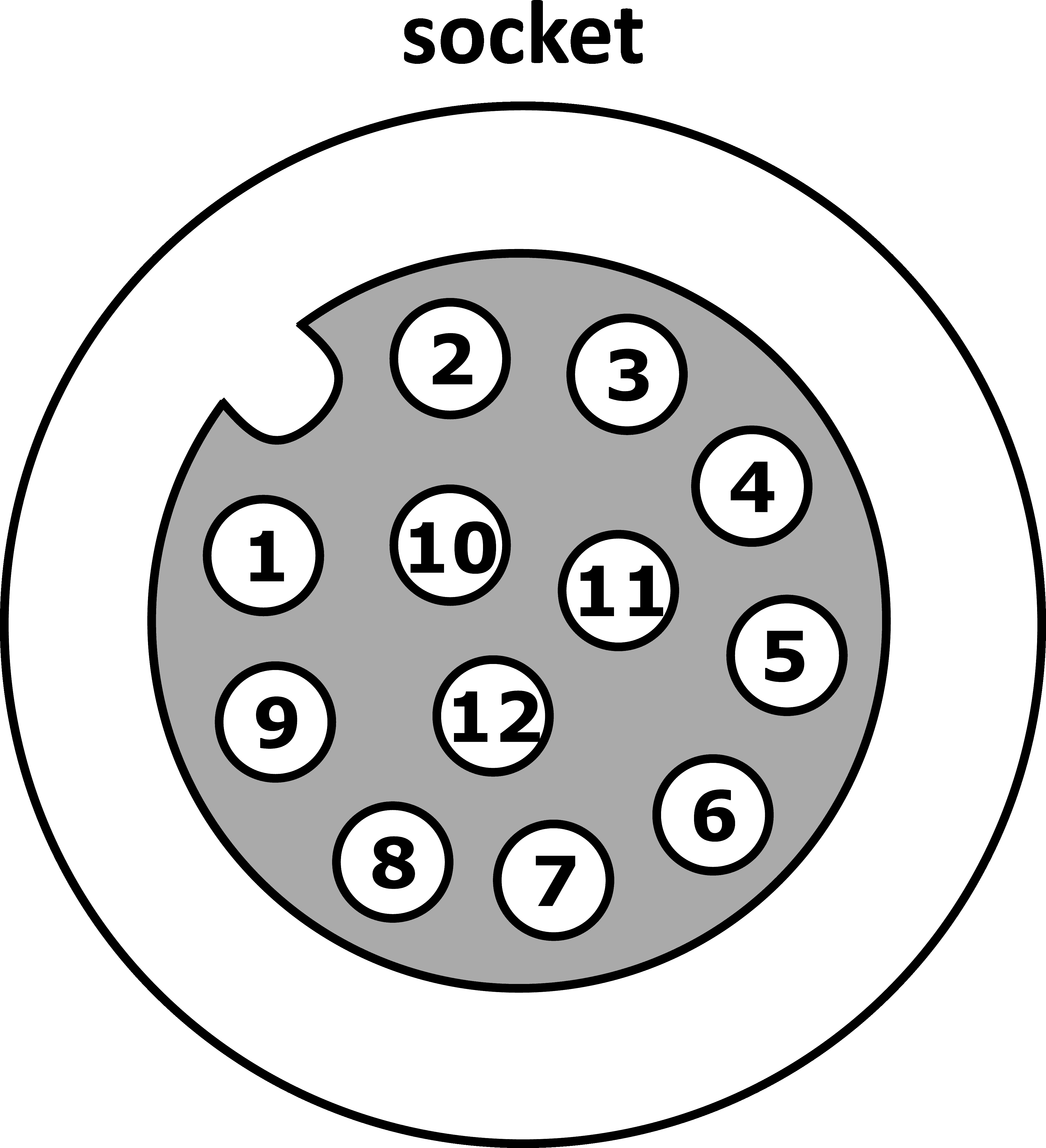

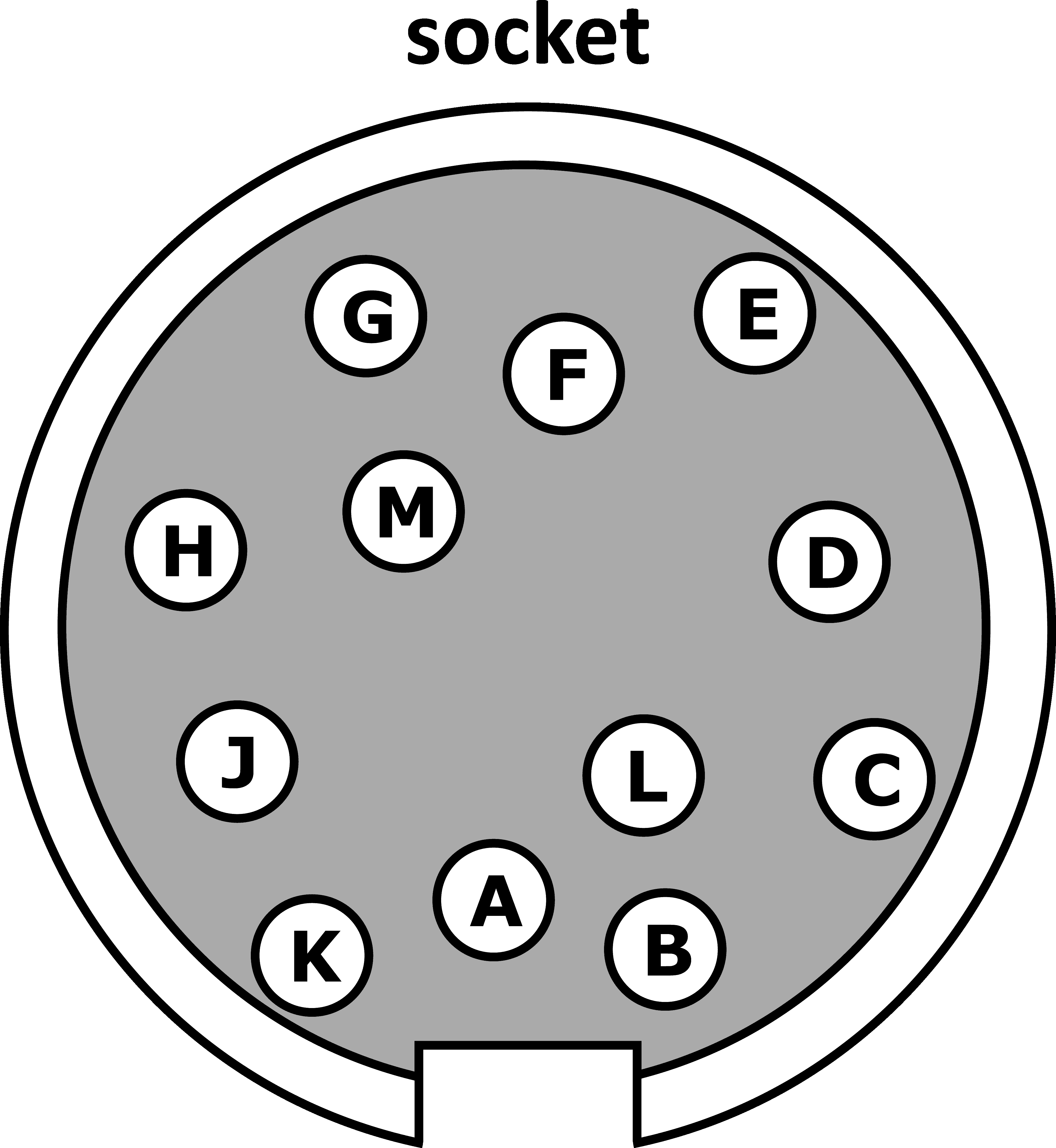

Y-connection cable, 0.05m, 2x M12 12-pin straight, 1x M16 socket 12-pin straight, 0.34mm², PUR (polyurethane) black, Ø6.5mm, suitable for trailing chain and torsion resistant
Compare
Connection technology - Cable socket / connector Y-connection cable
ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.
Electrical properties
- Number of electrical connections, A connection
- 2
- Number of electrical connections, B connection
- 1
- Type of A electrical connection
- M12
- Type of B electrical connection
- M16
- Number of pins of A connection
- 12
- Number of pins of B connection
- 12
- Number of pins of trunk line
- 12
mechanical properties
- Line diameter
- 6.5mm
- Conductor cross-section
- 0.34mm²
- Number of cores
- 12
- Cable length
- 0.05m
- Cable infeed of A connection
- straight
- Cable infeed of B connection
- straight
- material of cable sheath
- plastic (PUR)
- material properties
- halogen-free
other properties
- Flame retardant
- No
- Applications
- Suitable for trailing chain
Tool
Key inserts for torque wrenches
Scarce
Scarce
Available
Torque wrench SW9 / SW13
| Classification | Class |
|---|---|
| eClass-7.0 | 27279218 |
| eClass-7.1 | 27279218 |
| eClass-8.0 | 27279218 |
| eClass-9.0 | 27060313 |
| eClass-9.1 | 27060313 |
| ETIM-6.0 | EC002585 |
| ETIM-7.0 | EC002585 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 855 cable sockets / connectors (distributor, accessories, diverse) |
| packaging dimensions | |
| gross weight | 106g |
| Carbon footprint | 1,89kg CO₂e |
| customs tariff number | 85444290 |
| WEEE number | 40951076 |
