Connection technology - Y-distribution terminal

VK000058

VK000058
List price
21,20 €
Scarce
distributor, 19x56x19mm, 2x M8 3pin, M12 4pin, IP67, 4A

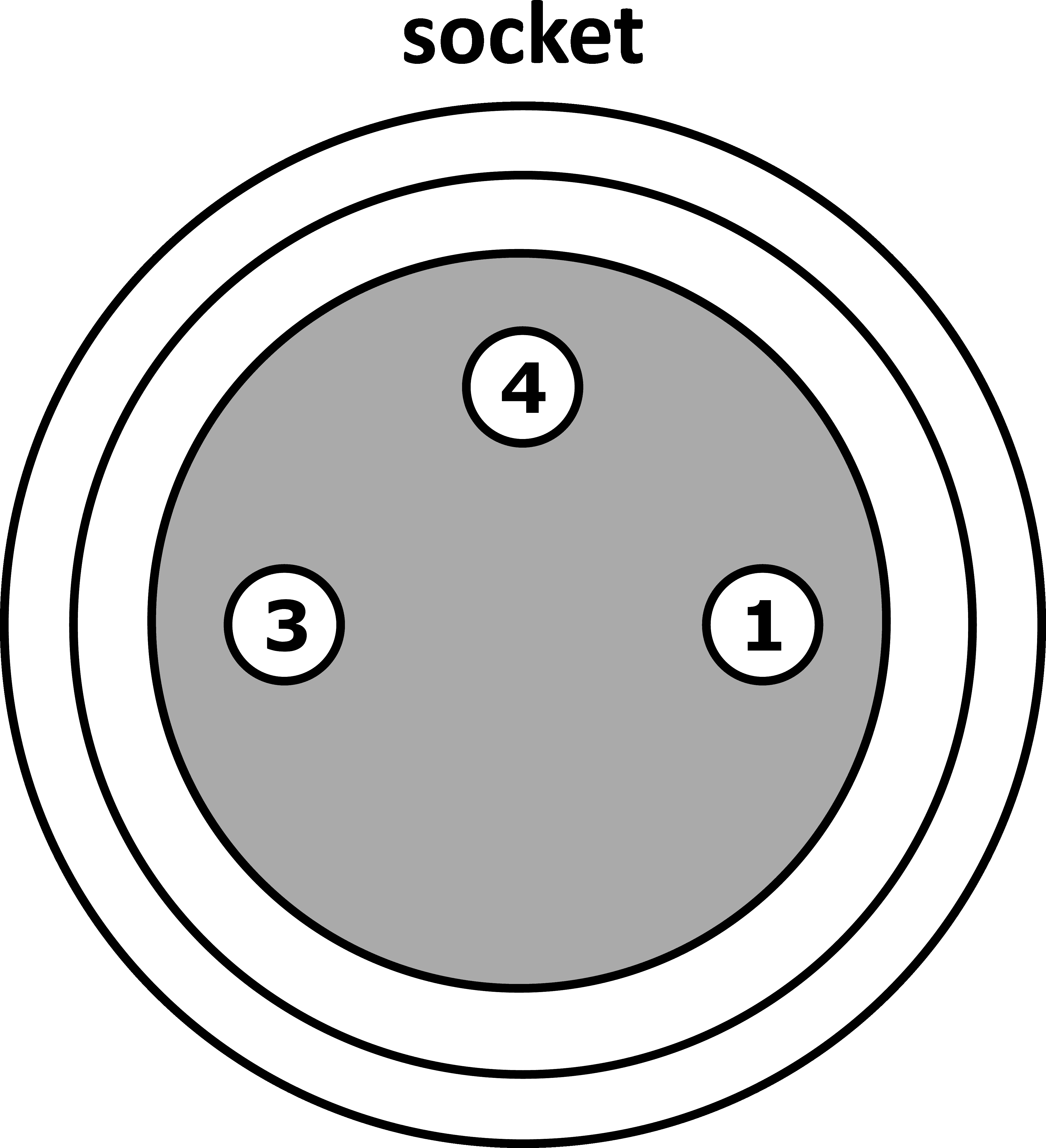

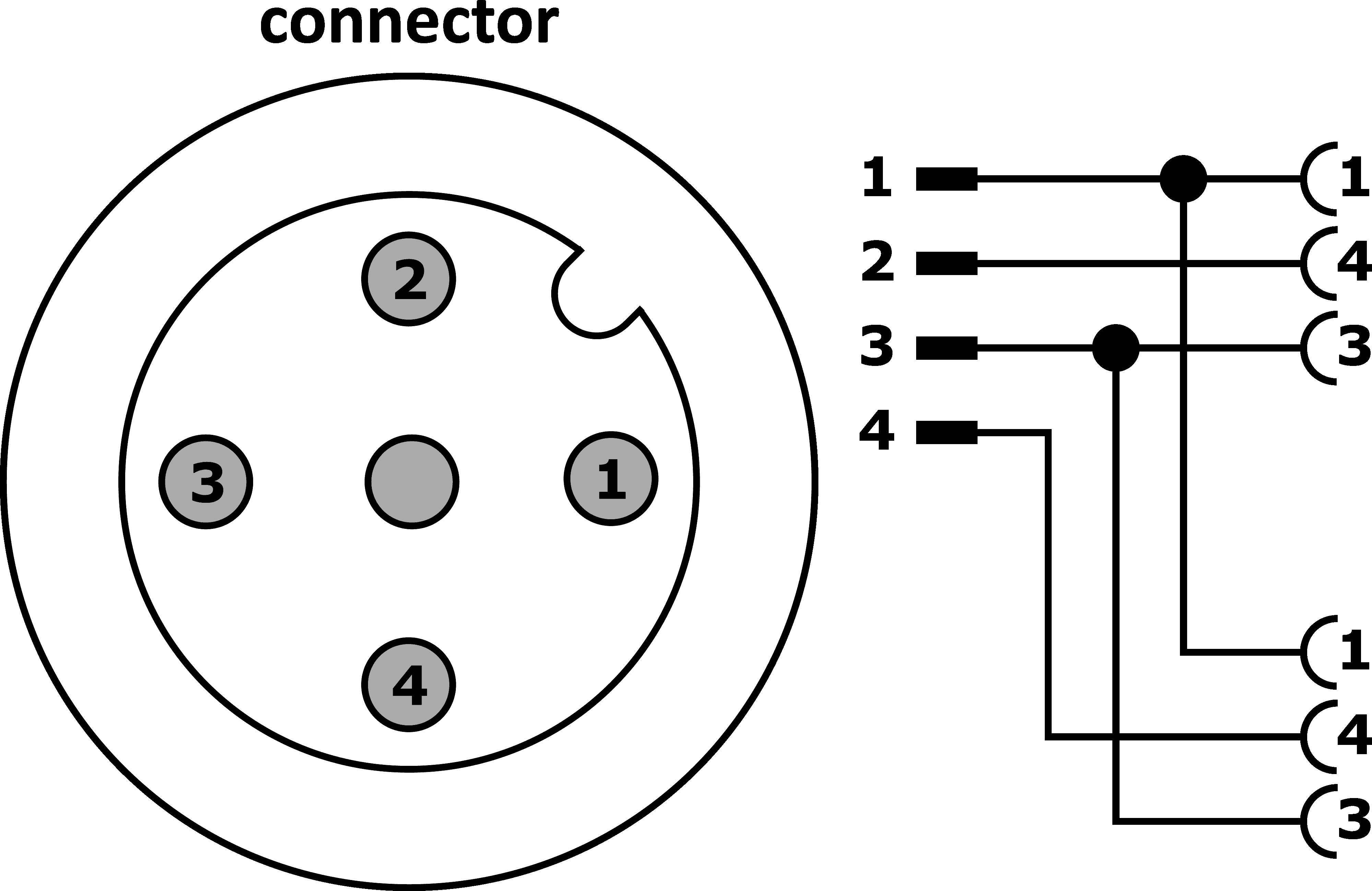

circuit diagram
dimensional drawing
3D model
Compare

Connection technology - Y-distribution terminal

Electrical properties

Type of plug-in contact, A connection
Female (socket)
Type of plug-in contact, B connection
Male (connector)
Type of A electrical connection
M8
Type of B electrical connection
M12
Max. total current
4A
Number of pins of slots
3
Number of pins of trunk line
4
Number of slots
2

Mechanical properties

Type of cable gland
none
Width
19mm
Height
15mm
Length
57.3mm
Degree of protection (IP)
IP67
Contact coating material
Gold
Insulating body material
Plastic (TPU)
Contact body material
Brass
Material of the screw fitting
Brass

Other properties

Ambient temperature
-30 - 90°C
