Cable connector, straight, self-assembly, screw connection, Ø4-8mm, 2A, 30V, -30-80°C, M12 connector 8pin, IP67

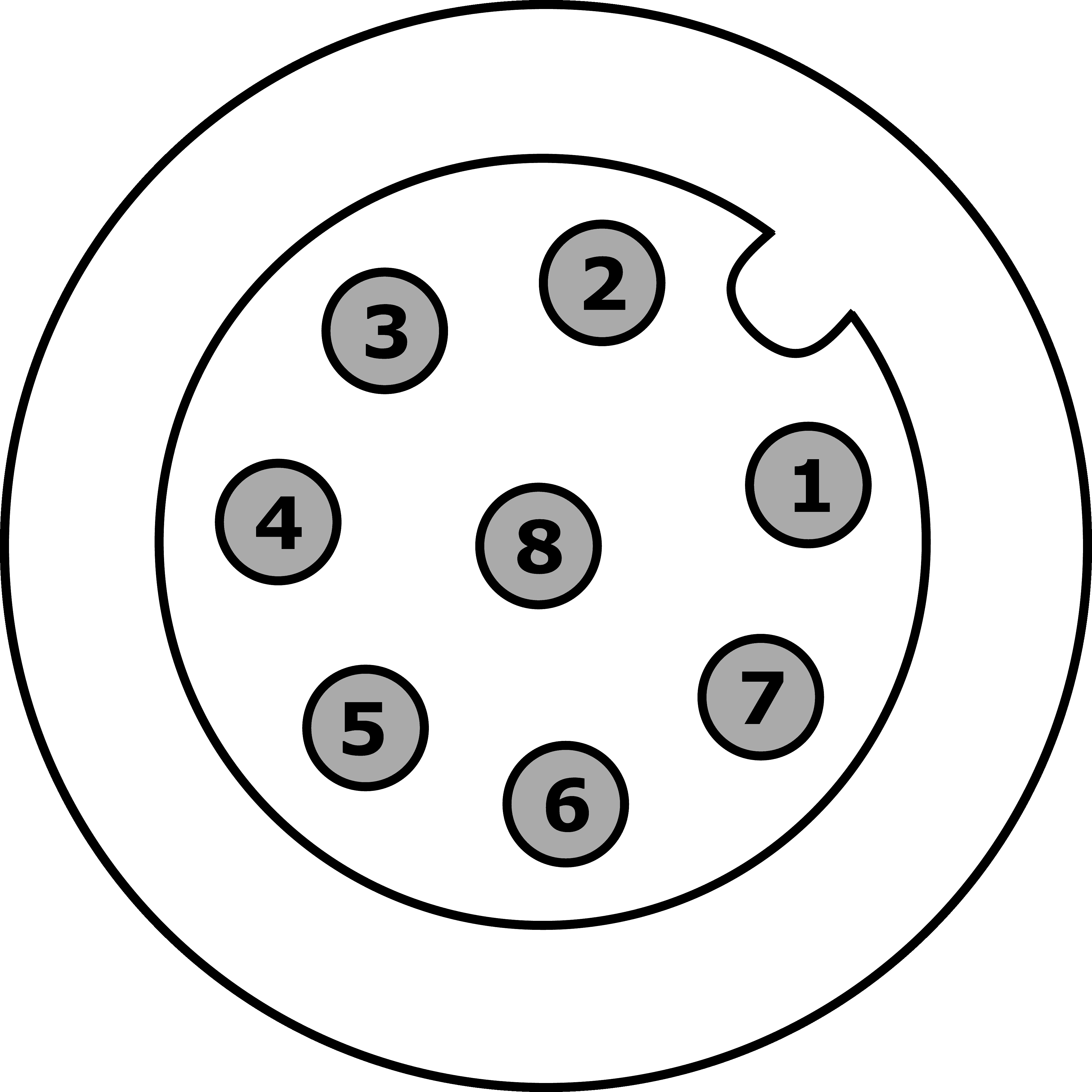

circuit diagram
dimensional drawing
3D model
Compare

Connection technology - Cable sockets / connectors for self-assembly

ipf cable boxes are mainly used to establish the electrical connection of sensors. Their characteristics are defined by the robust version, in highest protection classes (IP67 | IP68 | IP69K) and on request with 360° shielding. With the features: bus-compatible, drag chain and robot-compatible, oil-, chemical-resistant, welding spark-resistant, their detergent-resistant or resistance to high-pressure and steam jet cleaning, the extended temperature range up to +230°C, the rapid interconnection (technology) or special data transmission properties, the cable boxes meet all requirements of automation technology.

Electrical properties

Type of plug-in contact, A connection
Male (connector)
Type of A electrical connection
M12
Type of B electrical connection
Screw connection
Number of pins of A connection
8
Ampacity
2A
Coding of connection A
A

Mechanical properties

Wire cross section
0.5mm²
Cable infeed
straight
Cable infeed of A connection
straight
Degree of protection (IP)
IP67
Housing material
Plastic
Contact body material
Brass
Permitted cable diameter
4 - 8mm
Material of the screw fitting
Brass

Other properties

Ambient temperature
-30 - 80°C
Classification Class
eClass-7.0 27440102
eClass-7.1 27440102
eClass-8.0 27440102
eClass-9.0 27440102
eClass-9.1 27440102
ETIM-6.0 EC002062
ETIM-7.0 EC002062
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 852 cable sockets / connectors (self-assembly)
packaging dimensions 100 x 20 x 120mm
gross weight 23g
0,07kg CO₂e
Customs tariff number 85369010
WEEE number 40951076
