Connection technology - Cable sockets / connectors for self-assembly

VK003045

VK003045
List price
18,50 €
On demand
Cable socket, Straight, Suitable for self-assembly, Soldering connection, Ø3-6mm, 5A, 125V, -40-85°C, M16 Female (socket) 7pin, IP40, Polyamide PA

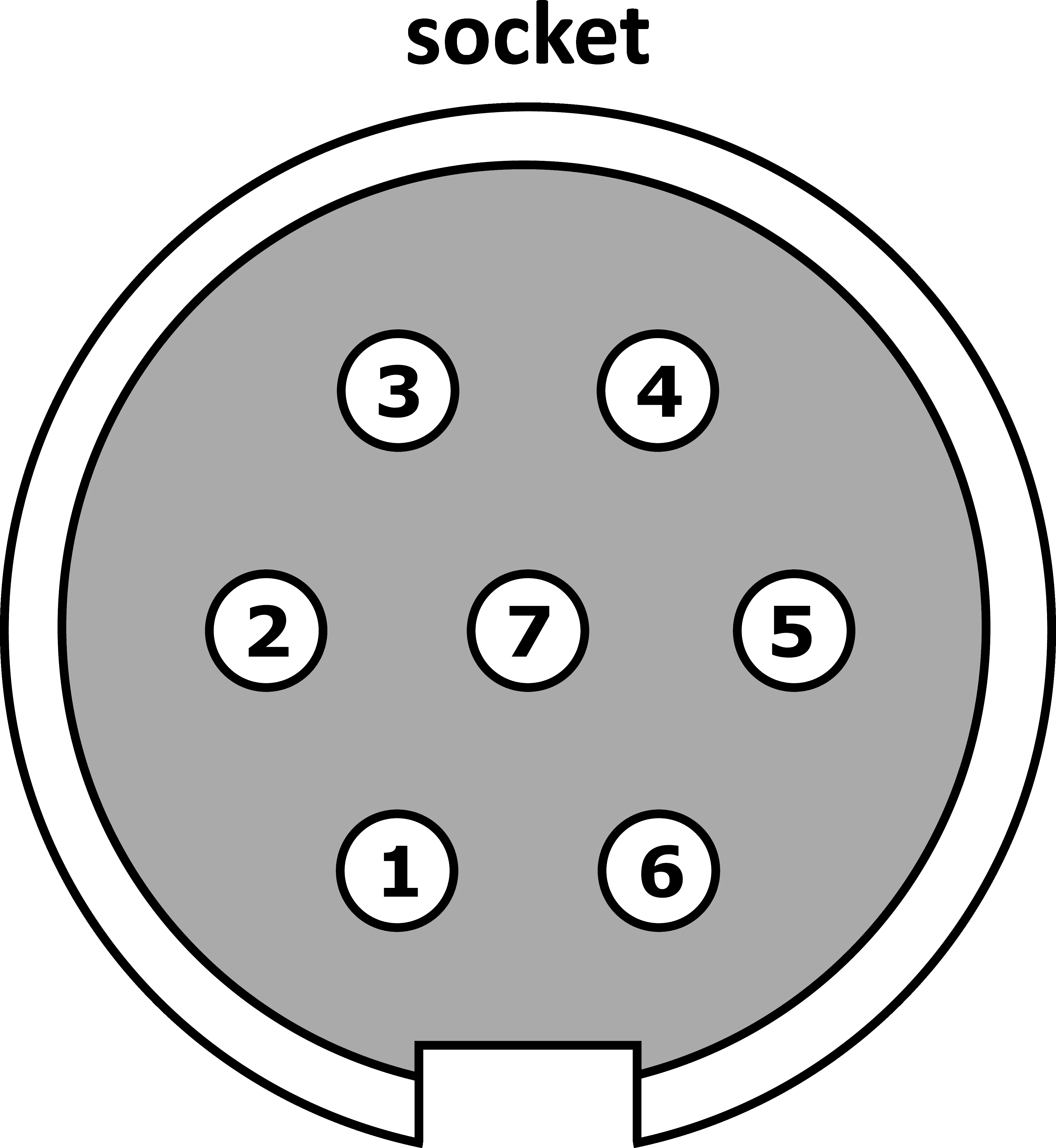

circuit diagram
3D model
Compare

Connection technology - Cable sockets / connectors for self-assembly

ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.

Electrical properties

Type of plug-in contact, A connection
Female (socket)
Type of A electrical connection
M16
Type of B electrical connection
Soldering connection
Number of pins of A connection
7
Ampacity
5A

mechanical properties

Wire cross section
0.75mm²
Cable infeed
straight
Cable infeed of A connection
straight
Degree of protection (IP)
IP40
Housing material
Polyamide PA
Contact body material
Plastic (PBT)
Permitted cable diameter
3 - 6mm
Contact material
CuSn

other properties

Ambient temperature
-40 - 85°C
Classification Class
eClass-7.0 27440102
eClass-7.1 27440102
eClass-8.0 27440102
eClass-9.0 27440102
eClass-9.1 27440102
ETIM-6.0 EC002062
ETIM-7.0 EC002062
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 852 cable sockets / connectors (self-assembly)
packaging dimensions 100 x 25 x 120mm
gross weight 20g
Carbon footprint 2,25kg CO₂e
customs tariff number 85369010
WEEE number 40951076
