Connection technology - Cable sockets / connectors for self-assembly

VK003S75

VK003S75
List price
14,30 €
Available
Cable socket, Straight, Suitable for self-assembly, Quick connection, Ø4-5.1mm, 4A, 32V, -25-85°C, M8 Female (socket) 4pin, IP67
including
Compare

Connection technology - Cable sockets / connectors for self-assembly

ipf cable sockets are used primarily for establishing the electrical connection of sensors. Their features are characterized by rugged design, the highest protection classes (IP67 | IP68 | IP69K) and, if desired, with 360° shielding. With the features: bus-ready, suitable for use with drag chains and robots, resistance to oil and chemicals, resistance to welding sparks, their resistance to cleaning agents or high-pressure and steam-jet cleaning, the expanded temperature range of up to +230°C, the rapid interconnection technology and special data transmission properties, the cable sockets meet all requirements in automation technology.

Electrical properties

Type of plug-in contact, A connection
Female (socket)
Type of A electrical connection
M8
Type of B electrical connection
Quick connection

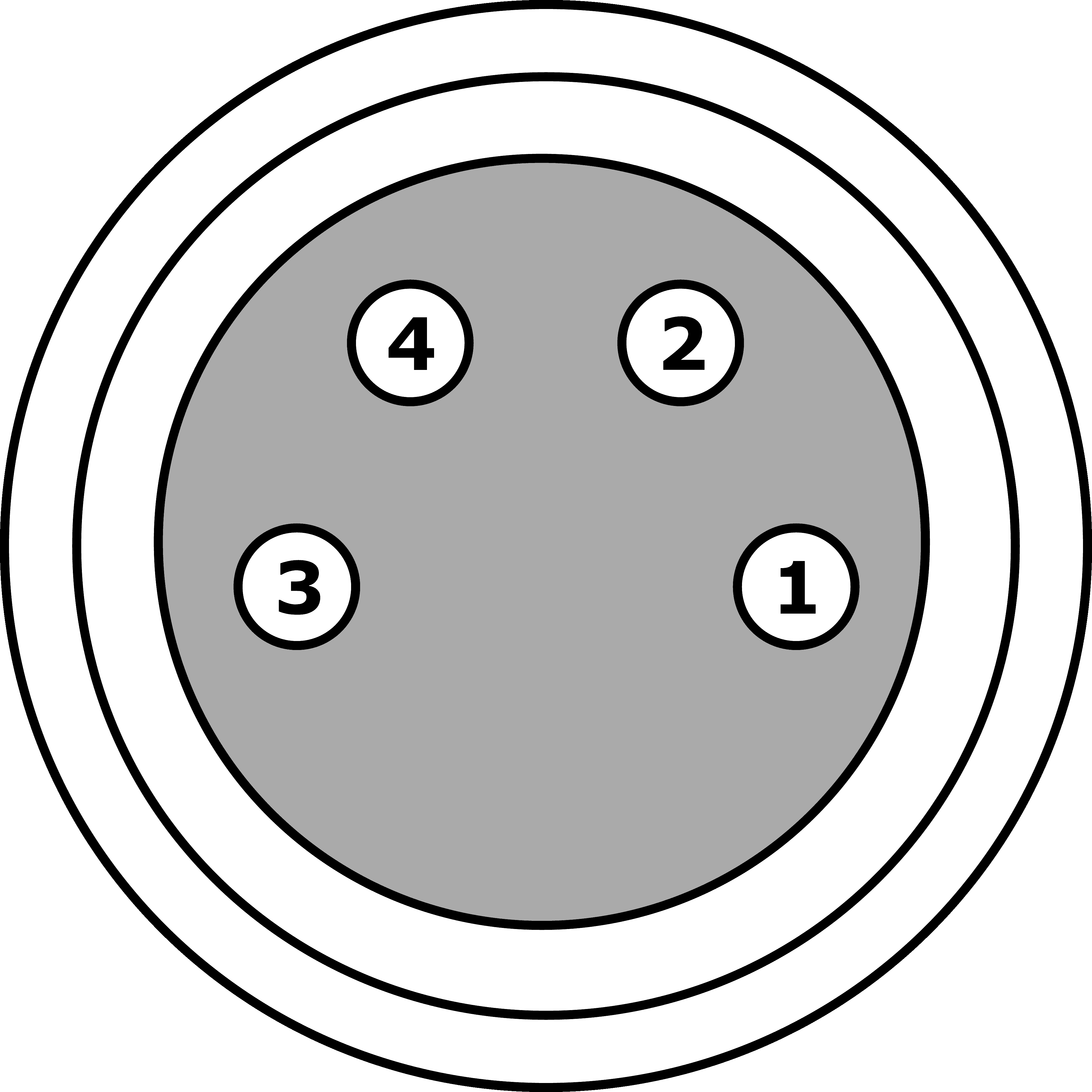

Number of pins of A connection
4
Ampacity
4A
Operating voltage (AC 50Hz)
32V
Operating voltage (DC)
32V

Mechanical properties

Wire cross section
0.14 - 0.34mm²
Cable infeed
straight
Degree of protection (IP)
IP67
Contact coating material
Gold
Permitted cable diameter
4 - 5.1mm

Other properties

Ambient temperature
-25 - 85°C
Version
Cable socket
Classification Class
eClass-7.0 27440102
eClass-7.1 27440102
eClass-8.0 27440102
eClass-9.0 27440102
eClass-9.1 27440102
ETIM-6.0 EC002062
ETIM-7.0 EC002062
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
IPF Product Group 852 cable sockets / connectors (self-assembly)
packaging dimensions 165 x 16 x 180mm
gross weight 20g
Customs tariff number 85369010
WEEE number 40951076
