VK06F002
Available

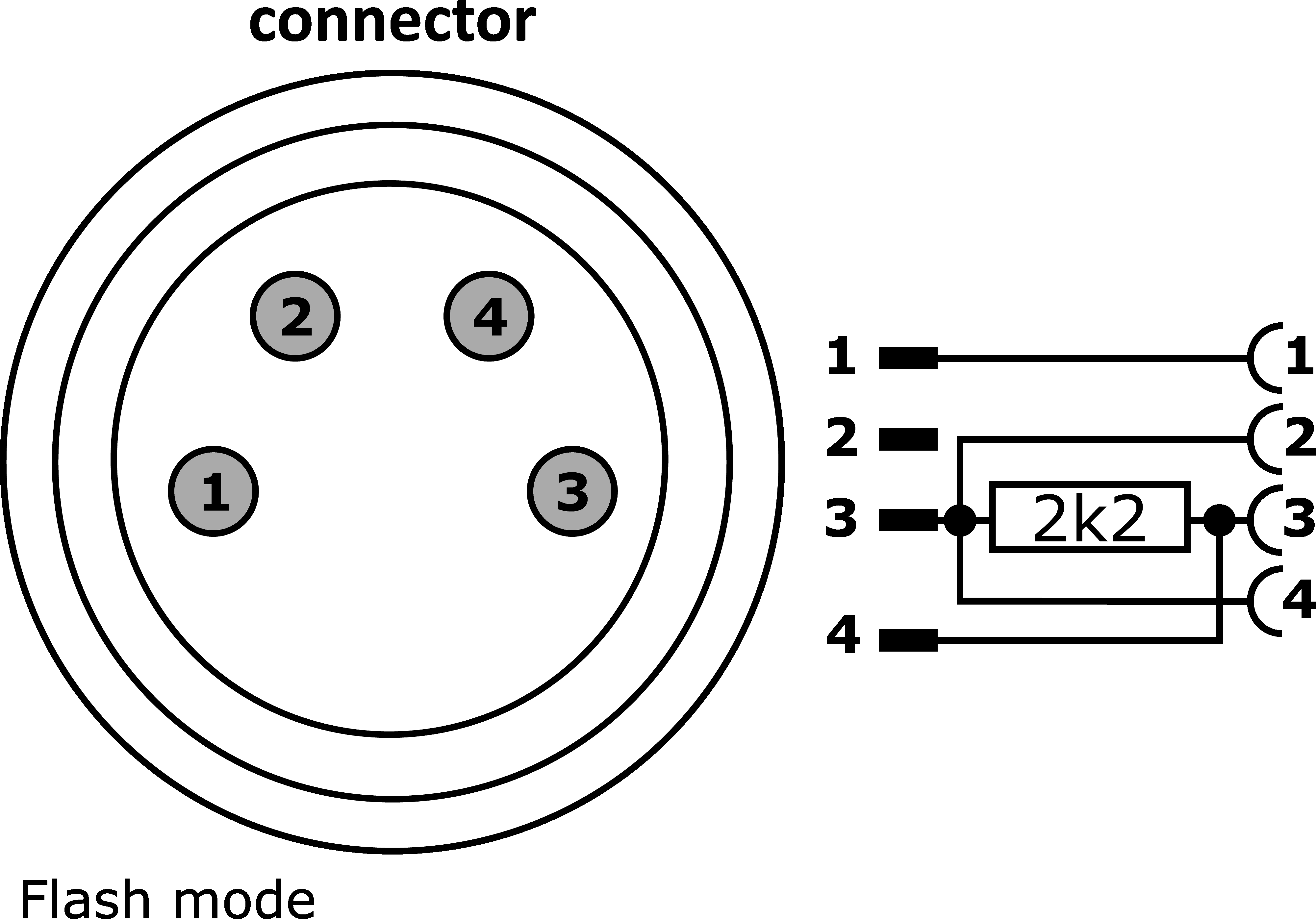

Cable for camera illumination in flash mode to OC53 with internal flash controller, 0.6m, M8 socket 4pin straight, M8 plug 4pin straight, 4 wires
Compare
Connection technology - Cable sockets / connectors pre-assembled on two sides
ipf cable sockets are mainly used to establish the electrical connection of sensors. Their properties are characterized by the robust design, in highest protection classes (IP67 | IP68 | IP69K) and on request with a 360° shielding. With the properties: bus-compatible, drag chain and robot-compatible, oil-resistant, chemical-resistant, welding spark-resistant, their detergent-resistant or resistance to high-pressure and steam jet cleaning, the extended temperature range up to +230°C, the quick-connection technology or special data transmission properties, the cable sockets meet all requirements of automation technology.
Electrical properties
- Type of plug-in contact, A connection

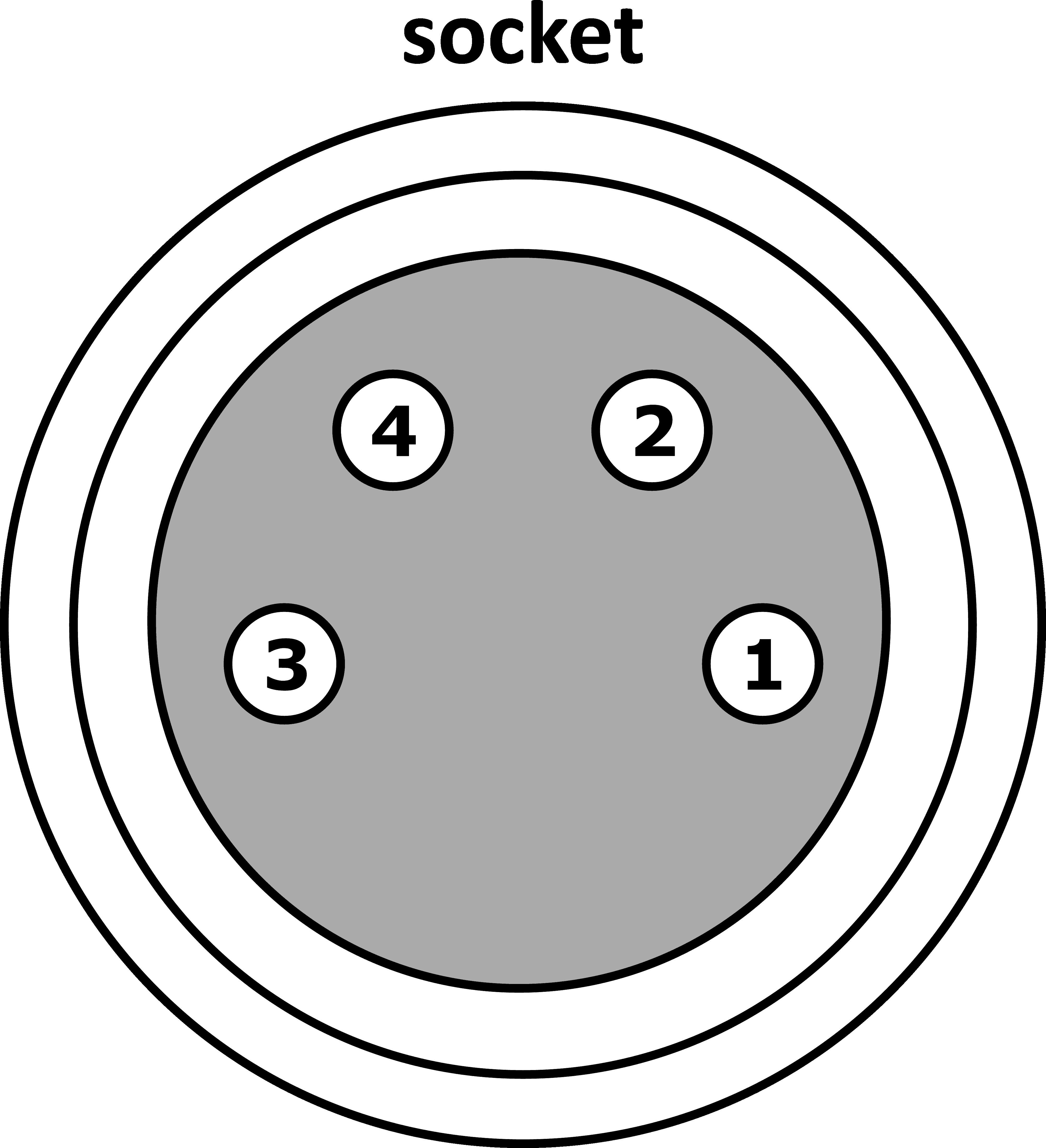

- Female (socket)
- Type of plug-in contact, B connection
- Male (connector)
- Type of A electrical connection
- M8
- Type of B electrical connection
- M8
- Number of pins of A connection
- 4
- Number of pins of B connection
- 4
- Operating voltage (AC 50Hz)
- 60V
- Operating voltage (DC)
- 60V
Mechanical properties
- Wire assembly
- 42 x 0.1mm
- Number of cores
- 4
- Cable length
- 0.6m
- Cable infeed of A connection
- straight
- Cable infeed of B connection
- straight
- Maximum tightening torque of connection A
- 0.6Nm
- Maximum tightening torque of connection B
- 0.6Nm
- bending cycles
- 5 million cycles
- Torsion cycles
- +/-360°/m, ≥ 2 million cycles
- Material of cable sheath
- Plastic (PUR)
- Suitable for trailing chain
- Yes
Other properties
- Flame retardant
- in accordance with EN 60332-2-2
- Halogen-free
- Yes
- Hydrolysis-proof
- Yes
- Free of LABS
- Yes
- Ozone and UV-resistant
- Yes
- Suitable for trailing chain and torsion resistant
- Yes
- Welding area
- Yes
- Silicone-free
- Yes
- Oil and cooling lubricants
- Yes
- Connection cable
Mounting clip M8 connector/socket
Torque wrench WAF 9 / WAF 13
Scarce
Label
Sheath
Torque wrench SW9 / SW13
Datasheets
Drawings
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27279218 |
| eClass-7.1 | 27279218 |
| eClass-8.0 | 27279218 |
| eClass-9.0 | 27060311 |
| eClass-9.1 | 27060311 |
| ETIM-6.0 | EC001855 |
| ETIM-7.0 | EC001855 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 914 accessories camera sensors |
| packaging dimensions | 16.2 x 12 x 24mm |
| gross weight | 33g |
| Customs tariff number | 85444290 |
| WEEE number | 40951076 |
