VK108F28

VK108F28
List price
61,30 €
On demand

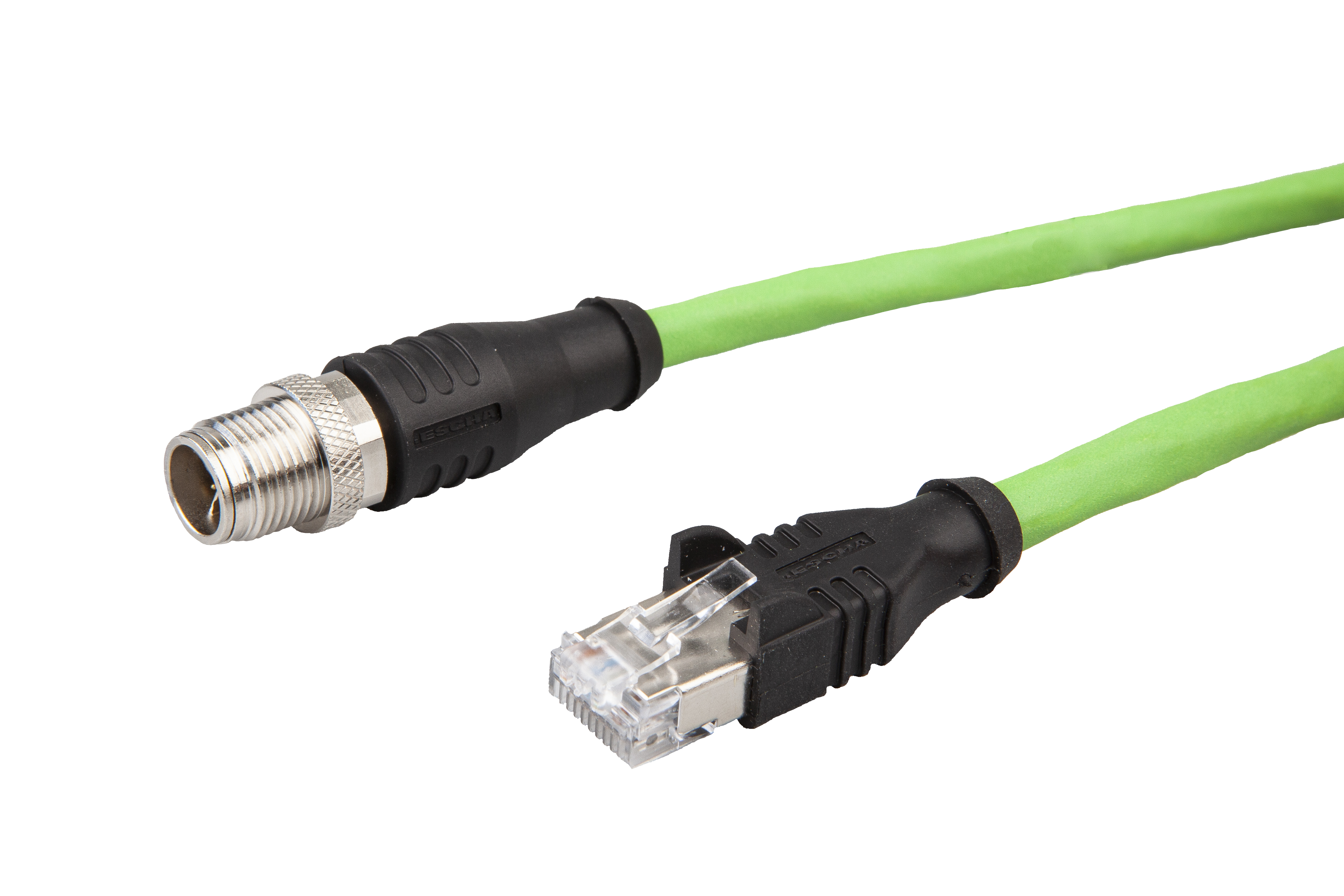

Data cable, Connection cable, 1m, M12 Male (connector) 8pin Straight, X-coding, RJ45 Male (connector) 8pin Straight, 8x0.14mm², Category 5E, -40-75°C, TPU, Shielded
circuit diagram

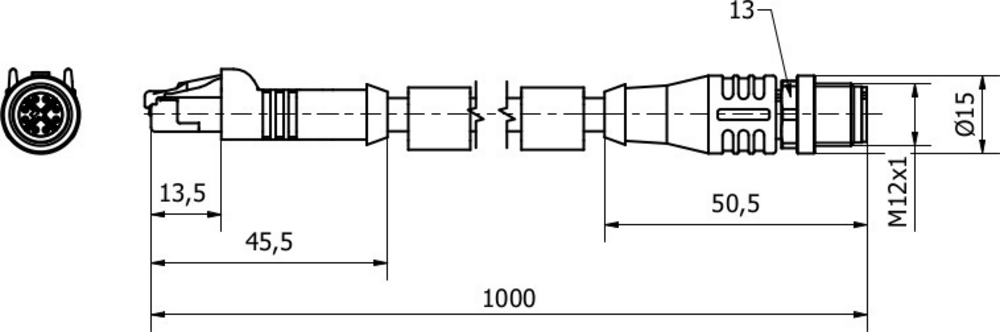

dimensional drawing
3D model
Compare

Connection technology - Data transfer

This shielded cable tail can be used to transmit complex information digitally into a network for further processing. The connections are pre-wired.

The VK108F28 is equipped with an 8-pin X-coded M12-connector on the device side and an RJ45 connector on the network side.

Transmission classification
Cat5e

Electrical properties

Type of plug-in contact, A connection
Male (connector)
Type of plug-in contact, B connection
Male (connector)
Type of A electrical connection
M12
Type of B electrical connection
RJ45
Number of pins of A connection
8
Number of pins of B connection
8
Coding of connection A
X
Shielded
Yes

Mechanical properties

Wire assembly
7 x 0.16mm
Conductor cross-section
0.14mm²
Number of cores
8
Outer diameter
6.4mm
Cable sheath color
green
Cable length
1m
Cable infeed of A connection
straight
Cable infeed of B connection
straight
Housing material
TPU
Material of cable sheath
Perm. ambient temperature of cable, fixed cable
-40 - 75°C
Material of the contacts Connection A
CuZn, gold-plated
CuSn, gold-plated

Other properties

Ambient temperature
-30 - 70°C
Classification Class
eClass-7.0 27060390
eClass-7.1 27060390
eClass-8.0 27060390
eClass-9.0 27060390
eClass-9.1 27060390
ETIM-6.0 EC001262
ETIM-7.0 EC001262
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
SCIP number 02a19814-641f-4f49-a2cd-c7af668205a6
IPF Product Group 851 cable sockets / connectors (both side ready made)
packaging dimensions 160 x 30 x 220mm
gross weight 76g
0,33kg CO₂e
Customs tariff number 85444290
WEEE number 40951076
