Connection technology - Cable sockets / connectors pre-assembled on one side

VK2000L0

VK2000L0
List price
65,40 €
Available
Connection cable, 2m, Lemo-mini socket 3-pin angular, free cable end, 3-core, -40-180°C, silicone

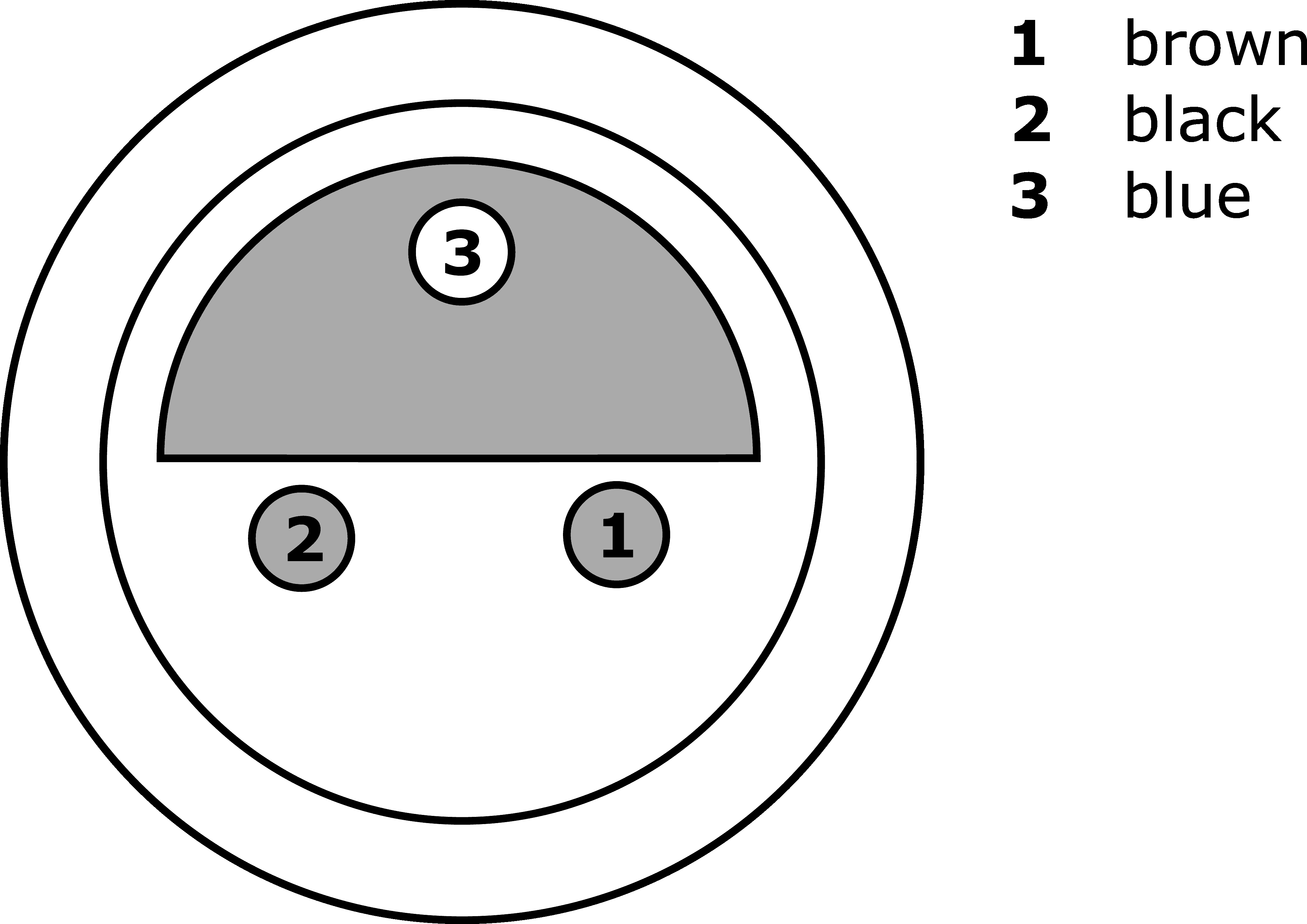

circuit diagram
dimensional drawing
3D model
Compare

Connection technology - Cable sockets / connectors pre-assembled on one side

ipf cable sockets are mainly used for the electrical connection of sensors. Their properties are characterized by the robust version, in the highest degrees of protection (IP67 | IP68 | IP69K) and with 360° shielding on request. With the features: bus-compatible, drag chain and robot-compatible, oil and chemical-resistant, welding spark-resistant, cleaning agent-resistant or resistant to high-pressure and steam jet cleaning, the enlarged temperature range up to +230°C, rapid interconnection (technology) or special data transmission properties, the cable sockets meet all the requirements of automation technology.

Electrical properties

Type of plug-in contact, A connection
Female (socket)
Type of A electrical connection
Lemo-mini
Type of B electrical connection
Free conductor end
Number of pins of A connection
3
Number of pins of B connection
3

Mechanical properties

Number of cores
3
Cable length
2m
Cable infeed of A connection
angular
Material of cable sheath
Silicone
Perm. ambient temperature of cable, fixed cable
-40 - 180°C

Other properties

Flame retardant
No
Classification Class
eClass-7.0 27279218
eClass-7.1 27279218
eClass-8.0 27279218
eClass-9.0 27060311
eClass-9.1 27060311
ETIM-6.0 EC001855
ETIM-7.0 EC001855
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 853 cable sockets / connectors (high temperature)
packaging dimensions 150 x 15 x 200mm
gross weight 50g
Carbon footprint 0,43kg CO₂e
Customs tariff number 85444290
WEEE number 40951076
