VK20R071

VK20R071
List price
14,30 €
Scarce
Connection cable, 2 m, 3-pin angular M8 female connector, open cable end, 3x0.25 mm², PUR (polyurethane) orange, Ø 4.6 mm, 60 V, -40–90°C, IP67, TPU, 4 A, robotics, suitable for trailing chain and torsion resistant, resistant to oils and cooling lubricants, welding applications, silicone-free
circuit diagram

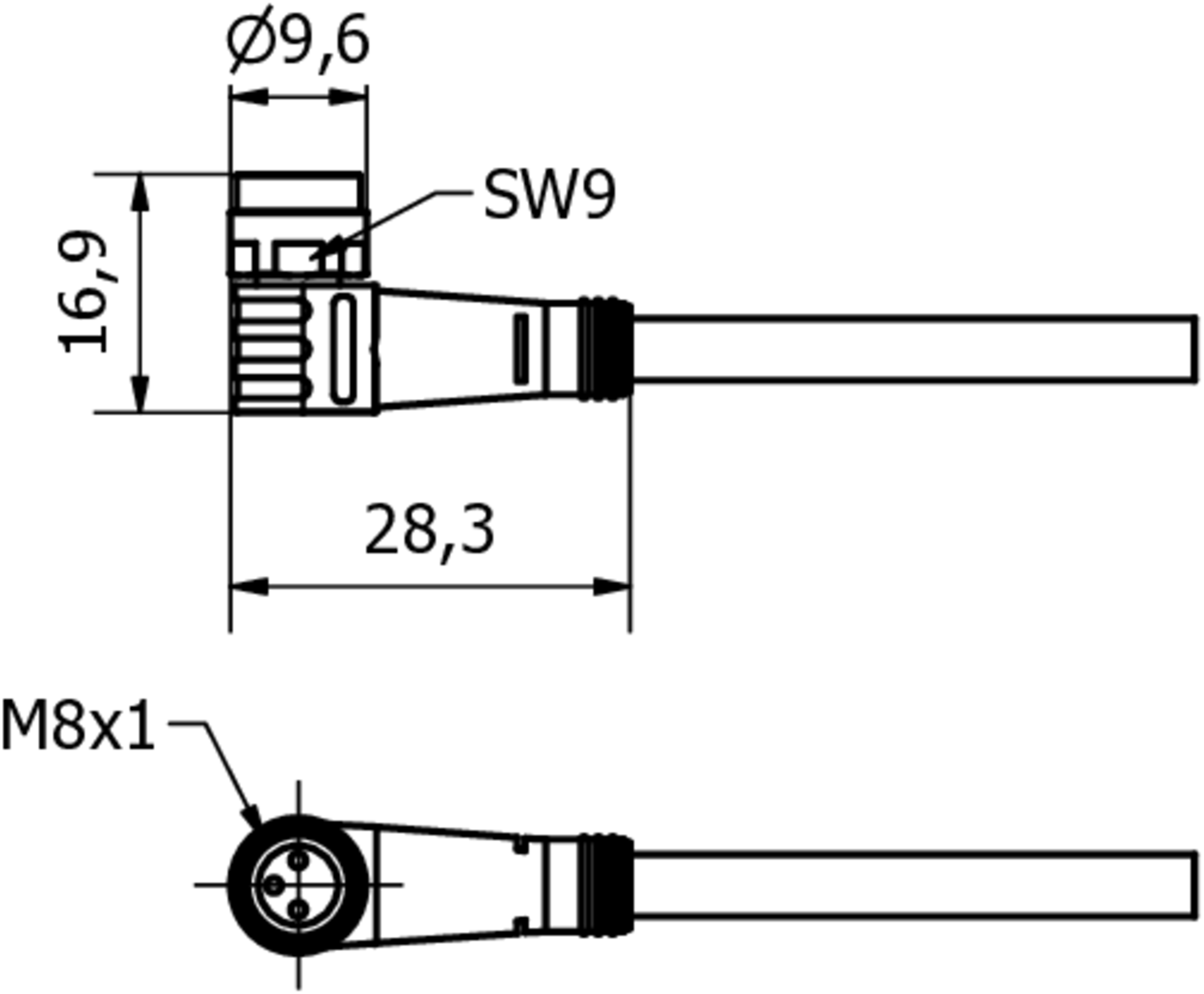

dimensional drawing
3D model
Compare

Connection technology - Cable sockets / connectors pre-assembled on one side

ipf cable sockets are primarily used to establish electrical connections for sensors. Their features include a robust version, the highest degrees of protection (IP67 | IP68 | IP69K), and, upon request, 360° shielding. With features such as bus-compatibility, suitability for use in drag chains and with robots, resistance to oil and chemicals, resistance to welding sparks, resistance to cleaning agents, and resistance to high-pressure and steam jet cleaning, along with an enlarged temperature range up to +230°C, rapid interconnection (technology), and special data transmission features, these cable sockets meet all the requirements of automation technology.

Electrical properties

Type of plug-in contact, A connection
Female (socket)
Type of cable
Multi-core
Type of A electrical connection
M8
Type of B electrical connection
Free conductor end
Number of pins of A connection
3
Ampacity
4A
Coding of connection A
A

mechanical properties

Line diameter
4.6mm
Conductor cross-section
0.25mm²
Number of cores
3
Cable sheath color
orange
Cable length
2m
Cable infeed of A connection
angular
Maximum tightening torque of connection A
0.6Nm
bending cycles
≥ 10 million cycles
Degree of protection (IP)
IP67
torsion cycles
+/-360°/m, ≥ 10 million cycles
Contact coating material
Gold
Housing material
TPU
material of cable sheath
plastic (PUR)
Contact body material
Brass
Perm. ambient temperature of cable, fixed cable
-40 - 90°C
Perm. ambient temperature of cable, flexible cable
-30 - 90°C
Material of the screw fitting
Brass
material properties
halogen-free, hydrolysis-resistant, LABS-free, ozone-resistant, silicone-free, UV-durable
environmental resistance
oils, cooling lubricants, acid-resistant, alkali-resistant, seawater resistant

optical properties

Degree of soiling
3

other properties

Flame retardant
in accordance with EN 60332-2-2
Applications
Robotics, Suitable for trailing chain, Welding area
Classification Class
eClass-7.0 27279218
eClass-7.1 27279218
eClass-8.0 27279218
eClass-9.0 27060311
eClass-9.1 27060311
ETIM-6.0 EC001855
ETIM-7.0 EC001855
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
UL / CSA approval number E509333
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
SCIP number 02a19814-641f-4f49-a2cd-c7af668205a6
IPF Product Group 850 cable sockets / connectors (one side ready made)
packaging dimensions
Carbon footprint 0,23kg CO₂e
customs tariff number 85444290
WEEE number 40951076
