NEW IN THE PROGRAM

VK508P45

VK508P45
List price
54,00 €
Available
Data cable, connection cable, 5m, RJ45 connector 8-pin straight, RJ45 connector 8-pin straight, 8x0.14mm², category 5E, -40-80°C, TPU, shielded

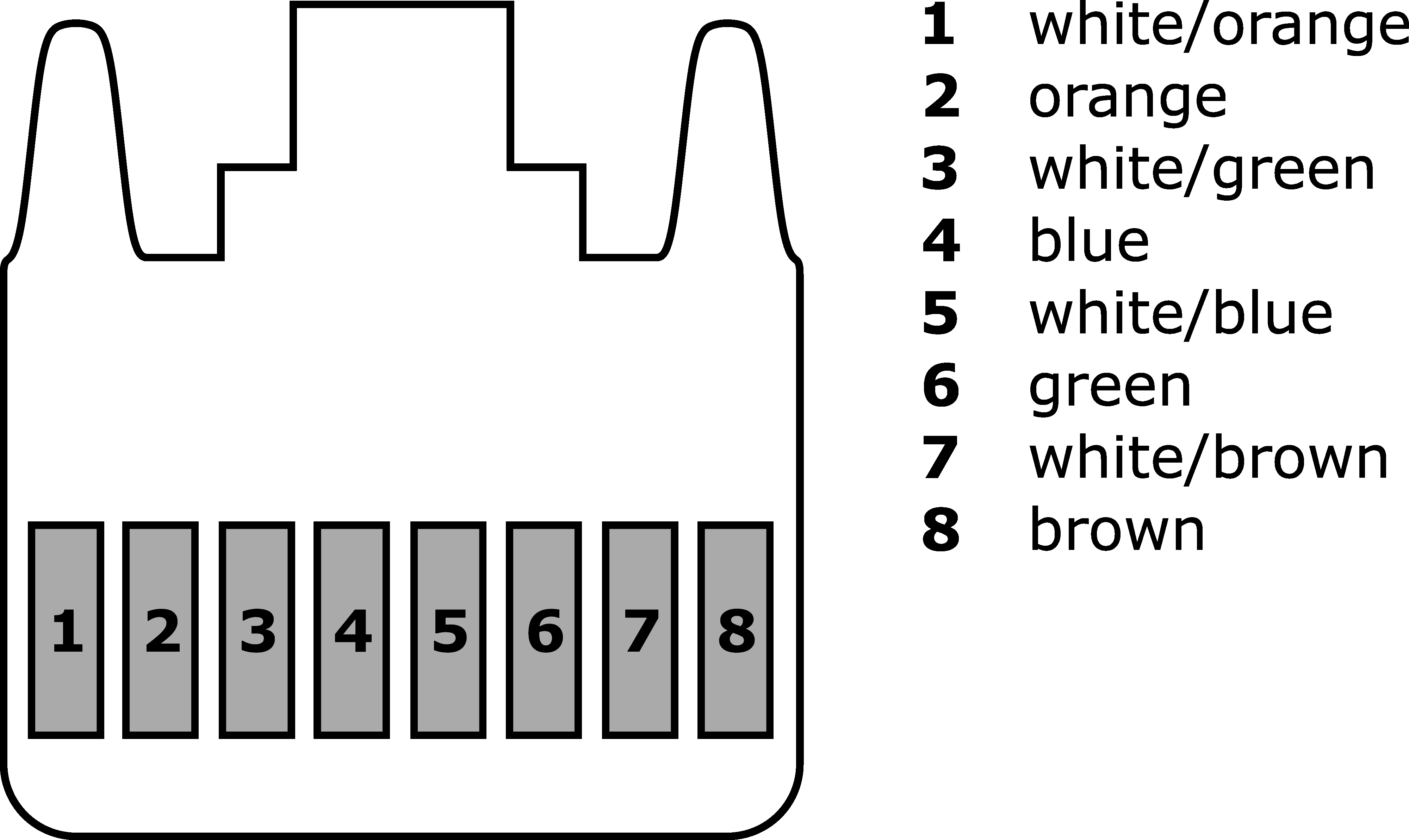

circuit diagram
dimensional drawing
Compare

Connection technology - Data transfer

This shielded cable can be used to transmit complex information digitally into a network for further processing. The connections are pre-wired.

The line is equipped with an 8-pin RJ45 connector on the device side and an RJ45 connector on the network side.

Transmission classification
Cat6A (IEC)

Electrical properties

Type of plug-in contact, A connection
Male (connector)
Type of plug-in contact, B connection
Male (connector)
Type of A electrical connection
RJ45
Type of B electrical connection
RJ45
Number of pins of A connection
8
Number of pins of B connection
8
Supported communication interface
1x 100MbE, 1x RS485, EtherCAT, Ethernet, Ethernet Industrial Protocol
Shielded
Yes
Operating voltage
30VAC(50Hz) | 30VDC
Electrical connection
8-wire 5m

Mechanical properties

Wire assembly
7 x 0.16mm
Conductor cross-section
0.14mm²
Number of cores
8
Outer diameter
6.4mm
Cable sheath color
green
Cable length
5m
Cable infeed of A connection
straight
Cable infeed of B connection
straight
Housing material
TPU
Material of cable sheath
Perm. ambient temperature of cable, fixed cable
-40 - 80°C
Material of the contacts Connection A
CuZn, gold-plated
CuZn, gold-plated

Other properties

Ambient temperature
-30 - 70°C
Classification Class
eClass-7.0 27060390
eClass-7.1 27060390
eClass-8.0 27060390
eClass-9.0 27060390
eClass-9.1 27060390
ETIM-6.0 EC001262
ETIM-7.0 EC001262
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 851 cable sockets / connectors (both side ready made)
packaging dimensions 200 x 24 x 300mm
gross weight 250g
Customs tariff number 85444290
WEEE number 40951076
