Connection technology - Cable sockets / connectors pre-assembled on one side

VKA00371

VKA00371
List price
27,30 €
Available
Connection cable, 10m, M8 socket 4-pin angular, free cable end, 4x0.34mm², PUR (polyurethane), Ø4.7mm, 30V, -30-90°C, IP67, suitable for trailing chain and torsion resistant, oils and cooling lubricants, welding area, silicone-free

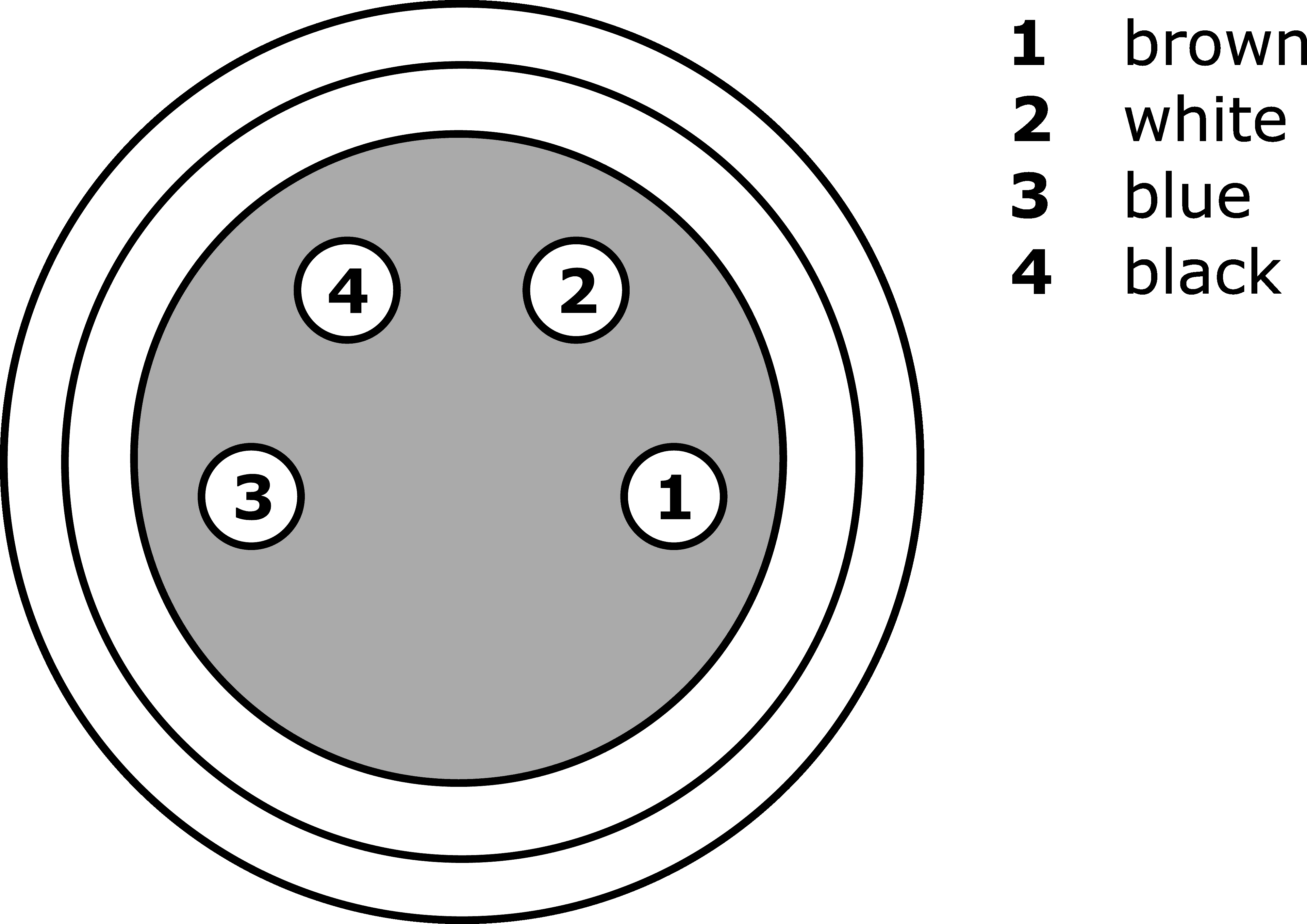

circuit diagram
dimensional drawing
3D model
Compare

Connection technology - Cable sockets / connectors pre-assembled on one side

ipf cable sockets are mainly used for the electrical connection of sensors. Their properties are characterized by the robust version, in the highest degrees of protection (IP67 | IP68 | IP69K) and with 360° shielding on request. With the features: bus-compatible, drag chain and robot-compatible, oil and chemical-resistant, welding spark-resistant, cleaning agent-resistant or resistant to high-pressure and steam jet cleaning, the enlarged temperature range up to +230°C, rapid interconnection (technology) or special data transmission properties, the cable sockets meet all the requirements of automation technology.

Electrical properties

Type of plug-in contact, A connection
Female (socket)
Type of A electrical connection
M8
Type of B electrical connection
Free conductor end
Number of pins of A connection
4
Ampacity
4A
Coding of connection A
A

Mechanical properties

Line diameter
4.7mm
Wire assembly
42 x 0.1mm
Conductor cross-section
0.34mm²
Number of cores
4
Cable length
10m
Cable infeed of A connection
angular
Maximum tightening torque of connection A
0.6Nm
bending cycles
5 million cycles
Degree of protection (IP)
IP67
Torsion cycles
+/-360°/m, ≥ 2 million cycles
Material of cable sheath
Perm. ambient temperature of cable, fixed cable
-30 - 90°C
Material of the screw fitting
Brass

Other properties

Flame retardant
in accordance with EN 60332-2-2
Classification Class
eClass-7.0 27279218
eClass-7.1 27279218
eClass-8.0 27279218
eClass-9.0 27060311
eClass-9.1 27060311
ETIM-6.0 EC001855
ETIM-7.0 EC001855
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
UL / CSA approval number E509333
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
SCIP number 02a19814-641f-4f49-a2cd-c7af668205a6
IPF Product Group 850 cable sockets / connectors (one side ready made)
packaging dimensions 180 x 30 x 180mm
gross weight 310g
1,19kg CO₂e
Customs tariff number 85444290
WEEE number 40951076
