Connection technology - Cable sockets / connectors pre-assembled on one side
VKC0E333
Available

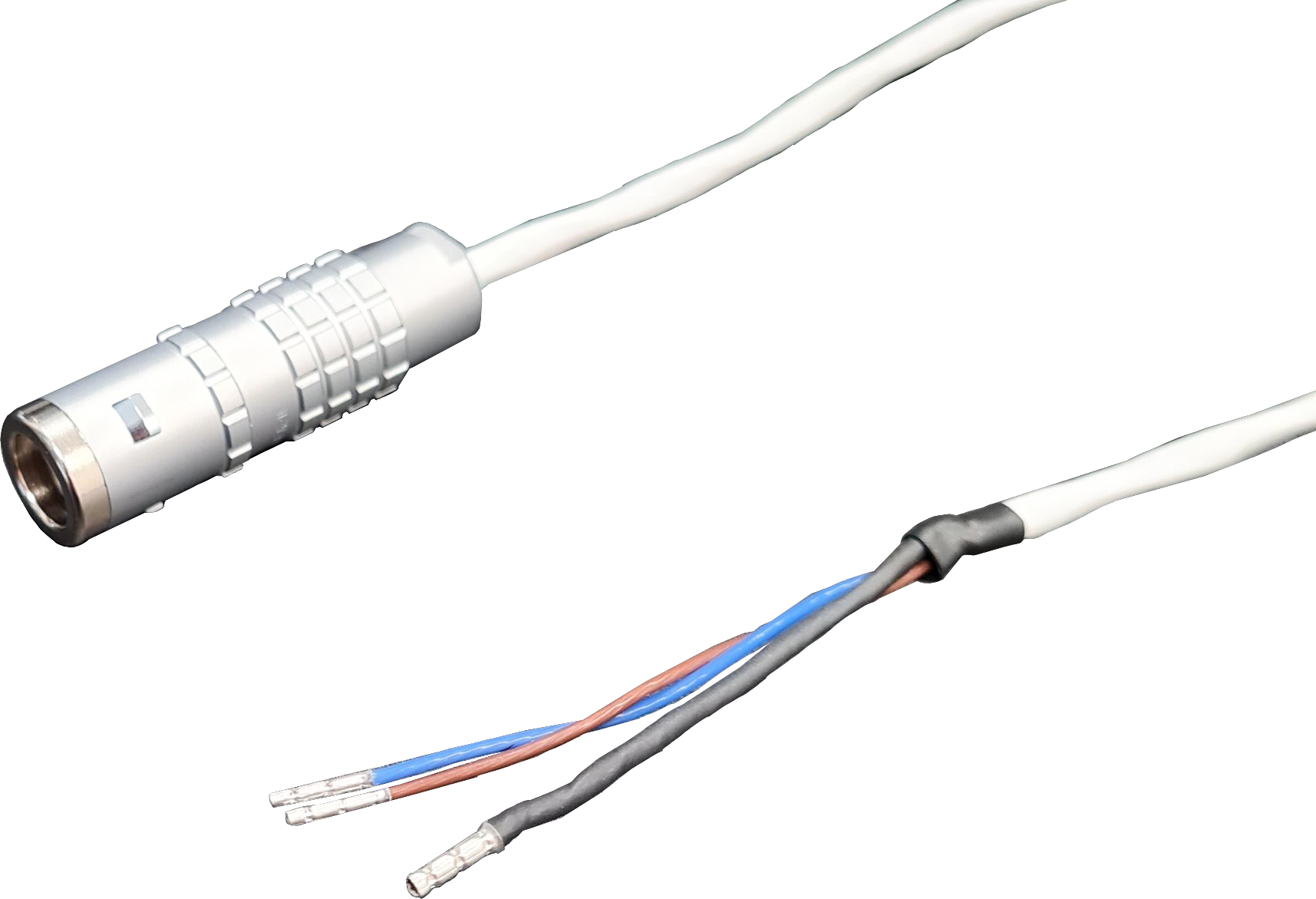

Connection cable, 30 m, 2-pole straight connector, open end, 2x0.25 mm², PTFE, shielded, IP67
Compare
Connection technology - Cable sockets / connectors pre-assembled on one side
ipf cable sockets are primarily used to establish electrical connections for sensors. Their features include a robust version, the highest degrees of protection (IP67 | IP68 | IP69K), and, upon request, 360° shielding. With features such as bus-compatibility, suitability for use in drag chains and with robots, resistance to oil and chemicals, resistance to welding sparks, resistance to cleaning agents, and resistance to high-pressure and steam jet cleaning, along with an enlarged temperature range up to +230°C, rapid interconnection (technology), and special data transmission features, these cable sockets meet all the requirements of automation technology.
Electrical properties
- Type of plug-in contact, A connection
- Female (socket)
- Type of cable
- Multi-core
- Type of A electrical connection
- Lemo
- Type of B electrical connection
- Free conductor end
- Number of pins of A connection
- 2
- Shielded
- Yes
mechanical properties
- Line diameter
- 3mm
- Core identification
- Color
- Conductor cross-section
- 0.25mm²
- Number of cores
- 2
- Cable sheath color
- white
- Cable length
- 30m
- Cable infeed of A connection
- straight
- Degree of protection (IP)
- IP67
- material of cable sheath
- plastic (PTFE)
other properties
- Flame retardant
- No
- Ambient temperature
- -25 - 230°C
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 479 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
Product flyers
| Classification | Class |
|---|---|
| eClass-7.0 | 27279218 |
| eClass-7.1 | 27279218 |
| eClass-8.0 | 27279218 |
| eClass-9.0 | 27060311 |
| eClass-9.1 | 27060311 |
| ETIM-6.0 | EC001855 |
| ETIM-7.0 | EC001855 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 853 cable sockets / connectors (high temperature) |
| packaging dimensions | 250 x 40 x 350mm |
| gross weight | 713g |
| Carbon footprint | 2,42kg CO₂e |
| customs tariff number | 85444290 |
| WEEE number | 40951076 |
