Connection technology - Inverters
VY850002
| amount | price | discount |
|---|---|---|
| 1 | 87,20 € | – |
| 5 | 84,58 € | 3% / 2,62 € |
| 10 | 82,84 € | 5% / 4,36 € |
| 20 | 80,22 € | 8% / 6,98 € |
| 50 | 76,74 € | 12% / 10,46 € |
Scarce
Inverter/signal-inversion/turn-off delay, 85x65x18mm, 0.01-10s, 12-30V DC, 1x NC/NO, Clamp 8pin, IP40, Plastic, Plug-in jumpers
Compare
Connection technology - Inverters
Our multi-function time relays / pulse stretchers can be considered as real alternatives when it comes to solutions for minor set control technology problems. The input signals, for example, can be switch-on or off delayed after a preset time. In order to be able to reduce the storage, multi-function relays can be used that provide, in addition to the already mentioned functions, operating modes like time-programming, pulse-forming or clocking. Besides, there is also star / delta change-over for load-contactors integrated in the motor start control. Reversing the switching logic or the polarity is possible with our fast signal inverters / impulse stretchers. These are characterized by extremely short response times and high switching frequencies. As an input circuit for a PLC these devices are perfect to record short signal or level changes.
Electrical properties
- Number of outputs, undelayed, change-over contact
- 0
- Number of outputs, delayed, normally closed contact
- 1
- Number of outputs, delayed, normally open contact
- 1
- Number of contacts as change-over contact
- 0
- Number of normally closed contacts
- 1
- Number of switching outputs
- 1
- Number of normally open contacts
- 1
- Number of time ranges
- 3
- Type of signal processing
- Inverter/signal-inversion/turn-off delay
- Type of input signal
- PNP/NPN
- Type of switching function
- Normally closed contact/normally open contact

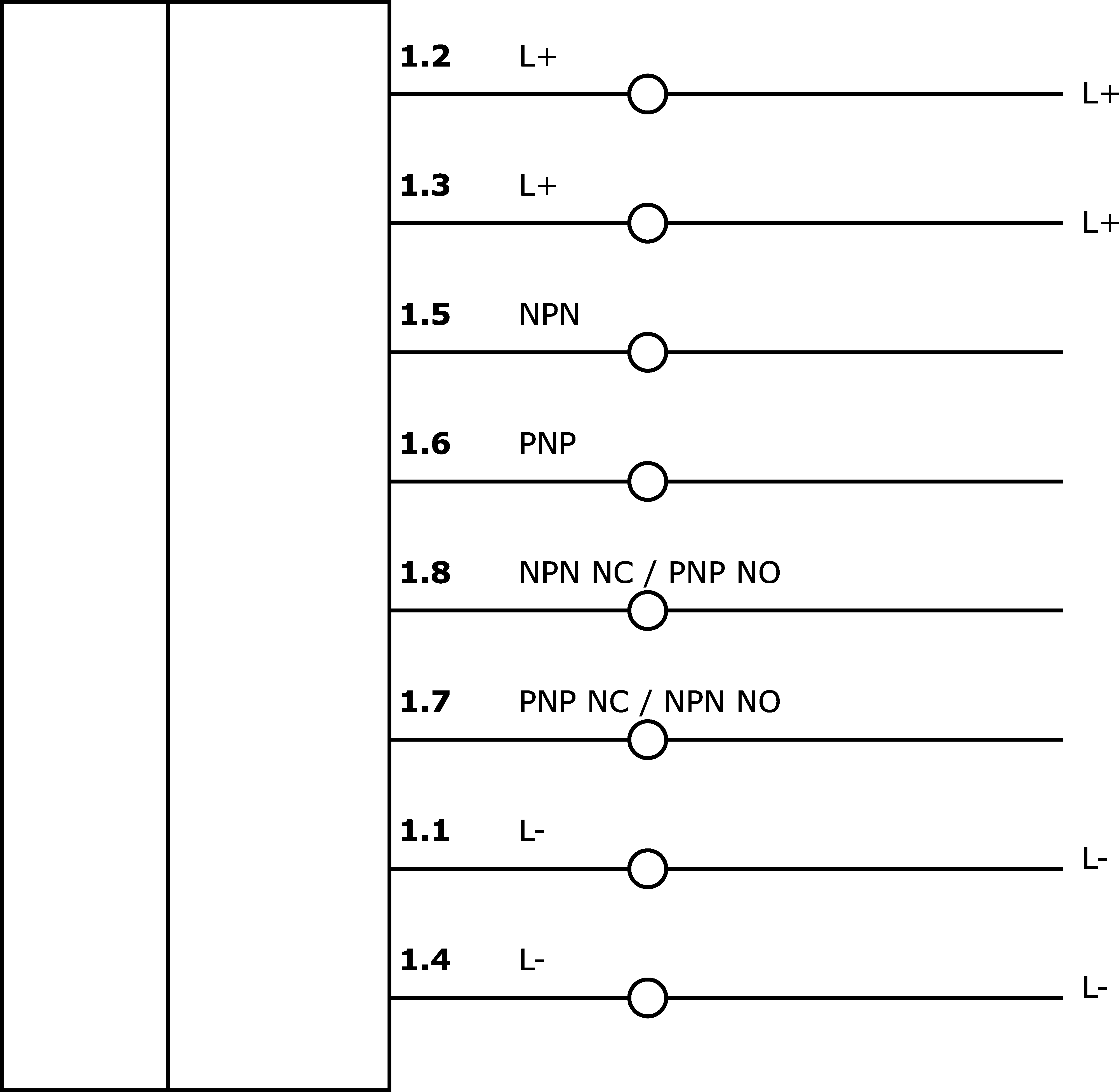

- Type of electrical connection
- Clamped terminal connection
- Type of switching output
- PNP/NPN
- Type of signal input A
- PNP/NPN
- Rated switching current
- 300mA
- Setting procedure
- Manual adjustment, plug-in jumper
- Number of pins
- 8
- Switching voltage
- 30V
- Switching behavior of the output
- Dynamic
- Time range
- 0.01 - 10s
- Display
- LED display
- Short circuit protection, Reverse polarity protection
Mechanical properties
- Width
- 17.5mm
- Height
- 85mm
- Length
- 65mm
- Mounting method
- Top hat rail
- Degree of protection (IP)
- IP40
- Housing material
- Plastic
Other properties
- Ambient temperature
- -10 - 60°C
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 478 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27210990 |
| eClass-7.1 | 27210990 |
| eClass-8.0 | 27210990 |
| eClass-9.0 | 27210990 |
| eClass-9.1 | 27210990 |
| ETIM-6.0 | EC011231 |
| ETIM-7.0 | EC011231 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 800 miscellaneous |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 70g |
| 0,15kg CO₂e | |
| Customs tariff number | 85365005 |
| WEEE number | 40951076 |
