Connection technology - Inverters

VYR90270

VYR90270
List price
131,80 €
amount price discount
1 131,80 € –
5 127,85 € 3% / 3,95 €
10 125,21 € 5% / 6,59 €
20 121,26 € 8% / 10,54 €
50 115,98 € 12% / 15,82 €
Scarce
Signal inversion, Ø9mm 32long, 10-35V DC, 1x NC, M8 0.3m, IP67, Aluminum

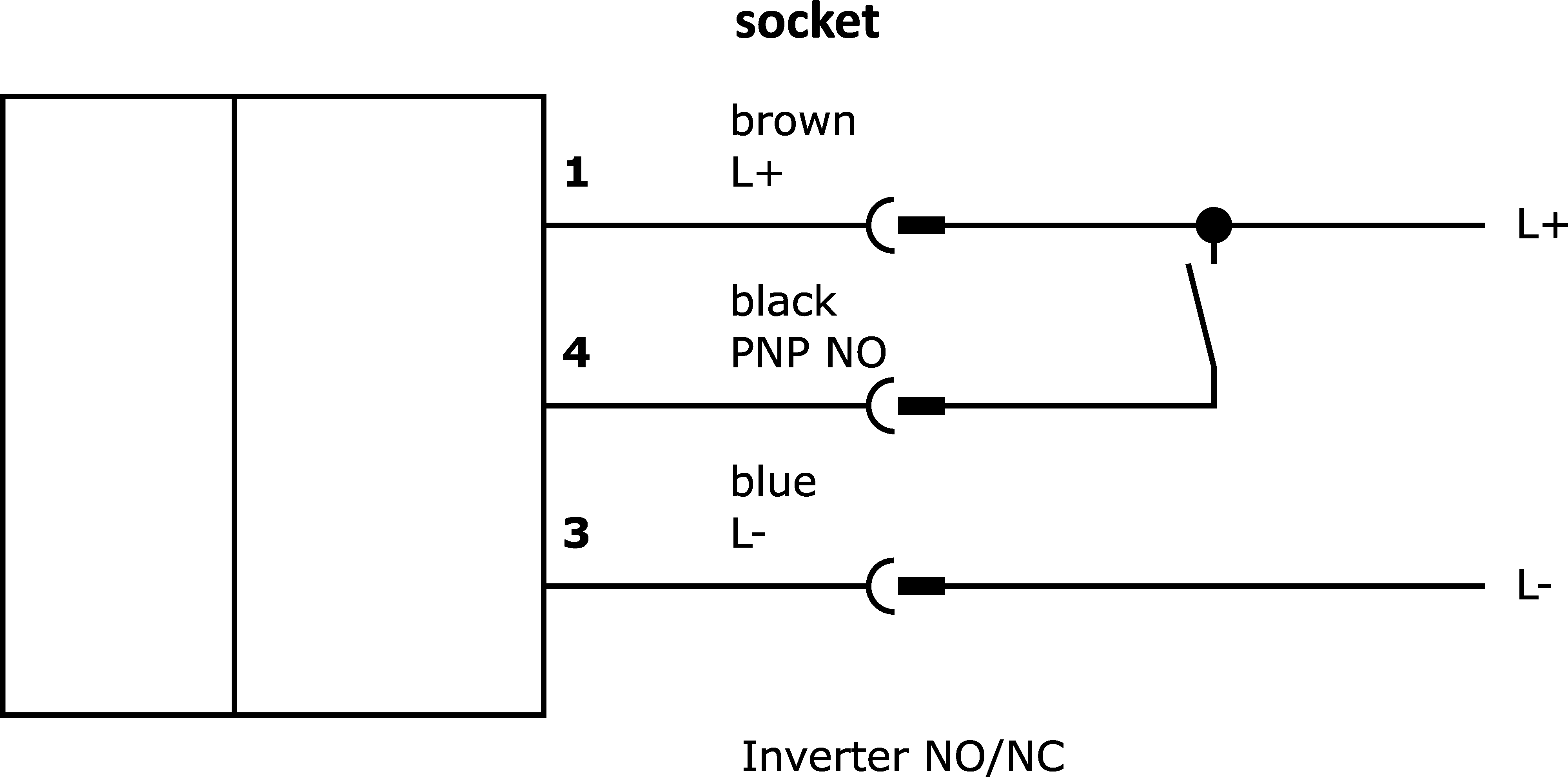

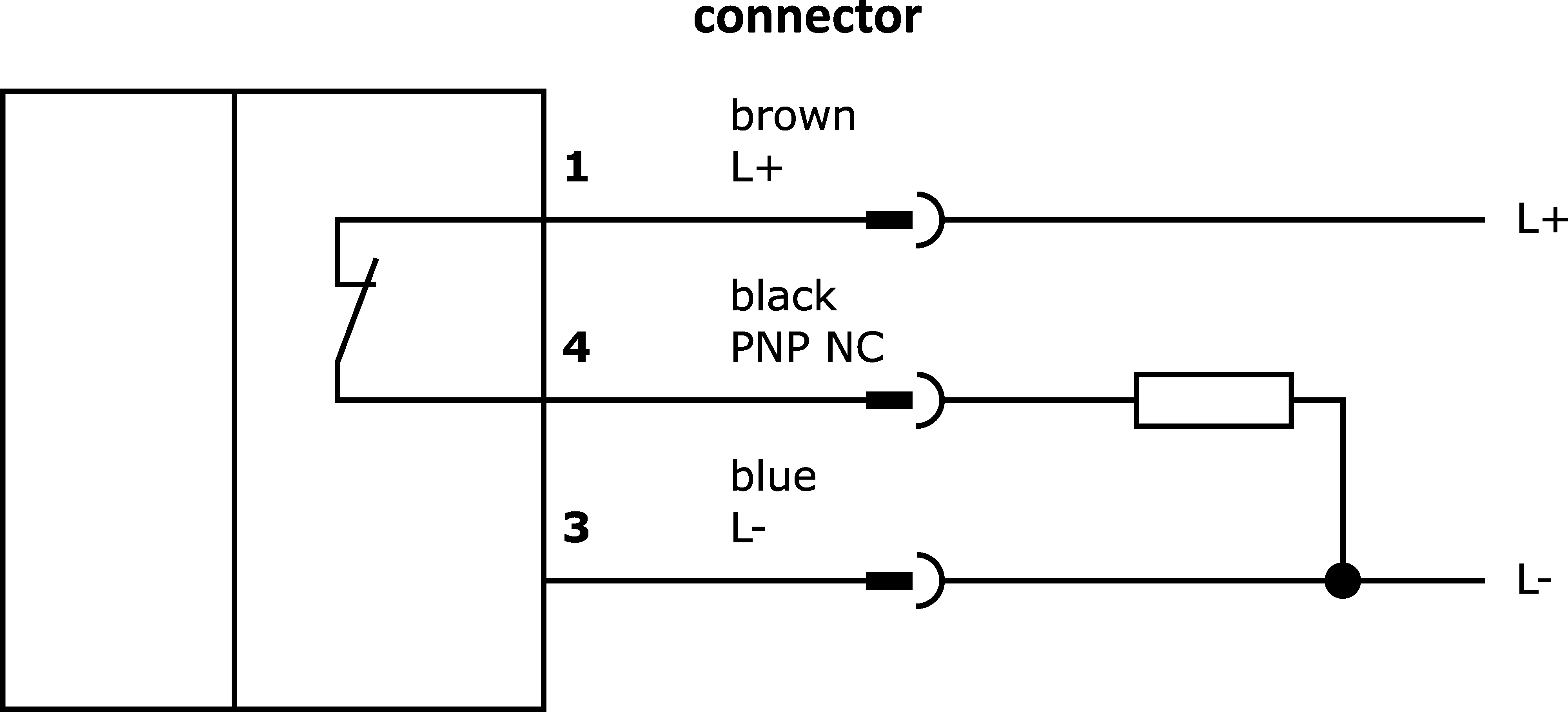

circuit diagram
dimensional drawing
Compare

Connection technology - Inverters

Electrical properties

Number of outputs, undelayed, change-over contact
0
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Number of contacts as change-over contact
0
Number of normally closed contacts
1
Number of switching outputs
1
Number of normally open contacts
0
Type of signal processing
Signal inversion
Type of input signal
PNP
Type of plug-in contact, A connection
Female (socket)
Type of plug-in contact, B connection
Male (connector)
Type of switching function
Normally closed contact (NC)
Type of switching output
PNP
Type of signal input A
PNP
Type of A electrical connection
M8
Type of B electrical connection
M8
Rated switching current
300mA
Number of pins of A connection
3
Number of pins of B connection
3
Switching frequency
5,000Hz
Short circuit protection, Reverse polarity protection

Mechanical properties

Cable length
0.3m
Cable infeed of A connection
angular
Cable infeed of B connection
straight
Length
32.5mm
Mounting method
Direct mounting
Degree of protection (IP)
IP67
Housing material
Aluminum
Diameter
9mm

Other properties

Ambient temperature
-10 - 60°C
Classification Class
eClass-7.0 27210990
eClass-7.1 27210990
eClass-8.0 27210990
eClass-9.0 27210990
eClass-9.1 27210990
ETIM-6.0 EC011231
ETIM-7.0 EC011231
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 800 miscellaneous
packaging dimensions 150 x 17 x 200mm
gross weight 18g
0,13kg CO₂e
Customs tariff number 85365005
WEEE number 40951076
