Oil moisture sensor - Oil moisture sensor

YF900020

YF900020
List price
1.012,50 €
On demand
Oil moisture sensor, G1/2", 123x30mm, 10-36V DC, -20...125°C, M12 plug-in connector 8-pin, stainless steel V2A, IP66, pressure resistance 300bar, 2x 4-20mA, RS-485

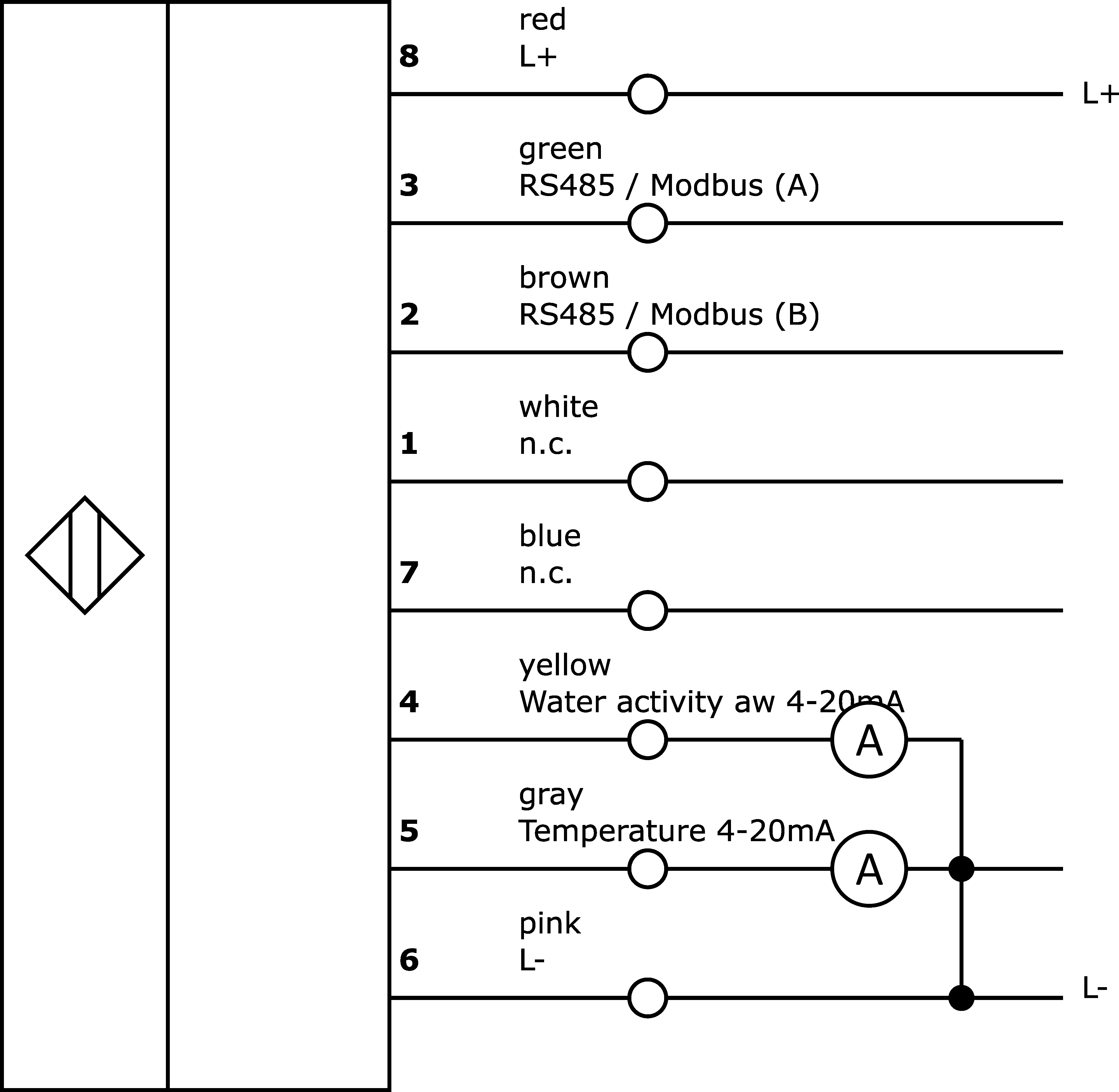

circuit diagram
dimensional drawing
Compare

Oil moisture sensor - Oil moisture sensor

Industrial oil moisture sensor for measurement of water activity and process temperature. Calculation of the absolute water content (PPM).

Electrical properties

Type of analog output
4 - 20mA
Type of electrical connection
Connector M12
Type of signal output
Three-wire
Measuring range, temperature
-20 - 125°C
Number of pins
8
Supported communication interface
1x RS485
Measuring accuracy of temperature
±0,3°C
Number of analog output channels
2
Operating voltage
Electrical connection

Mechanical properties

Type of process connection
G1/2 inch
Design
Cylinder, screw-thread
Pressure resistance
300bar
Length
123.2mm
Storage temperature
-40 - 80°C
Medium temperature
-20 - 125°C
Wrench size
27mm
Degree of protection (IP)
IP66
Housing material
Zinc die-cast
Sensing element material
Stainless steel
Diameter
30.2mm
dimensions

Other properties

Ambient temperature
-20 - 70°C
Measuring accuracy
up to 0.9aw: ±0.02 aw at +23 °C, from 0.9aw: ±0.03 aw at +23 °C
Important note
The measuring range 0 represents the minimum and 1 the maximum possible water activity.
Reference medium / object
Transformer oil
You can find accessories for YF900020 in these product groups:

Connection technology

Cable sockets M12 8-wire shielded

VK205A21
VK205A21
Connection cable, 2m, M12 socket 8-pin angular, free cable end, 8x0.25mm², PUR (polyurethane), Ø6.6mm, 30V, -25-90°C,…
27,20 €
Your price
Available
VK205A25
VK205A25
Connection cable, 2m, M12 socket 8-pin straight, free cable end, 8x0.25mm², PUR (polyurethane), Ø6.6mm, 30V, -25-90°C,…
27,20 €
Your price
Available
VK505A21
VK505A21
Connection cable, 5m, M12 socket 8-pin angular, free cable end, 8x0.25mm², PUR (polyurethane), Ø6.6mm, 30V, -25-90°C,…
35,60 €
Your price
Available
VK505A25
VK505A25
Connection cable, 5m, M12 socket 8-pin straight, free cable end, 8x0.25mm², PUR (polyurethane), Ø6.6mm, 30V, -25-90°C,…
35,60 €
Your price
Available
VKA05A21
VKA05A21
Connection cable, 10m, M12 socket 8-pin angular, free cable end, 8x0.25mm², PUR (polyurethane), Ø6.6mm, 30V, -25-90°C,…
49,90 €
Your price
Scarce
VKA05A25
VKA05A25
Connection cable, 10m, M12 socket 8-pin straight, free cable end, 8x0.25mm², PUR (polyurethane), Ø6.6mm, 30V, -25-90°C,…
49,90 €
Your price
Available
VKAE5A25
VKAE5A25
Connection cable, 15m, M12 socket 8-pin straight, free cable end, 8x0.25mm², PUR (polyurethane), shielded, suitable for…
63,70 €
Your price
Scarce
VKB05A21
VKB05A21
Connection cable, 20m, M12 socket 8-pin angular, free cable end, 8x0.25mm², PUR (polyurethane), Ø6.6mm, 30V, -25-90°C,…
78,10 €
Your price
Available
VKB05A25
VKB05A25
Connection cable, 20m, M12 socket 8-pin straight, free cable end, 8x0.25mm², PUR (polyurethane), Ø6.6mm, 30V, -25-90°C,…
78,10 €
Your price
Scarce
VKC05A25
VKC05A25
Connection cable, 30m, M12 socket 8-pin straight, free cable end, 8x0.25mm², PUR (polyurethane), shielded, suitable for…
93,20 €
Your price
Scarce

Programming cable for oil humidity sensor

VY000026
VY000026
RS485/USB connection cable, 5m, interface adapter, USB-A connector, M12 socket 8-pin straight
380,20 €
Your price
On demand
Classification Class
eClass-7.0 27200990
eClass-7.1 27200990
eClass-8.0 27200990
eClass-9.0 27200990
eClass-9.1 27200990
ETIM-6.0 EC003619
ETIM-7.0 EC003619
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 725 compressed air and leakage measurement
packaging dimensions 120 x 55 x 180mm
gross weight 283g
1,03kg CO₂e
Customs tariff number 90258040
WEEE number 40951076
