Diffuse-reflections sensor for integration - Optical
YO220800
| amount | price | discount |
|---|---|---|
| 1 | 150,70 € | – |
| 5 | 146,18 € | 3% / 4,52 € |
| 10 | 143,17 € | 5% / 7,54 € |
| 20 | 138,64 € | 8% / 12,06 € |
| 50 | 132,62 € | 12% / 18,08 € |
Available
Diffuse-reflections sensor for integration, optical, M22x1, Ø30mm, 9-24V DC, -20-70°C, relay contact NO, blade terminal, USB, LED
including 1x Nut, 4x Connection wire, 1x Sealing ring
Compare
Diffuse-reflections sensor for integration - Optical
This diffuse-reflections ensor for integration operates without contact. An integrated optical sensor registers the reflection of the hand and switches the output relay. The dimensions are identical to those of mechanical or capacitive switches, so that they can be replaced without any problems. The YO220800 can be parameterized in many ways with the aid of PC software. The switching distance can thus be set individually. Pick-up and drop-out delays are also programmable. All switching operations are displayed via the RGB LED, the colors are freely selectable. The LED display can light up or flash. To protect against faulty actuation, the contactor can also operate in proximity mode.
Electrical properties
- Type of switching function
- Normally open contact

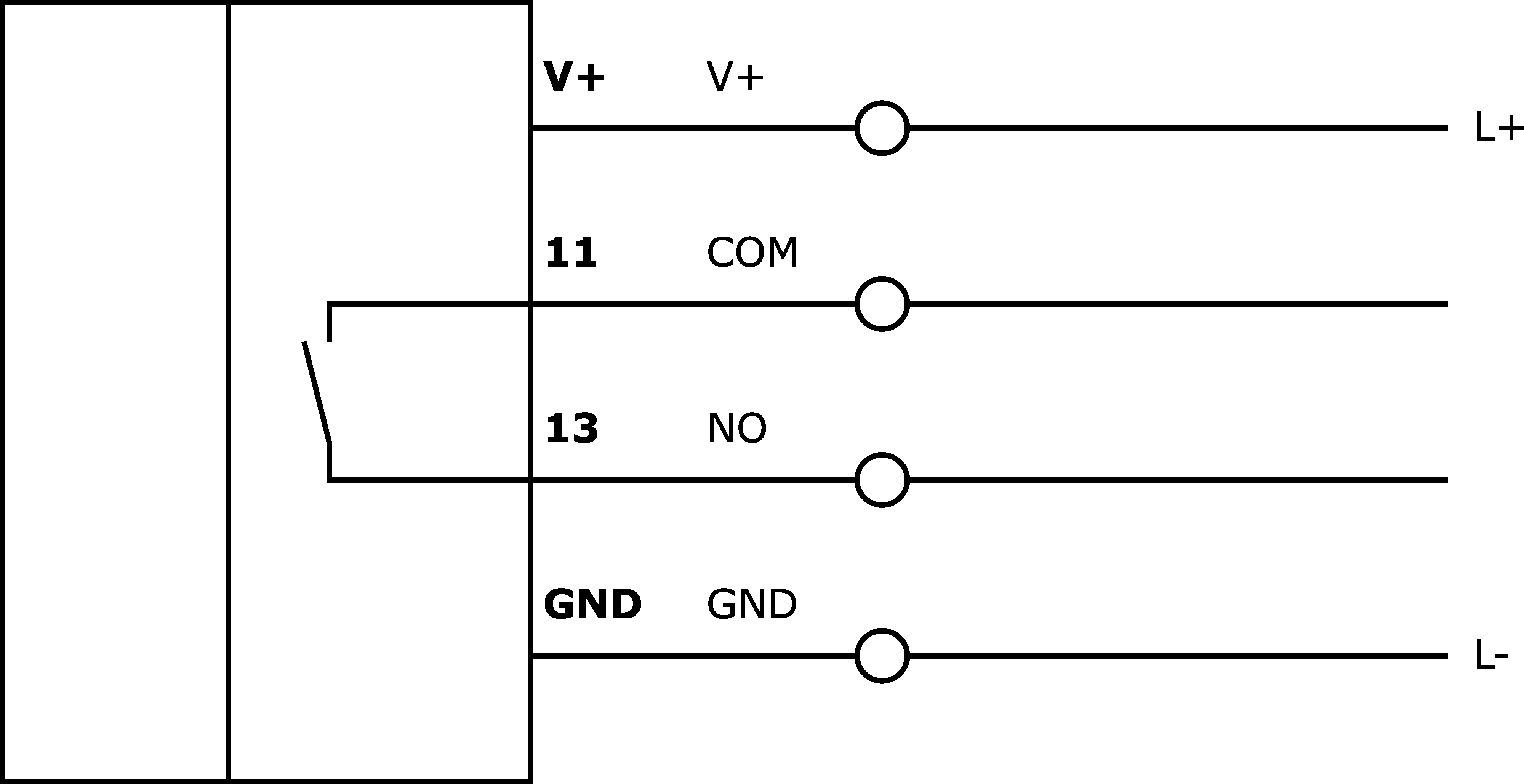

- Type of electrical connection
- Flat plug-in connection
- Type of switching output
- Relay contact
- Rated switching current
- 50mA
- Short-circuit protection
- No
- No-load current
- 50mA
- Number of pins
- 4
- Reverse polarity protection
- Yes
- Operating voltage (DC)
- 9 - 24V
- Display
- LED display
Mechanical properties
- Design
- Round
- Thread length
- 22mm
- Thread pitch
- 1mm
- Hole diameter
- 22.5mm
- Maximum tightening torque
- 1Nm
- Mounting method
- Counter thread
- Front ring material
- Plastic
- Housing material
- Plastic ABS
- M22
Other properties
- Ambient temperature
- -20 - 70°C
- With front ring
- Yes
Connection cable USB2.0
Datasheets
Drawings
Software
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 473 KB
-
pdfMaterial compliancePDF-file, 407 KB
-
pdfCE declaration of conformityPDF-file, 255 KB
-
pdfCE declaration of conformityPDF-file, 255 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
| Classification | Class |
|---|---|
| eClass 7.0 | 27371228 |
| eClass 7.1 | 27371228 |
| eClass 8.0 | 27371228 |
| eClass 9.0 | 27371228 |
| eClass 9.1 | 27371228 |
| ETIM-6.0 | EC001028 |
| ETIM-7.0 | EC001028 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| IPF Product Group | 690 diverse sensors |
| packaging dimensions | 100 x 40 x 165mm |
| gross weight | 40g |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
