| amount | price | discount |
|---|---|---|
| 1 | 292,60 € | – |
| 5 | 283,82 € | 3% / 8,78 € |
| 10 | 277,97 € | 5% / 14,63 € |
| 20 | 269,19 € | 8% / 23,41 € |
| 50 | 257,49 € | 12% / 35,11 € |
The article YT353100 is a highly developed temperature sensor from the switching amplifier group that has been specially designed to meet the requirements of the automation industry. This intelligent temperature sensor offers a wide range of functions and technical possibilities that are particularly important for professionals in the industrial and trade sectors.
The outstanding technical data of the YT353100 includes the temperature display range, which extends from -40 to 300 °C. This makes the sensor extremely versatile, as it can reliably measure both extremely low and high temperatures. The temperature measuring range is identical to the display range and ensures precise recording of temperature data.
The YT353100 can be operated in an ambient temperature range of -20 to 80 °C, which facilitates its application in various industrial environments and under different climatic conditions. The connection to the electrical system is made via a robust M12 connector, which enables easy and safe integration into existing systems.
In terms of dimensions, the width of the sensor is 40 mm, the height is 118 mm and the length is also 40 mm. These compact dimensions enable flexible installation in confined spaces and easy handling. Furthermore, the YT353100 has a degree of protection of IP65, which means that it is dust-tight and also protected against water jets from any direction. This makes it ideal for use in harsh industrial environments.

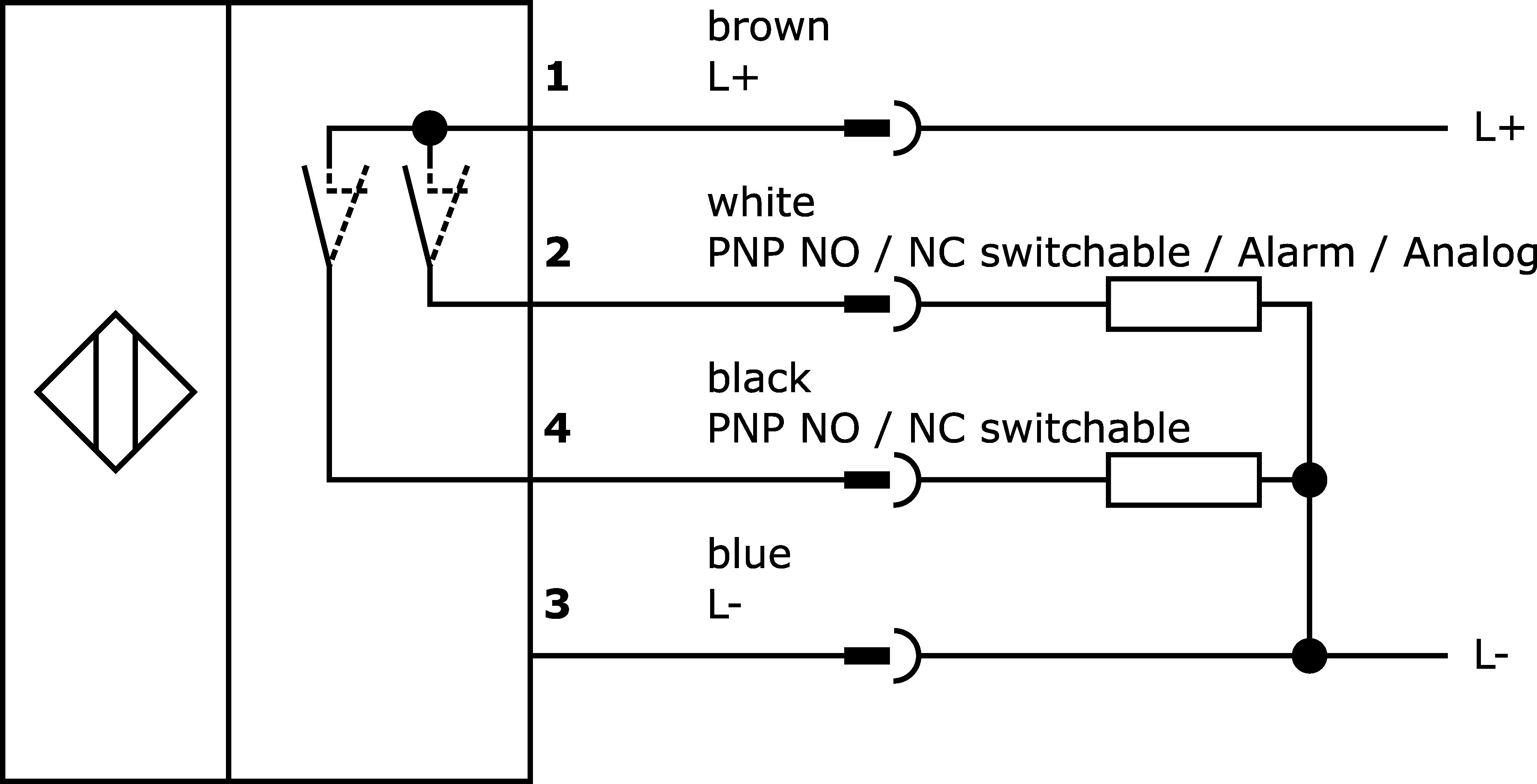

The sensor can be operated with an operating voltage of 12 to 32 V diagnostic coverage, which makes it compatible in many systems. The switching function is also noteworthy, as the YT353100 can act as both normally closed (nc) and normally open (nc). This offers additional flexibility in the application and allows it to be adapted to specific user needs. The rated switching current is 1 A, which allows safe control (unit) of various electrical loads.
The sensor is easily installed using a clamp mounting, which enables stable attachment and easy installation and removal. This detailed technical design makes the YT353100 particularly suitable for precise temperature monitoring in ovens, liquid and air machines and other applications where accurate temperature measurements are required.
In summary, the YT353100 temperature sensor's versatile functions, robust technical features and ease of operation make it an excellent choice for electrical engineering professionals looking for reliable solutions in the automation industry. With its high measuring accuracy, flexible application options and well thought-out features, the YT353100 offers everything required for modern and efficient operation.
| Classification | Class |
|---|---|
| eClass-7.0 | 27200206 |
| eClass-7.1 | 27200206 |
| eClass-8.0 | 27200206 |
| eClass-9.0 | 27200206 |
| eClass-9.1 | 27200206 |
| ETIM-6.0 | EC001485 |
| ETIM-7.0 | EC001485 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 310 temperature sensors |
| packaging dimensions | 99 x 60 x 160mm |
| gross weight | 330g |
| 4,65kg CO₂e | |
| Customs tariff number | 85437090 |
| WEEE number | 40951076 |
