Dew point measurement - Adsorption dryer

YT900001

YT900001
List price
1.531,60 €
On demand
Dew point sensor, adsorption dryer -80...20°C, 123x30mm, G1/2", 10-36V DC, M12 plug connector 5-pin, stainless steel V2A, IP66, pressure resistance 50bar, 4-20mA, RS-485

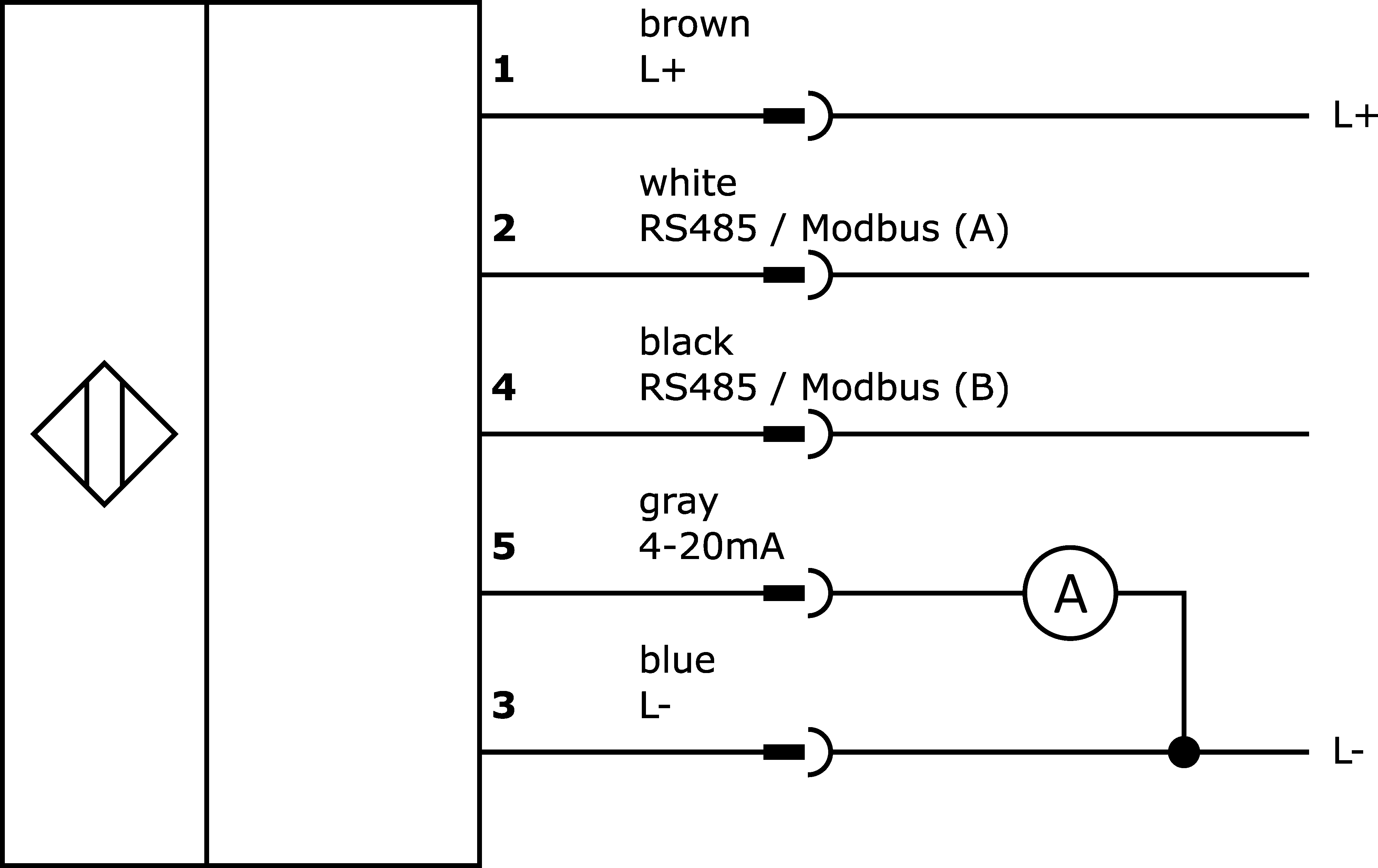

circuit diagram
dimensional drawing
Compare

Dew point measurement - Adsorption dryer

Dew point sensor for adsorption dryers for measuring residual moisture in compressed air and non-corrosive gases.

Electrical properties

Type of analog output
4 - 20mA
Type of electrical connection
Connector M12
Type of signal output
Three-wire
Measuring range, temperature
-80 - 20°C
Number of pins
5
Supported communication interface
1x RS485
Operating voltage
10-30VDC
Electrical connection
M12 5-pin plug connector

Mechanical properties

Type of process connection
G1/2 inch
Design
Cylinder, screw-thread
Pressure resistance
50bar
Length
123.2mm
Storage temperature
-40 - 80°C
Wrench size
27mm
Degree of protection (IP)
IP66
Housing material
Zinc die-cast
Sensing element material
Stainless steel
Diameter
30.2mm
dimensions
Ø30.2mm, 123.2mm long

Other properties

Ambient temperature
-20 - 70°C
Measuring accuracy
±1°C at 50 to -20°C, ±2°C at -20 to -50°C, ±3°C at -50 to -80°C
Reference medium / object
Air
You can find accessories for YT900001 in these product groups:

Connection technology

Cable sockets M12 5-wire shielded

VK205621
VK205621
Connection cable, 2m, M12 socket 5-pin angular, free cable end, 5x0.34mm², PUR (polyurethane), Ø6mm, 60V, -25-90°C,…
24,00 €
Your price
Available
VK205625
VK205625
Connection cable, 2m, M12 socket 5-pin straight, free cable end, 5x0.34mm², PUR (polyurethane), Ø6mm, 60V, -25-90°C,…
24,00 €
Your price
Scarce
VK505621
VK505621
Connection cable, 5m, M12 socket 5-pin angular, free cable end, 5x0.34mm², PUR (polyurethane), Ø6mm, 60V, -25-90°C,…
29,80 €
Your price
Available
VK505625
VK505625
Connection cable, 5m, M12 socket 5-pin straight, free cable end, 5x0.34mm², PUR (polyurethane), Ø6mm, 60V, -25-90°C,…
29,80 €
Your price
Available
VKA05621
VKA05621
Connection cable, 10m, M12 socket 5-pin angular, free cable end, 5x0.34mm², PUR (polyurethane), Ø6mm, 60V, -25-90°C,…
42,20 €
Your price
Available
VKA05625
VKA05625
Connection cable, 10m, M12 socket 5-pin straight, free cable end, 5x0.34mm², PUR (polyurethane), Ø6mm, 60V, -25-90°C,…
42,20 €
Your price
Available
VKAE5625
VKAE5625
Connection cable, 15m, M12 socket 5-pin straight, free cable end, 5x0.34mm², PUR (polyurethane), Ø6mm, 60V, -25-90°C,…
51,90 €
Your price
Available
VKB05621
VKB05621
Connection cable, 20m, M12 socket 5-pin angular, free cable end, 5x0.34mm², PUR (polyurethane), Ø5.6mm, 60V, -25-90°C,…
62,80 €
Your price
Available
VKB05625
VKB05625
Connection cable, 20m, M12 socket 5-pin straight, free cable end, 5x0.34mm², PUR (polyurethane), Ø5.6mm, 60V, -25-90°C,…
62,00 €
Your price
Available

Programming cable dew point sensor

VY000025
VY000025
RS485/USB connection cable, 5m, interface adapter, USB-A connector, M12 socket 5-pin straight
380,20 €
Your price
On demand

Other sensors

Measuring chamber for dew point sensor

AT000009
AT000009
Accessories, measuring chamber for dew point sensor, pressure range 2...16 bar, plug nipple NW 7.2
249,30 €
Your price
On demand
AT000010
AT000010 - NEW
Accessories, measuring chamber for dew point sensor, granulate dryer, pressure range -1...16bar, plug connection 6mm
195,00 €
Your price
On demand
Classification Class
eClass-7.0 27151106
eClass-7.1 27151106
eClass-8.0 27151106
eClass-9.0 27151106
eClass-9.1 27151106
ETIM-6.0 EC002862
ETIM-7.0 EC002862
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 725 compressed air and leakage measurement
packaging dimensions
2,35kg CO₂e
Customs tariff number 90258040
WEEE number 40951076
