Dew point measurement - Refrigeration dryer

YTTS0002

YTTS0002
List price
1.812,00 €
On demand
Dew point measurement set for refrigeration dryers, LED process display, 118x92x133mm, 230VAC, 2x relays, 4-20mA, terminal, IP44, plastic, programmable

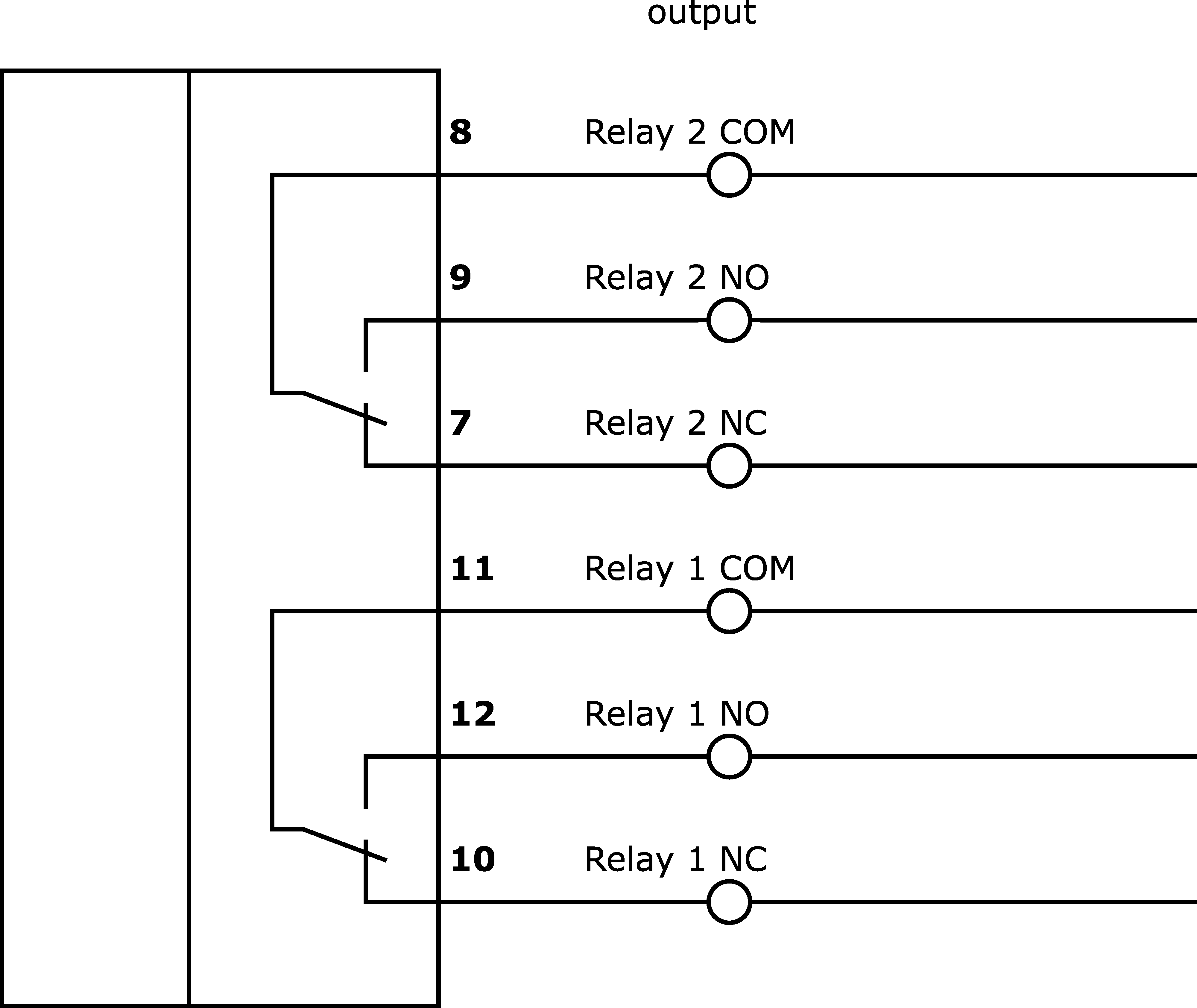

circuit diagram
Compare

Dew point measurement - Refrigeration dryer

Dew point sensor for refrigeration dryers for measuring residual moisture in compressed air and non-corrosive gases, including process display and measuring chamber.

Electrical properties

Type of switching function
Relay contact
Type of analog output
4 - 20mA
Type of analog input
4 - 20mA
Rated switching current
3mA
Setting procedure
Parameterization
Transducer power supply voltage
24V
Transducer power supply current
100mA
Type of transducer power supply voltage
DC
Switching voltage
250V
Resistance of current input
100Ohm
Display
LED display
Number of alarm outputs
2
Number of analog output channels
1
Number of analog input channels
1
Operating voltage

Mechanical properties

Width
118mm
Height
133mm
Length
92mm
Storage temperature
-20 - 80°C
Mounting method
Surface mounted (plaster)
Degree of protection (IP)
IP44
Housing material
Plastic
dimensions

Other properties

Ambient temperature
-10 - 60°C
Classification Class
eClass-7.0 27151106
eClass-7.1 27151106
eClass-8.0 27151106
eClass-9.0 27151106
eClass-9.1 27151106
ETIM-6.0 EC002862
ETIM-7.0 EC002862
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 725 compressed air and leakage measurement
packaging dimensions 210 x 210 x 255mm
gross weight 1,817g
3,33kg CO₂e
Customs tariff number 90258040
WEEE number 40951076
