Hygiene & infection protection - Room climate monitoring

YY770002

YY770002
List price
950,10 €
On demand
Sensor pressure, temperature, humidity, 77x168x68mm, 18-30V DC, 2x relay contact NC, 2x 4-20mA, M12 plug connector 5-pin, plastic PC, with display, parameterization, RS-485
including Holder

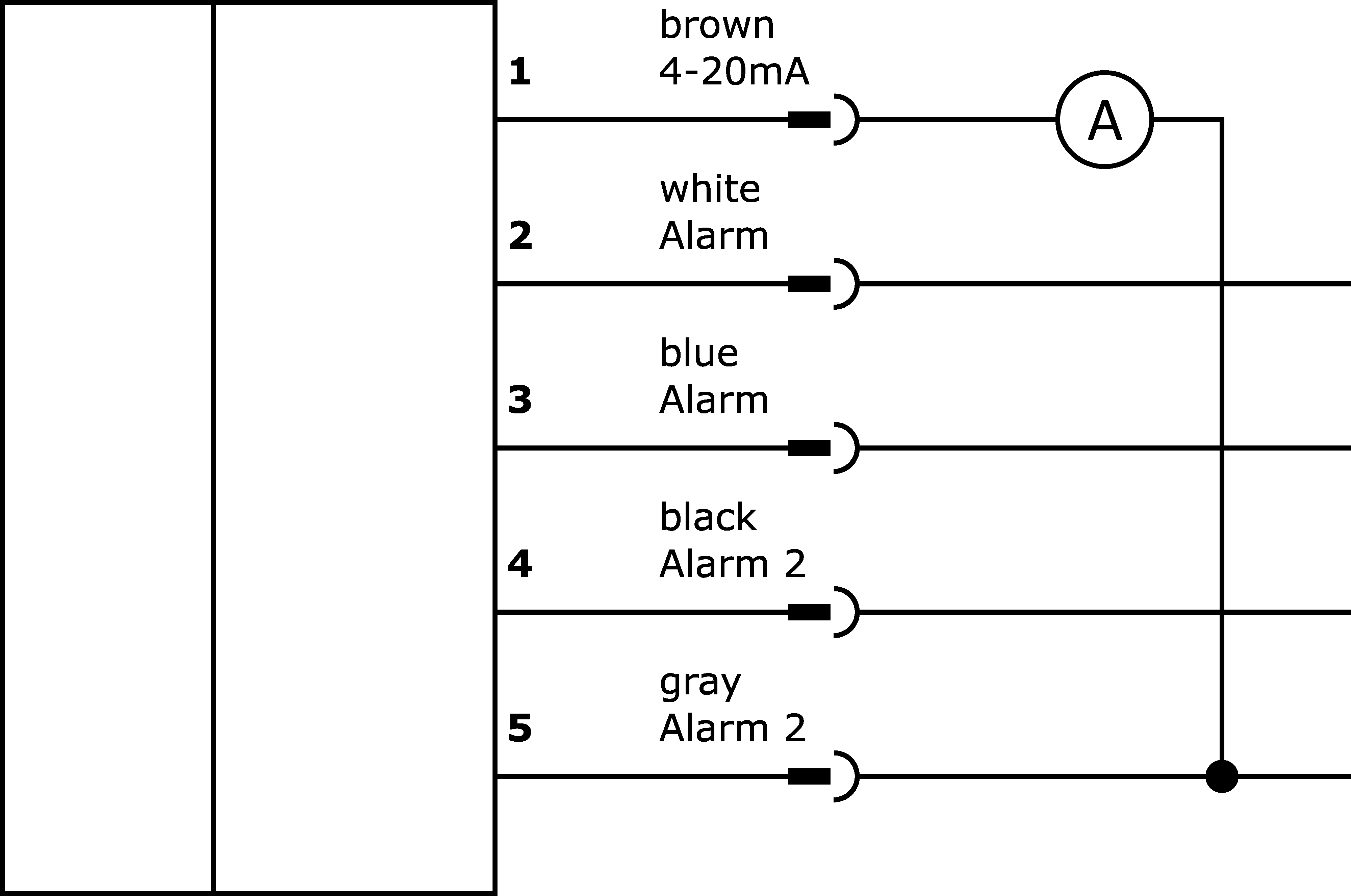

circuit diagram
dimensional drawing
Compare

Hygiene & infection protection - Room climate monitoring

Environmental conditions in the room - absolute pressure, room temperature, air humidity

Electrical properties

Type of switching function
Normally closed contact (NC)
Type of alarm output
Relay contact
Type of analog output
4 - 20mA
Type of electrical connection
Connector M12
Rated switching current
500mA
Setting procedure
Parameterization
Power consumption
6.5VA
Measuring range, temperature
-20 - 60°C
Measuring range pressure
0.3 - 1.1bar
Number of pins
5
Switching function of the alarm output
Normally closed contact
Switching voltage
60V
Supported communication interface
Modbus RTU
Measuring accuracy of temperature
±1.0 K (0-60°C), ±1.25 K (-20-0°C)
Display
TFT display
Number of alarm outputs
2
Number of analog output channels
2
Measuring range relative humidity
5 - 95%
Short circuit protection, Reverse polarity protection
Operating voltage
Electrical connection

Mechanical properties

Design
Cuboid
Width
76.69mm
Height
167.6mm
Length
67.57mm
Storage temperature
-40 - 80°C
Degree of protection (IP)
IP65
Housing material
Plastic PC
dimensions

Other properties

Relative air humidity (non-condensing)
0 - 90%
Ambient temperature
-20 - 60°C
Measuring accuracy of relative humidity
±3%
Measuring accuracy of pressure
±17mbar (20°C)
Version
Pressure, temperature and air humidity in the room
