Time delay relay - Multi-function

ZM565453

ZM565453
List price
126,30 €
amount price discount
1 126,30 € –
5 122,51 € 3% / 3,79 €
10 119,99 € 5% / 6,32 €
20 116,20 € 8% / 10,10 €
50 111,14 € 12% / 15,16 €
Available
Time delay relay – multifunction, 75x110x22mm, 0.1-18000s, 24-240V AC, 24-240V DC, 2x Relay contact Change-over contact, Clamp 12pin, IP20, Plastic PC, Potentiometer

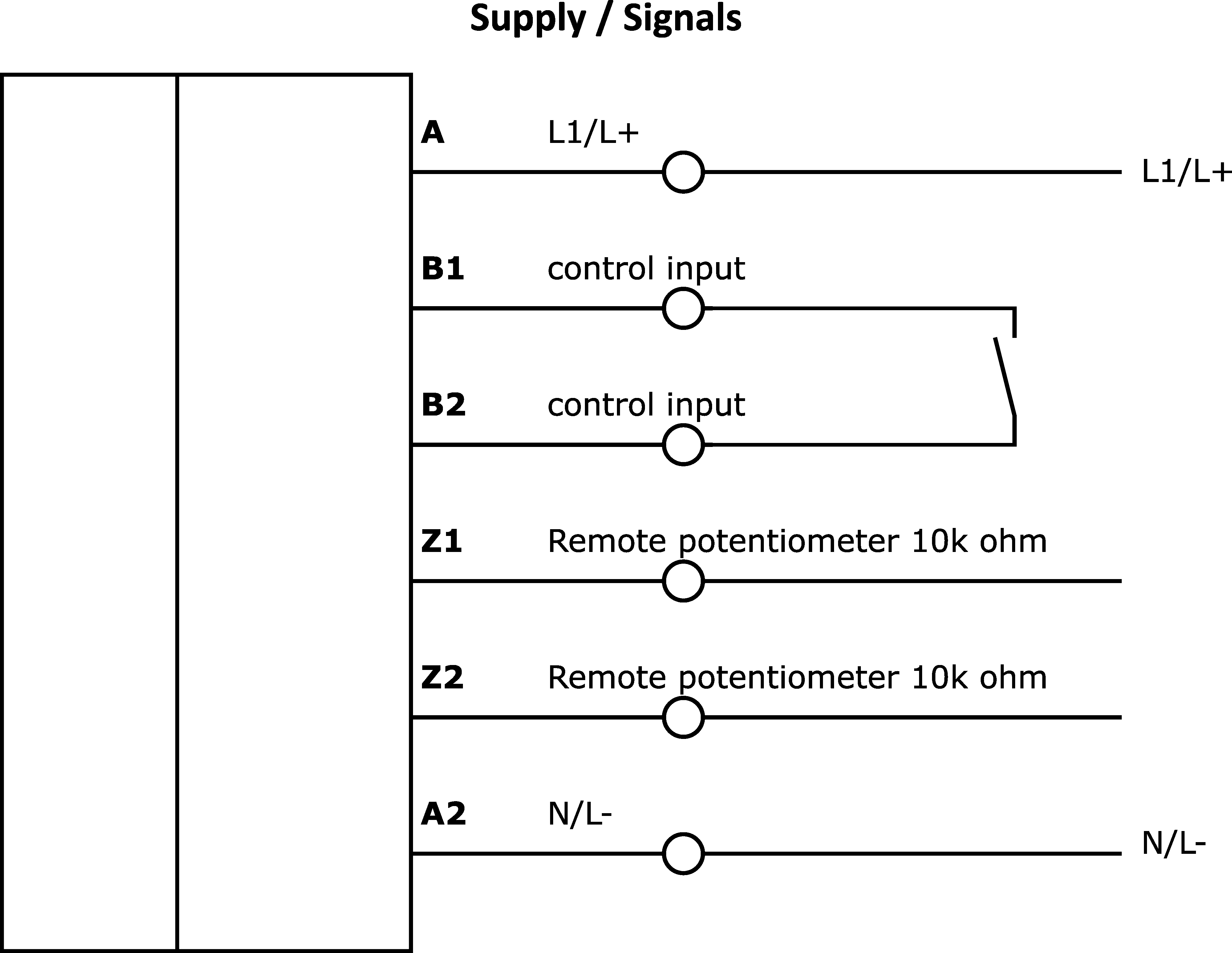

circuit diagram
dimensional drawing
3D model
Compare

Time delay relay - Multi-function

Electrical properties

Number of contacts as change-over contact
2
Number of switching outputs
2
Number of time ranges
8
Type of signal processing
Time delay relay – multifunction
Type of switching function
Change-over contact (NO/NC)
Type of electrical connection
Clamped terminal connection
Type of switching output
Relay contact
Turn-off delay
0 - 18,000s
Rated switching current
3,000mA
Readiness delay
110ms
Setting procedure
Manual adjustment, Potentiometer (external)
Power consumption
5VA
Max. switching current
7A
Number of pins
12
Switching voltage
240V
Voltage type for actuation
AC/DC
Temperature drift over entire measuring range
0.1%
Repeat accuracy of setting time
10ms
Time range
0.1 - 18,000s
Decay time
20ms
Display
LED display
Operating voltage
Electrical connection

Mechanical properties

Width
22.5mm
Height
75mm
Length
110mm
Mounting method
Top hat rail
Degree of protection (IP)
IP20
Housing material
Plastic PC
dimensions

Other properties

Range of functions
Ambient temperature
-20 - 60°C
Classification Class
eClass-7.0 27371790
eClass-7.1 27371790
eClass-8.0 27371605
eClass-9.0 27371605
eClass-9.1 27371605
ETIM-6.0 EC001439
ETIM-7.0 EC001439
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 600 time delay relay
packaging dimensions 77 x 25 x 123mm
gross weight 150g
3,22kg CO₂e
Customs tariff number 85364900
WEEE number 40951076
