| amount | price | discount |
|---|---|---|
| 1 | 129,00 € | – |
| 5 | 125,13 € | 3% / 3,87 € |
| 10 | 122,55 € | 5% / 6,45 € |
| 20 | 118,68 € | 8% / 10,32 € |
| 50 | 113,52 € | 12% / 15,48 € |

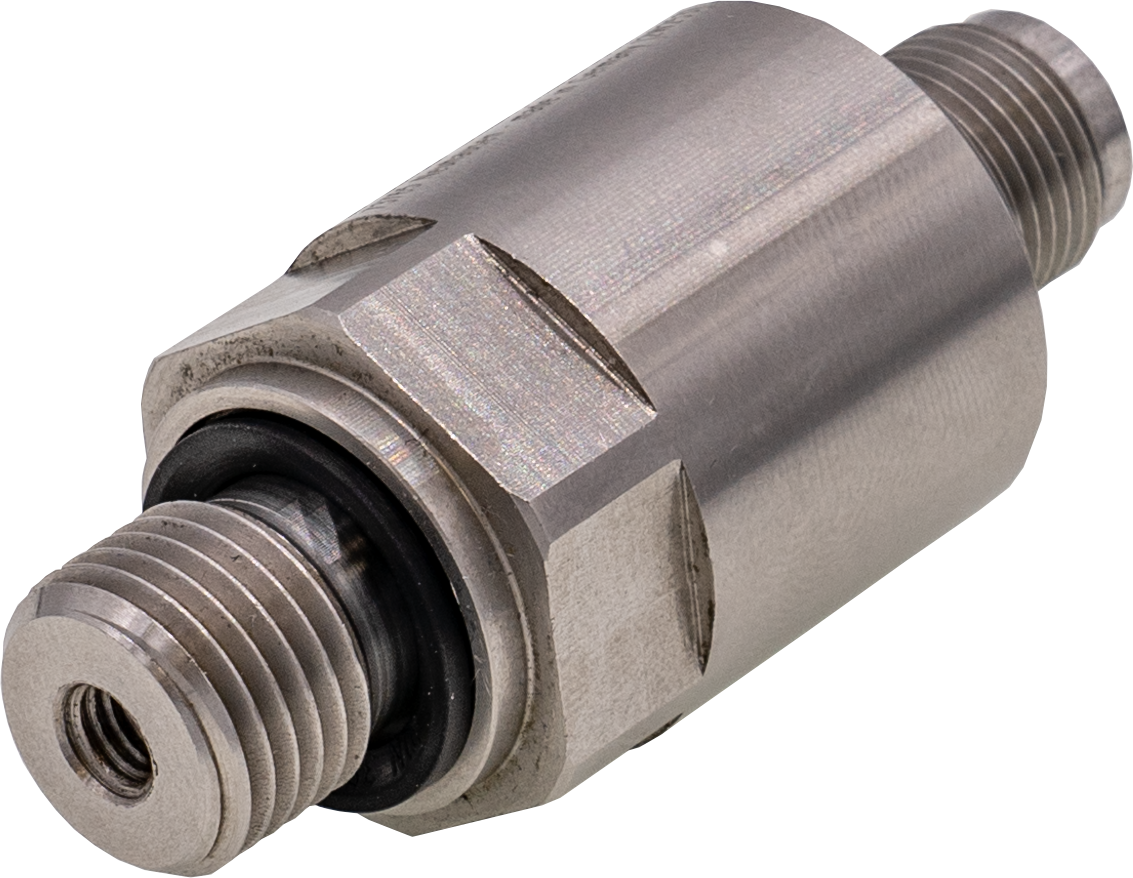

The indestructible pressure transmitters of the DT24 series with ceramic measuring cell have been designed for use with all gaseous and liquid media of fluid group 2. The measured values can be easily output via the integrated analog output (4...20mA) on a PLC (programmable logic controller) or an external display device. The pressure transmitters impress with their very low long-term drift.
Advantages
- robust version in stainless steel housing (degree of protection IP67) and ceramic measuring cell
- media temperature range (-25 °C...+100 °C)
- short response time (< 3 ms)
- low long-term drift (≤0.1% per year)
| Classification | Class |
|---|---|
| eClass-7.0 | 27200614 |
| eClass-7.1 | 27200614 |
| eClass-8.0 | 27200614 |
| eClass-9.0 | 27200614 |
| eClass-9.1 | 27200614 |
| ETIM-6.0 | EC011478 |
| ETIM-7.0 | EC011478 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| MTTF value | 2,236Jahr(e) |
| IPF Product Group | 361 pressure sensors (diverse) |
| packaging dimensions | 43 x 43 x 105mm |
| gross weight | 85g |
| 1,67kg CO₂e | |
| Customs tariff number | 90262020 |
| WEEE number | 40951076 |
