Pressure sensors - Differential pressure sensors

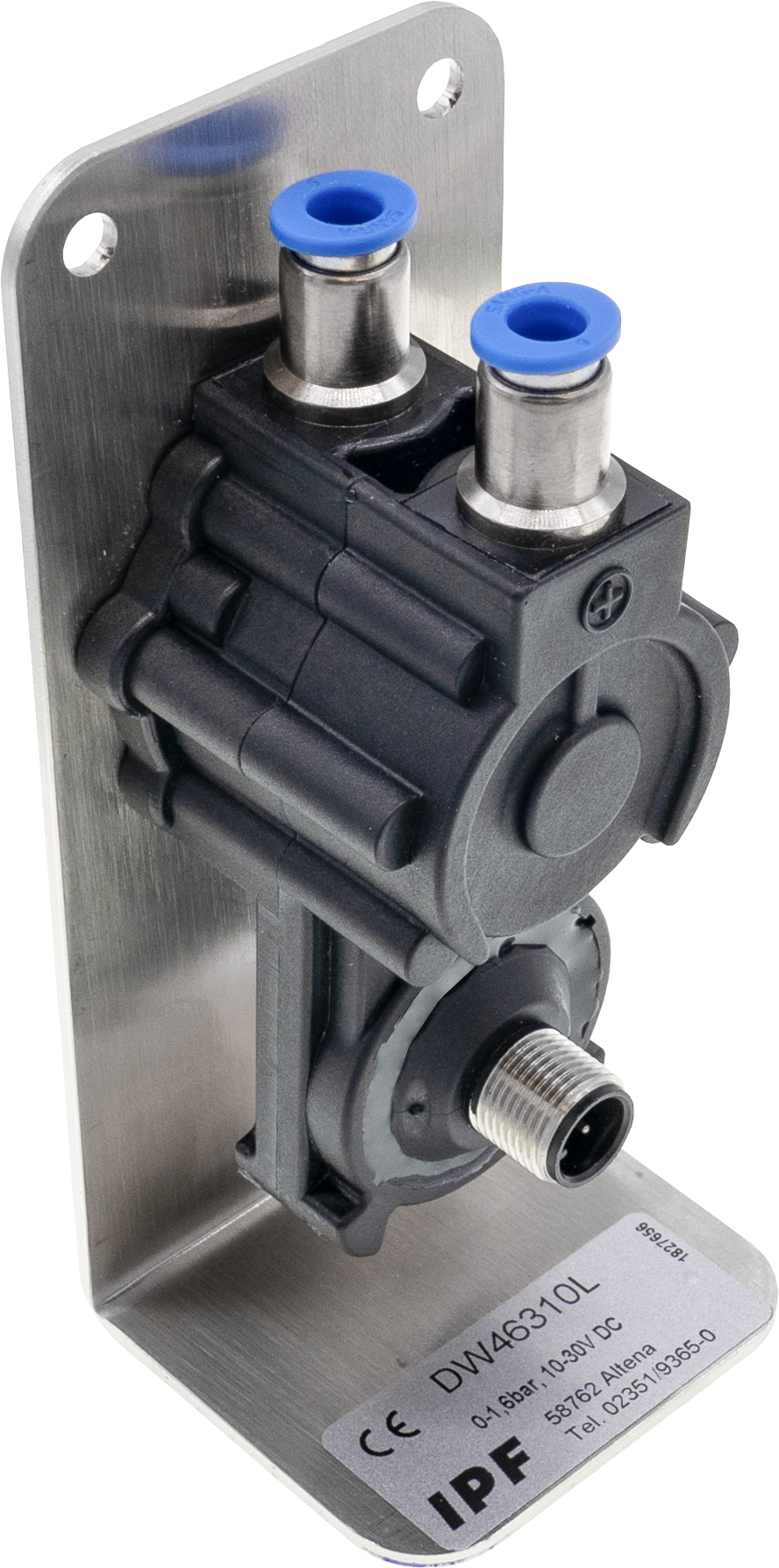

The article "DW46310L" is a differential pressure sensor that belongs to the subgroup of differential pressure sensors. This type of sensor enables the mechanical integration of two systems, with one serving as a reference point and the other providing the measurement result. Differential pressure sensors such as the DW46310L belong to the upper group of pressure sensors, which couple two systems via a diaphragm and convert the pressure difference into an electrical signal. The DW46310L sensor is connected via a G1/8 inch process connection and scales the pressure range from 0 to 1.6 bar to a current output of 4 - 20 mA.
